V560 Series High Performance Closed-Loop Vector Inverter User Manual
2: Continuous cycling mode
As the figure shown, the frequency inverter starts next cycle after automatically after it finishes a cycle until it
receives stop instruction.
3: Continuous cycle stop mode
Basic operation mode is the same as mode 2 and its difference is that after frequency inverter operates a
stage speed, it firstly lowers the output frequency to zero according to specified deceleration time, then
outputs next stage's frequency.
4: Keeping the final value
As the figure shown, the frequency inverter will keep the last stage's operation frequency and direction
automatically after it finishes a cycle.
5: Keeping the final value stop mode
Basic operation mode is the same as mode 4 and its difference is that after frequency inverter operates a
stage speed, it firstly lowers the output frequency to zero according to specified deceleration time, then
outputs next stage's frequency.
_ X _ _ : Selection of breakpoint/stop recovery mode
0: Restore running at the first stage

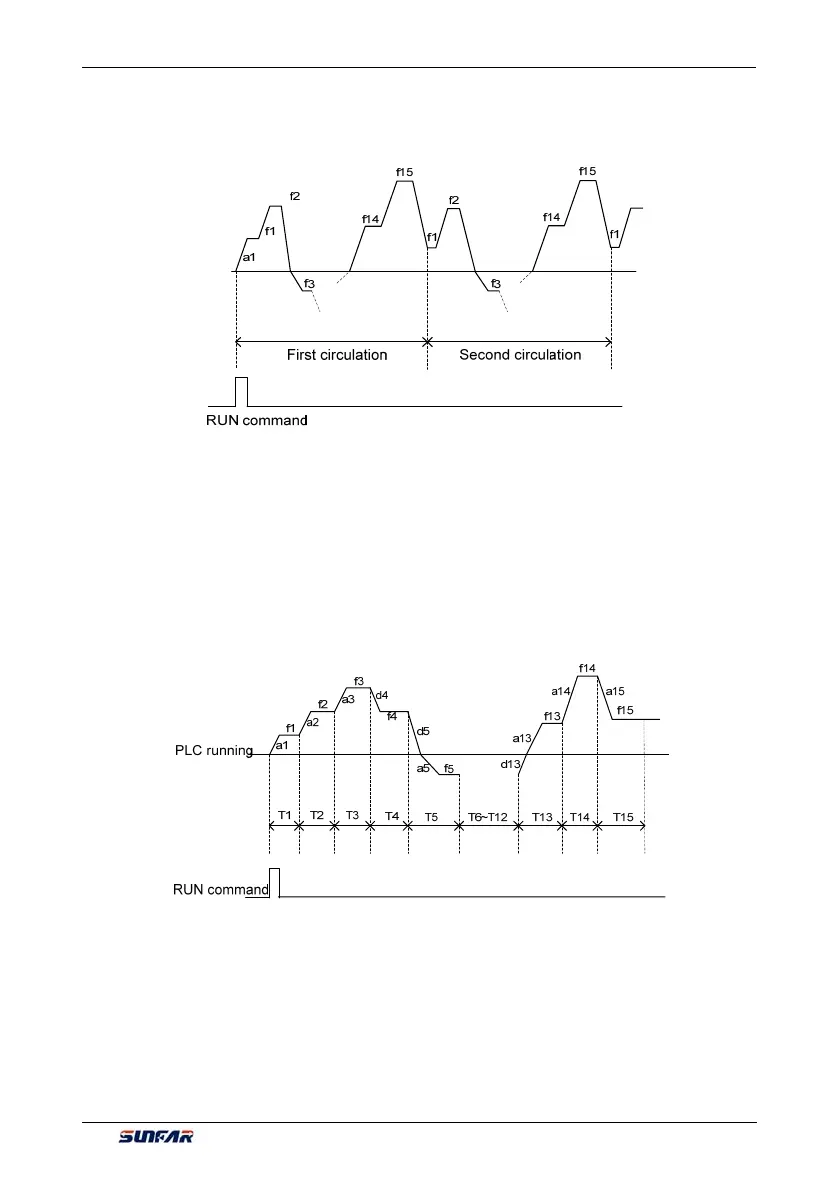

Figure 7-48-D Continuous cycling mode of simple PLC operation
Figure 7-48-E Simple PLC operation keeping the final value mode
