PID setting
Time
Time
Deviation limiting range [F7.0.22]
PID feedback
Output frequency
For singlepolarity of PID, when output
frequency is 0, the directiondoesn't
change
Time
Time
Permitted limiting value
of deviation [F7.0.22]
Output frequency
PID feedback
For dual polarity of PID control, output
frequency can change the phase sequence
F7.0.22 Permitted static deviation
(relative 100% setting)
Setting range: 0.0~20.0% Factory default:5.0
Controller output value is the permitted maximum deviation amount with given value of controller. When
feedback value is within the range of maximum deviation range, the controller stops adjusting. Proper setting
of his function contributes to covering the accuracy and stability of output of system.

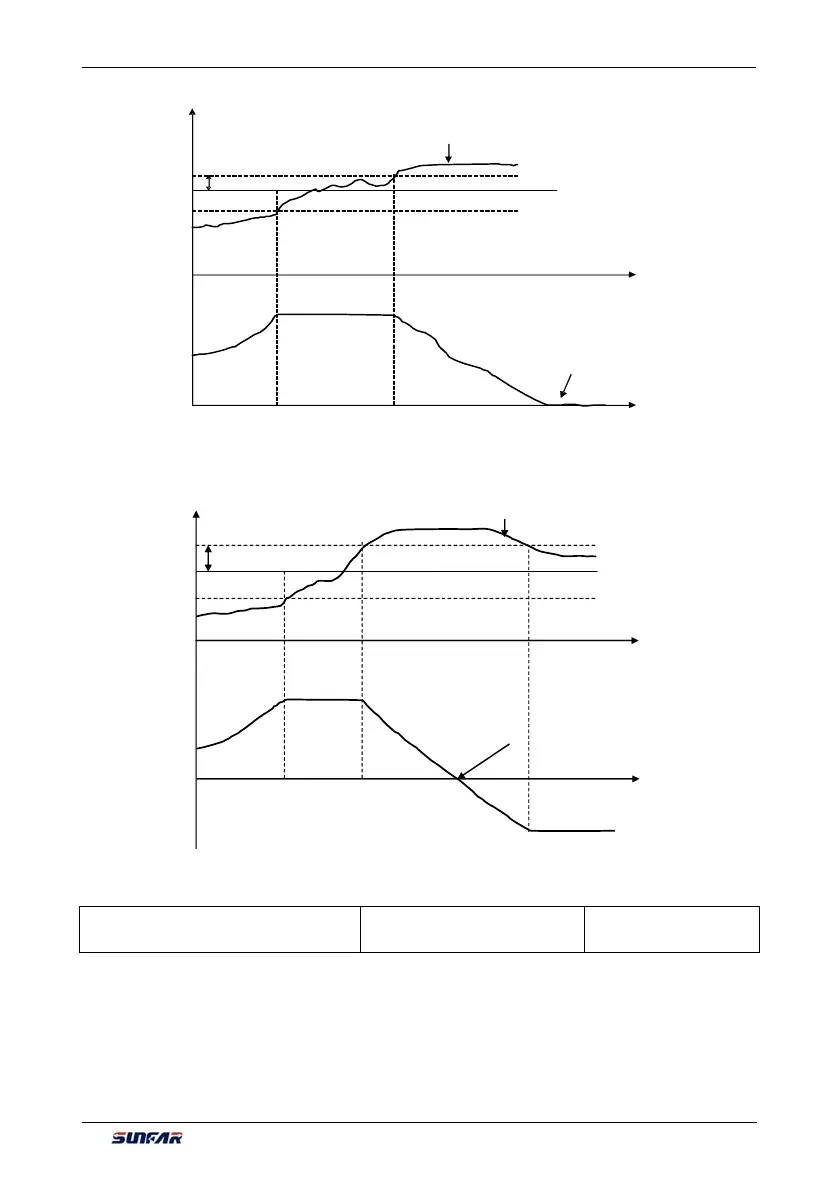

Figure 7-55-B Dual polarity of PID control mode
Figure 7-55-A Single polarity of PID control mode
