F8.0.00 Revolution setting channel Setting range: 0~10 Factory default: 0
This parameter is used to define revolution setting channel. Selecting mode of revolution setting channel is
similar with that of frequency setting source channel. Refer to instruction of F0.2.25 parameter.
0: Set by frequency setting parameter (F0.1.16)
Revolution set value is obtained from transition of frequency set value selected by F0.1.16: Revolution
setting=frequency set value*60/pairs of motor polarity
1: Keypad reference (F8.0.03)
Value of F8.0.03 is set as revolution set value, automatically preserved when outage.
2: Keypad potentiometer
Revolution set value is given by revolving panel shuttle potentiometer.
3: Analog input AI1
4: Analog input AI2
5: Analog input AI3 (Bipolarity)
6: Frequency signal input (Fin)
Take the pulse signal input by pulse input port Fin as revolution set value.
7: MODBUS Fieldbus set value 1 (relative setting)
8: MODBUS Fieldbus set value 2 (absolute setting)
9: Virtual analog input SAI1
10: Virtual analog input SAI2
Note: Select revolution setting channels 3~7, upper and lower limiting parameters shall be correctly selected
F8.0.01 and F8.0.02.
F8.0.01 Rotational speed
minimum
Setting range: 0~60*[F0.1.21]/
pairs of motor poles (rpm)
Factory default: 0
F8.0.02 Rotational speed
maximum
Setting range: 0~60*[F0.1.21]/
pairs of motor poles (rpm)
Factory default: 1500

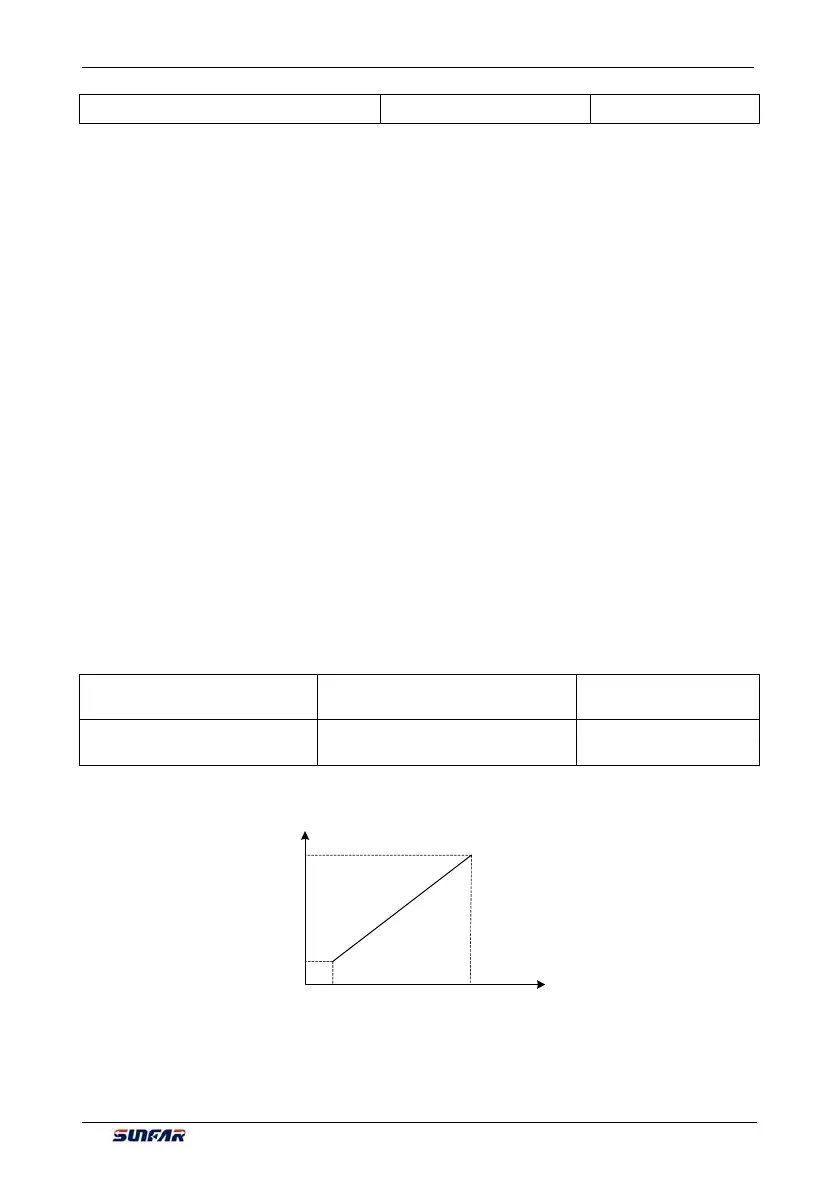

This parameter is used to set the relationship curve of set value and corresponding motor revolution when
revolution channel is analog input port of this parameter.
Motor revolution
0
Revolution
channel setting
Maximum
set value
Minimum
set value
[F8.0.01]
[F8.0.02]
Figure 7-61 Corresponding relation of revolution set value and motor revolution
