CA-500 Series S/M 2-5 Revised December 2001

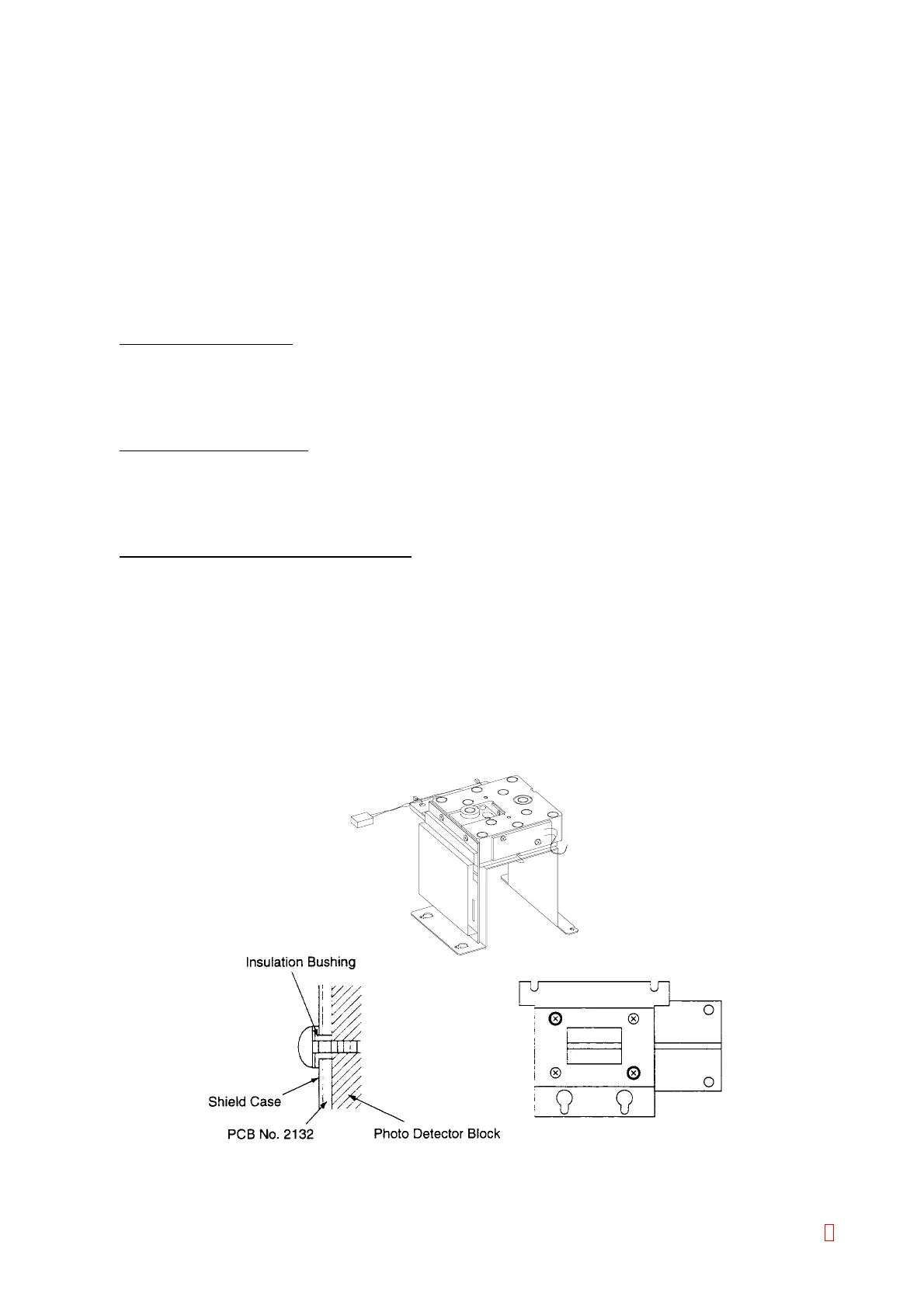

2.4 DETECTOR BLOCK
2.4.1 Outline
The CA-500 detector block is provided with 4 scattered light detecting ports, 1 transmitted light detecting port,
and 6 incubation wells.
The detector block is kept at 37°C by the heater and the semiconductor temperature sensor.
2.4.2 Specifications/Functions
(1) Analysis System
Scattered Light Detection
Detector Unit: 4 ports
Light Source: LED H-2000L (peak wavelength 660 nm)
Photo Diode: S1133 silicon diode
Filter: R-60 (band-pass: over 600 nm)
Transmitted Light Detection
Detector Unit: 1 port
Light Source: LED NLPB-500
Photo Diode: S1133 silicon diode
Filter: 405 nm band-pass filter
Transmitted Light Detection (Immunoassy)
Detector Unit: 1 port
Light Source: LED TLGE159P
Photo Diode: S1133 silicon diode
Filter: 575 nm band-pass filter
(2) Other
Incubation well: 6 wells
Heater: 28 W film heater
Overheat protection: 76°C thermal fuse
8
2.4.3 Assembly Diagram
To Next Page
