APPENDIX C DISASSEMBLY
C.1 Detector Unit Assembly
(1) Remove Light Shield Cover with Hinge from Top Cover. (Also remove the screws for the stop bar for
Light Shield Cover.)
(2) Remove two screws fixing Left Side Cover and remove the cover by lifting upward.
(3) Remove Reagent Stage. (by removing 4 screws)
(4) Remove Detection Stage. (by removing 2 screws)
CAUTION: Be careful not to hit the Detection Stage to the tip of the pipette.
2
3
4
Detection Stage
Reagent Stage

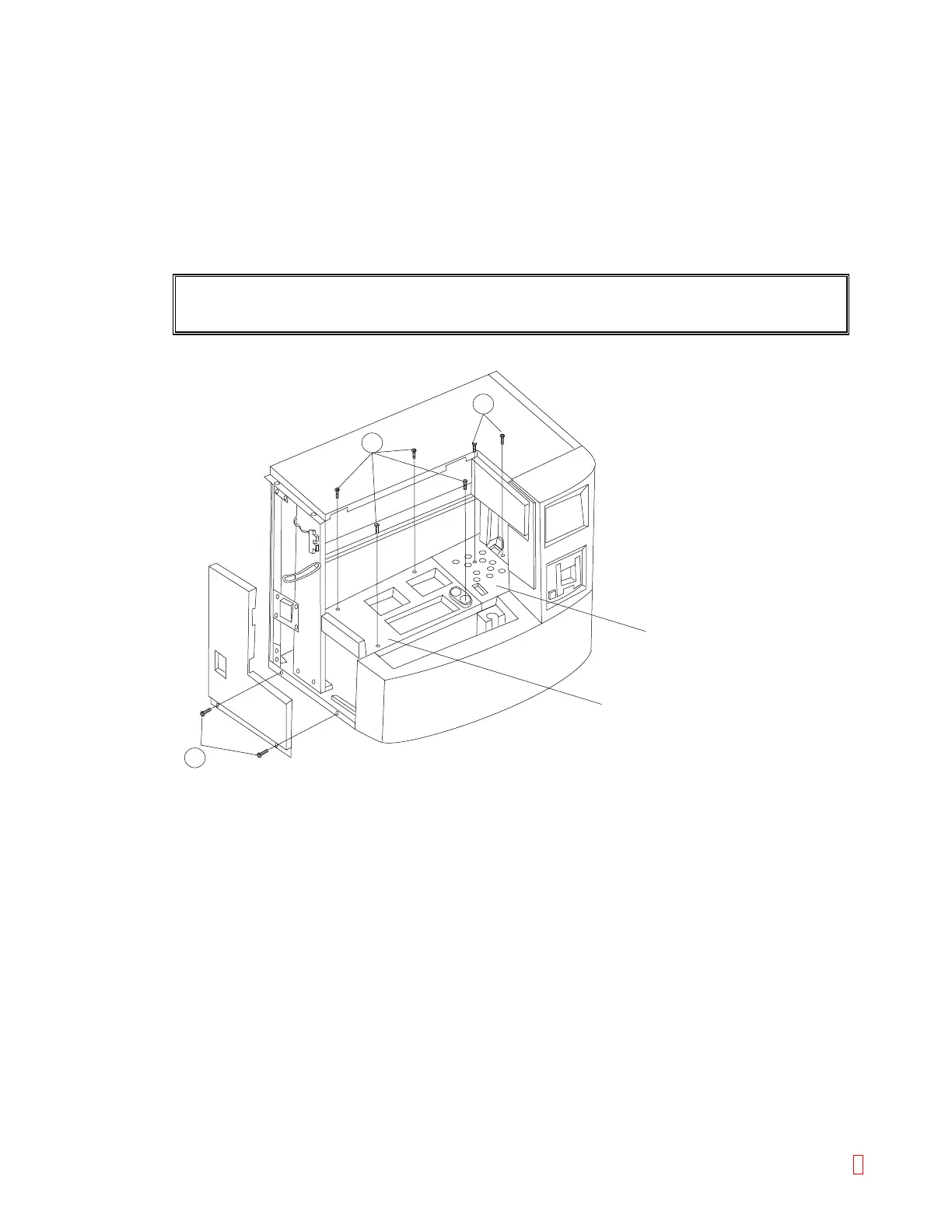

Figure C-1: Removing Reagent Stage and Detection Stage
8 CA-500 Series S/M C-1 Revised December 2001
