CA-500 Series S/M 4-13 Revised December 2001
4.3.4 Position Adjustment Procedure of Pipette (“[1]blood 1”, “[2]blood 10”, and “[3]blood_stat”)
(1) XYZ Adjustment
CAUTION: 1) When setting the sample rack, be sure that the plate is inserted to the groove of the rack
correctly. It may cause the pipette to be bent.

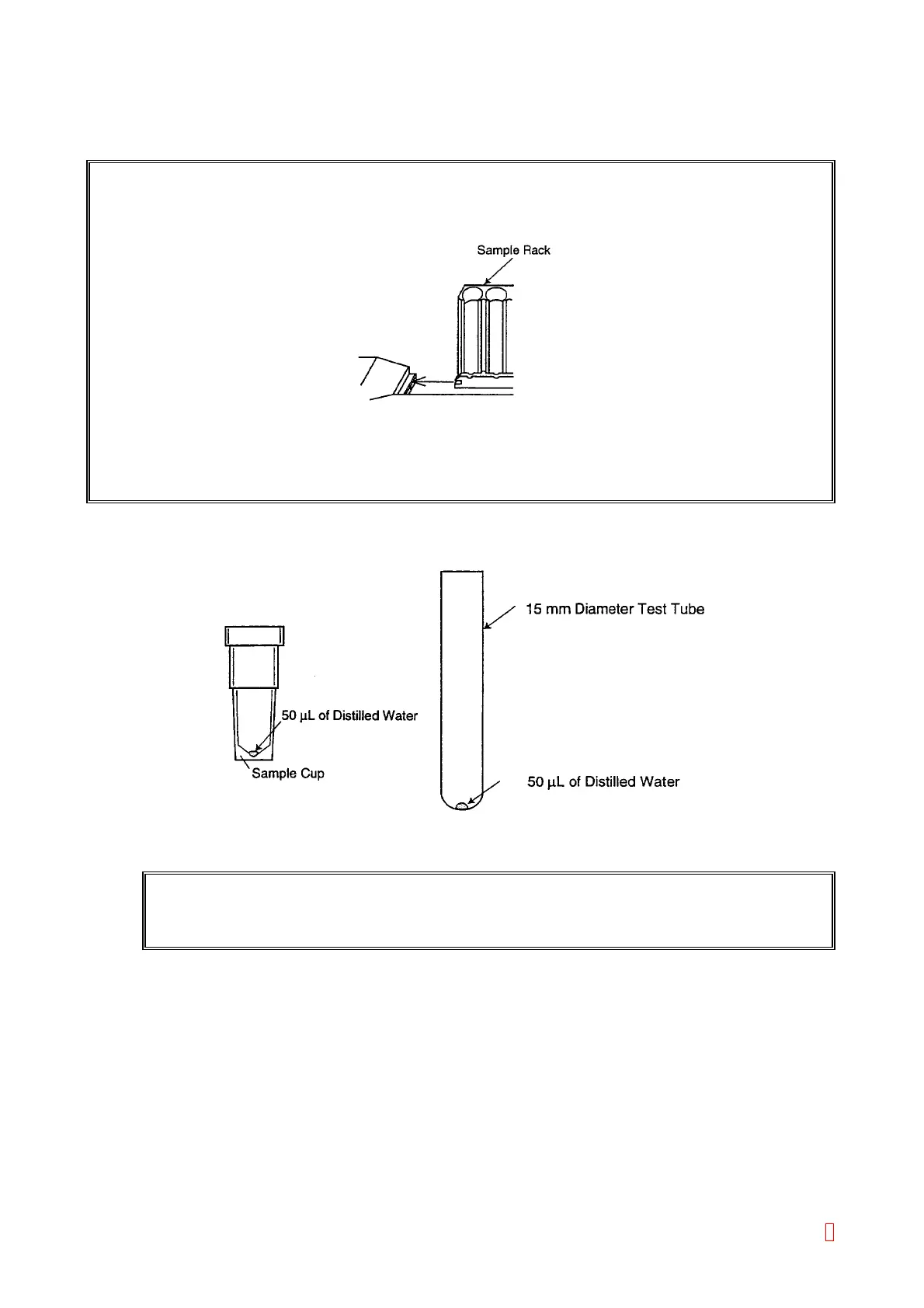

Figure 4-3-3: Setting Sample Rack
2) When setting the 15-diameter tube into the sample rack, set the tube straight into the
sample rack.
1) Pour 50 µL of distilled water into the 4 mL sample cup or 50 µL of distilled water into the 15 mm
diameter test tube and set it into the sample rack No.1. (Set a cup or a tube for the customer’s use.)
Figure 4-3-4: Sample Cup and Test Tube with Distilled Water
CAUTION: If the customer uses test tube, do not set the sample cup. The sample probe
descends insufficiently when the z axis is adjusted by a sample cup.
2) Verify that the “[1] blood 1” is shown on the left center of the screen. If not, change to “[1] blood 1” by
using [Pos. -] and [Pos. +] keys.
3) Move the pipette to the setting position by using [XY TEST] key.
