CA-500 Series S/M 4-12 Revised December 2001
(13) [XY ORG] Key: Return XY drive to the home position.
When this key is pressed, Y axis then X axis returns to the home position after Z axis returns to the home
position.
(14) [Pos. -], [Pos. +] Key: Switch setting position from [1] to [29].
(15) Either [Pipette] or [Catcher] Key: Move the pipette or the catcher. Moves 1 pulse by 1 press.
• Pipette Adjustment: [Pipette UP], [Pipette DOWN]
• Catcher Adjustment: [Catcher UP], [Catcher DOWN]
(16) [Arrow] Keys: Move 1 pulse by 1 press. (0,085 mm/pulse)
• [Å]: Move X axis to the left (away from the home position)
• [Æ]: Move X axis to the right (toward the home position)
• [n]: Moves Y axis toward the home position.
• [p]: Moves Y axis away from the home position.
(17) [Enter Pulses] Key: Press to enter pulses manually using the numeric keys.
(18) Display number of pulses stored in EEPROM to be updated by fixing the set value.
(19) [Z TEST] key: Press to move to the Z position currently set. This is not for changing the set value, but for
check only.
(20) [MODE CHANGE] key: Press to change modes.
Fine Adjustment (Individual position) Mode: Set each position for 29 points.
Basic Position Adjustment Mode: Set the basic position for each block.
By this setting, the accompanying position within the block can be set automatically.
Detection Well
Immunoassy
[CH6]

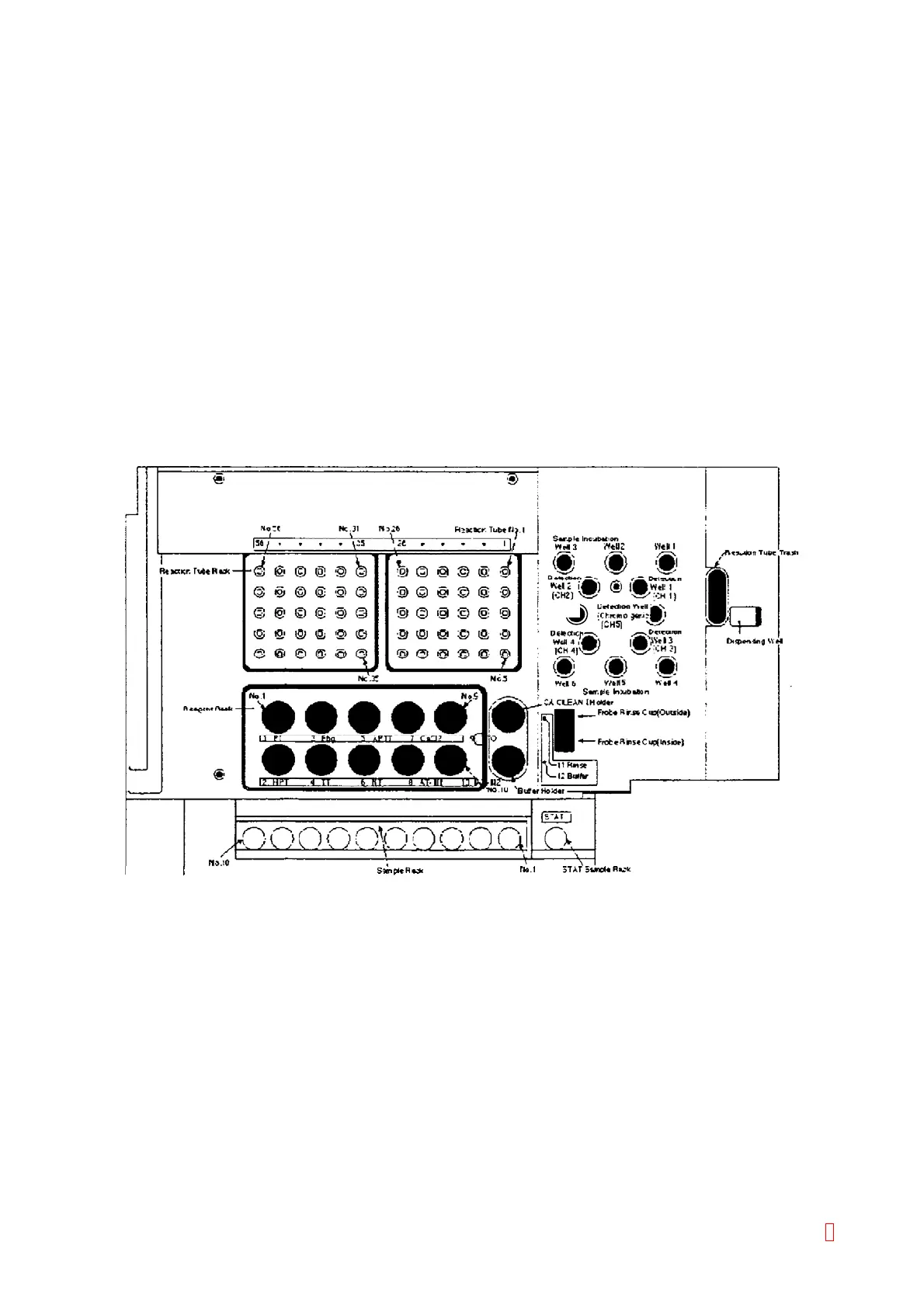

Figure 4-3-2: Table Positions
8
