2.10 PUMP UNIT (PRESSURE PUMP/VACUUM PUMP COMPLETED PARTS)
2.10.1 Outline
The pump unit comprises the pressure pump that applies positive pressure into the bottle to feed rinse solution
from the rinse bottle into the system and the vacuum pump that applies vacuum into the bottle to feed out
waste from the system into waste bottle.
2.10.2 Specifications/Functions
(1) Pressure Pump
Structure:
Pressure: 250 mmHg as adjusted 19
(2) Vacuum Pump
Structure:
Vacuum: Approx. 180 mmHg as not adjusted 19

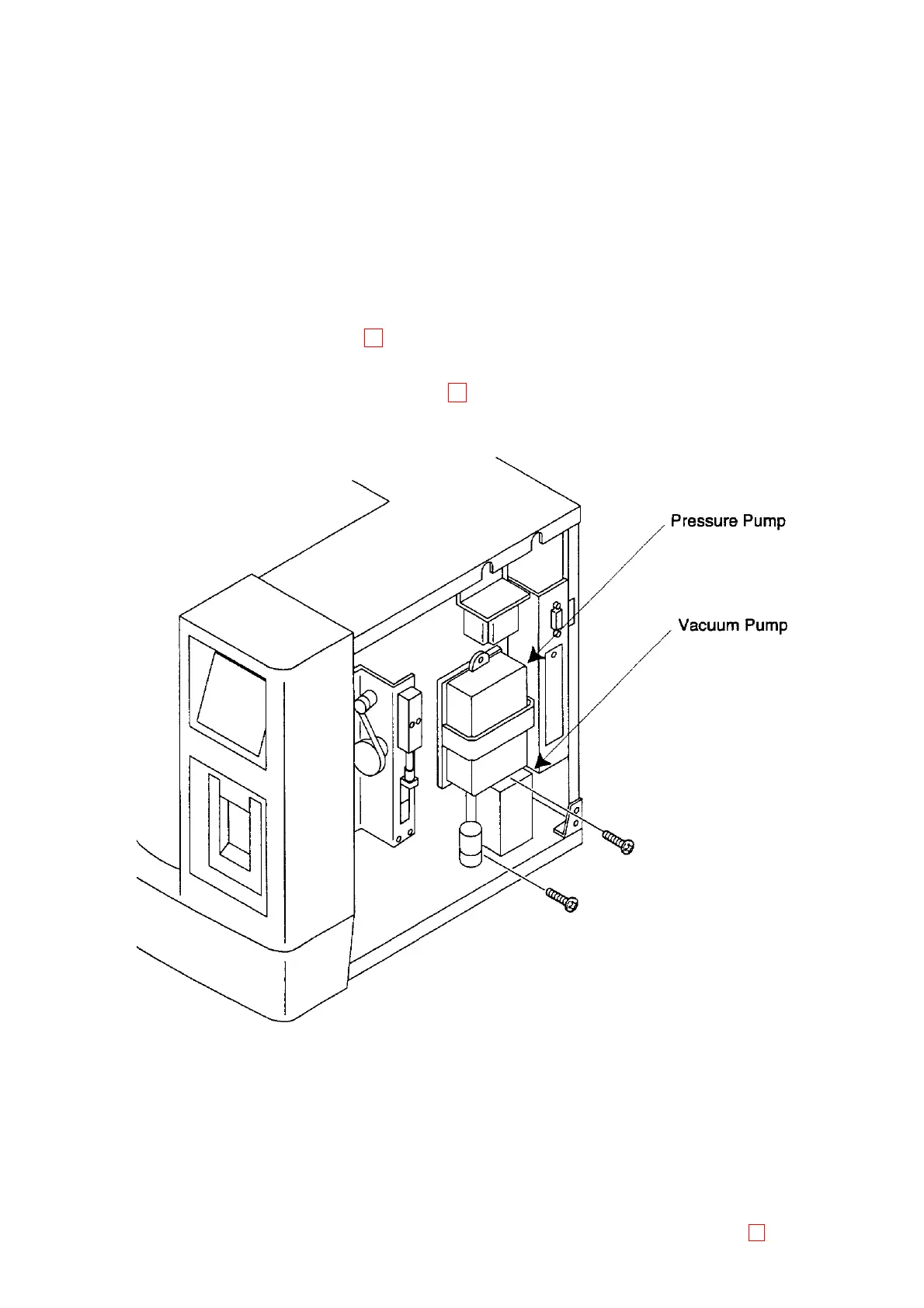

2.10.3 Assembly Diagram
