B.2 Installation Space
To make maintenance and service easy, give consideration to heat radiation by the instrument, provide at least
50 cm clearance between the wall and the instrument’s side panels, rear and top panels.
Reference: maximum power consumption
Table B-2:
MODEL CA-510 CA-520 CA-530 CA-540 CA-550 CA-560
MAIN UNIT 310VA 320VA 380VA 400VA 380VA 400VA
487
470
540
The power cord is 1.8 m long
Table B-3:
Width (mm)
Depth (mm) Height (mm) Weight (kg)
Main Unit 540 470 487 Approx. 45

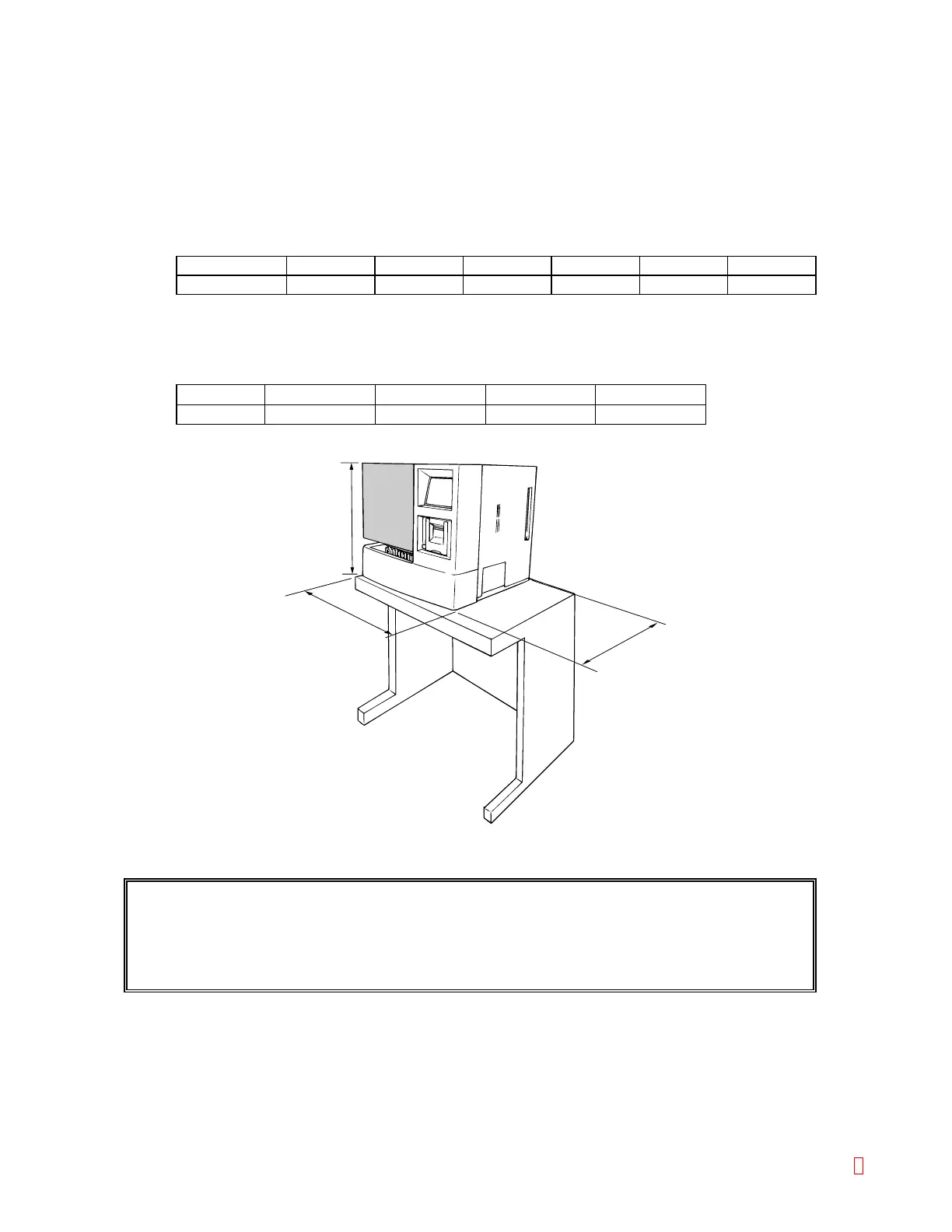

Figure B-1: Instruments Dimensions
CAUTION: • Be sure to place the rinse bottle and waste bottle on the base which the instrument
is set.
• Do not put them on the instrument, or there is a possibility the instrument may
break down or fail to produce correct results.
CA-500 Series S/M B-2 Revised December 2001 8
