CA-500 Series S/M 2-6 Revised December 2001
2.5 REAGENT COOLING UNIT
2.5.1 Outline
To cold-store reagents, electronic cooling element (Peltier element) cools the 4-hole reagent set.
2.5.2 Specifications/Functions
Cooling source: Peltier element (1 piece, DC 12 V applied)
Cooling: 1 unit of DC fan and fin-type radiator
Temperature detection: Semiconductor temperature sensor - 1 unit

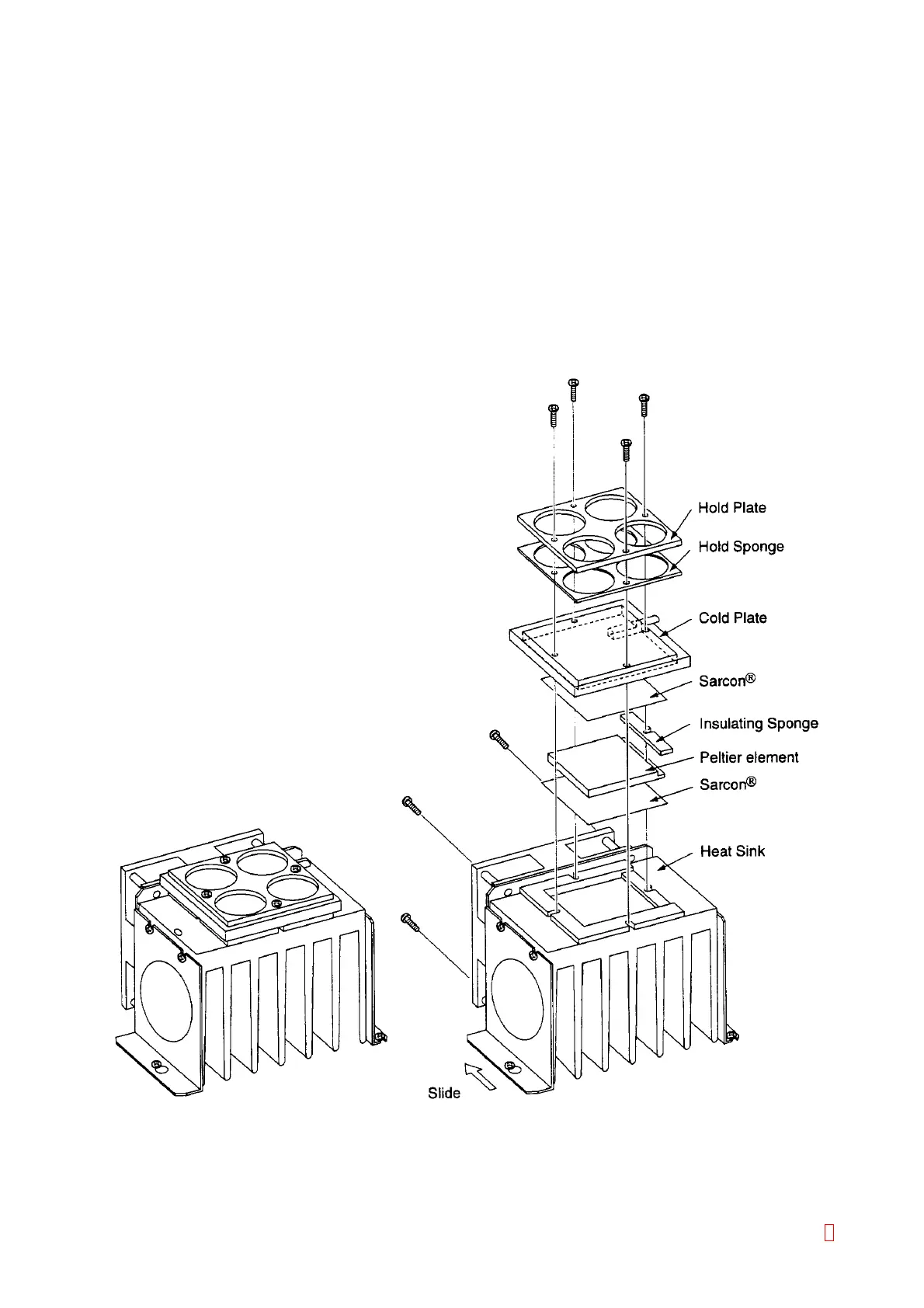

2.5.3 Assembly Diagram
8
To Next Page
