3.2.2 Power Supply System
CA-500 Power Supply System is composed of the Power Transformer, Switching Regulators and PCB No.
4086 as shown in the following figure. (Respective voltages indicated with balloon numbers are explained
in the descriptions.)

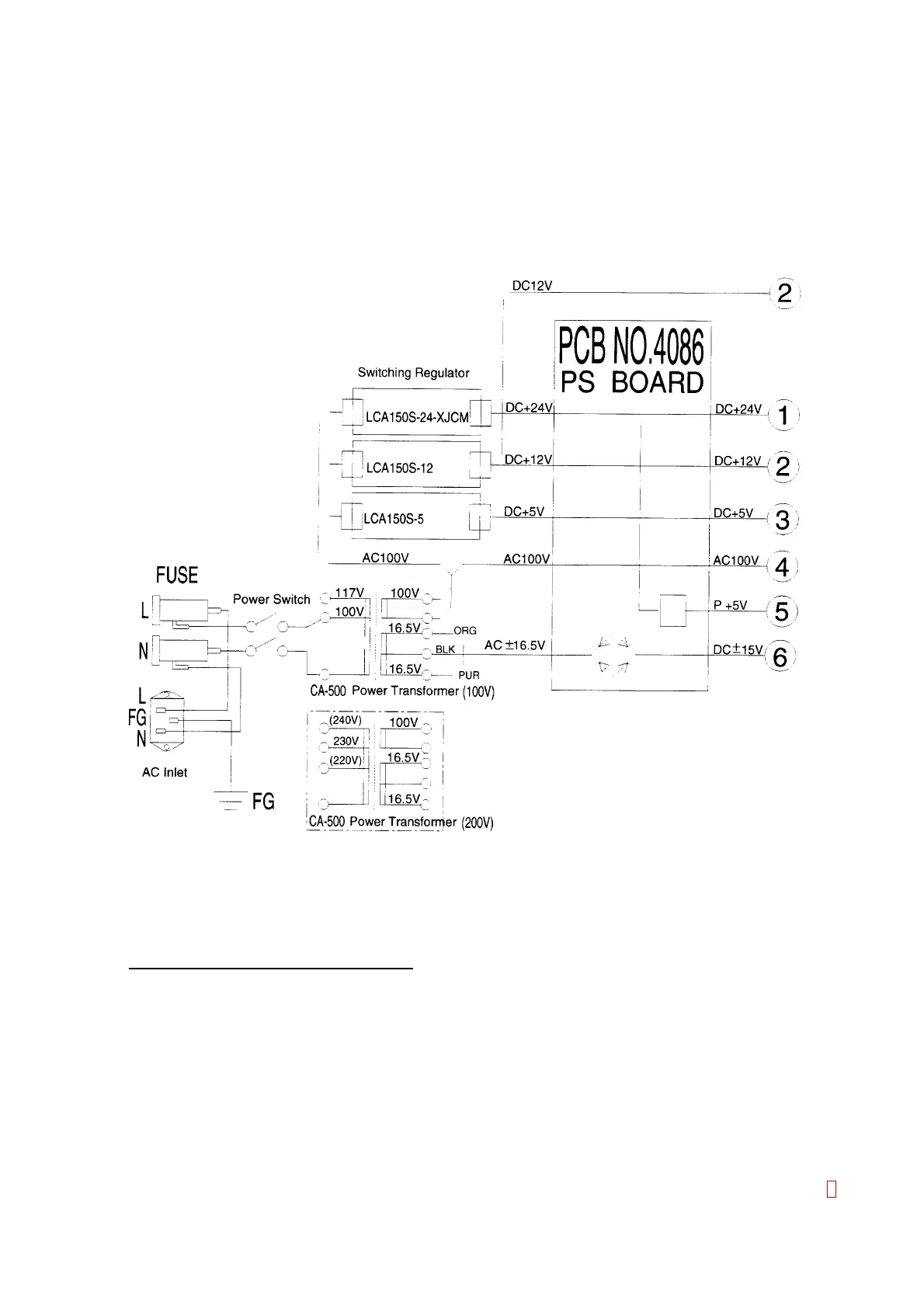

Figure 3-3:
CA-500 Power Supply System Block Diagram
[Descriptions]
Switching Regulator LCA150S-24-XJCM
¨ DC +24 V: Via PCB No. 4086, used for X, Y, Z and Syringe Motor excitation, power source
for Built-In Printer, for inverter power source for LCD, and for power source for
Probe Heater.
