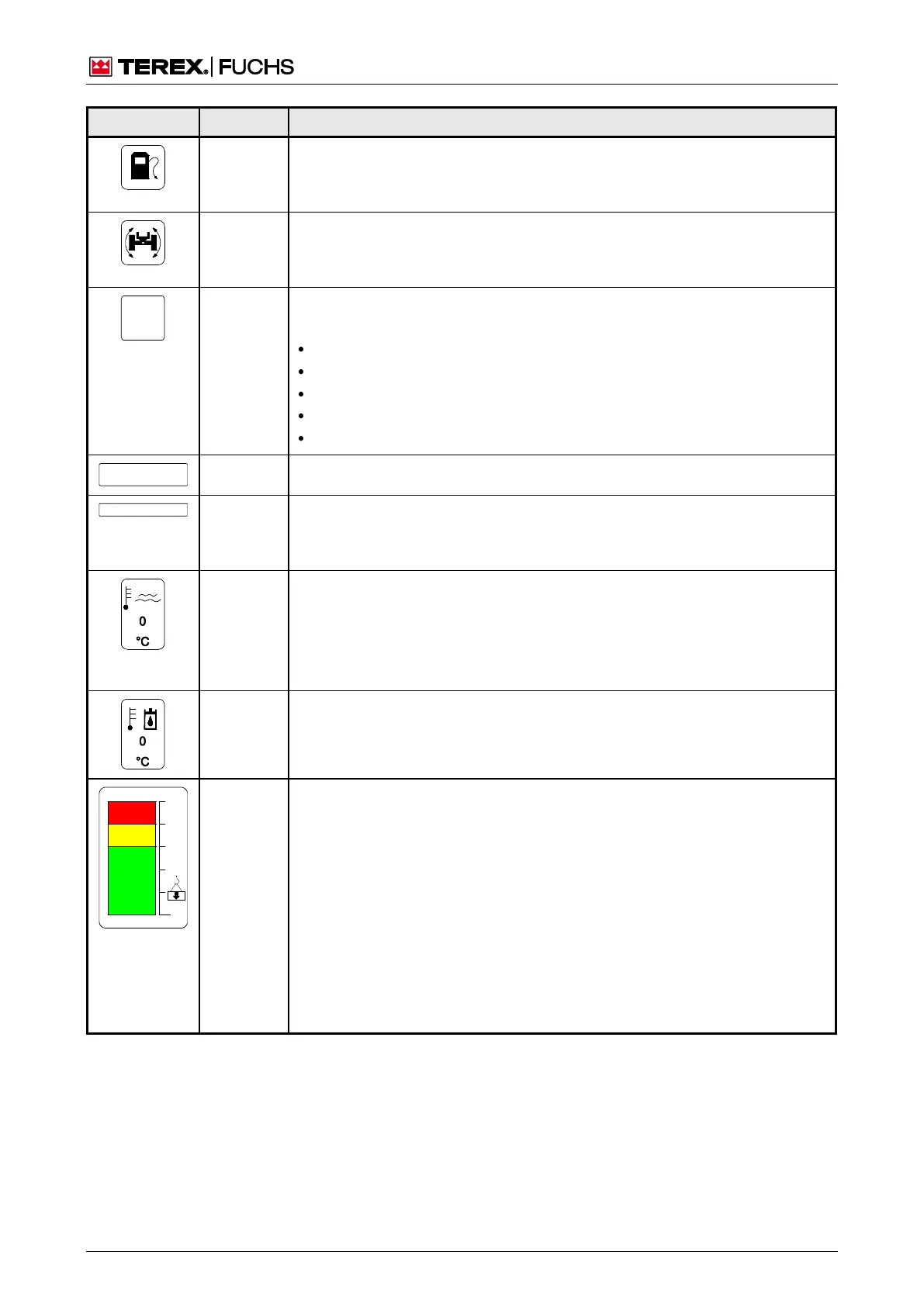

DISPLAY AND CONTROL ELEMENTS 4
MHL380 D 4.11
Symbol
Item
Explanation of the function
SYM112
45
Indicator – fuel level
The "Fuel reserve" indicator lights up if the fuel in the diesel tank is less than
the reserve volume of 5%.
SYM114
„
Indicator – oscillating axle unlocked
The "Oscillating axle unlocked" indicator lights up if the oscillating axle is un-
locked.
SYM204
amber
46
Indicator – travel and work functions disabled
Lights up when travel and work functions are disabled:
Pushbutton for travel and work functions disabled
Maintenance steps folded down
Left armrest folded up
Coolant, charge air or hydraulic fluid temperature above maximum
Hydraulic fluid level too low
SYM153
KRAFTSTOFFVORRAT
UNTER 5%
47
Text output for the indicator displays
SYM152
0 UPM 00 : 00
48
Display – time/operating hours and optionally the current engine speed
Time of day/operating hours appear in this field, as well as (optionally) the
current speed of the diesel engine.
SYM150
49
Display – diesel engine coolant temperature (in °C)
Indicates the coolant temperature of the diesel engine in numeric form. The
background color of the symbol changes according to the coolant tempera-
ture.
h Chapter 4.7.2 Coolant temperature
SYM151
50
Hydraulic oil temperature (in °C) indicator
A number that indicates the hydraulic oil temperature.
h Chapter 4.7.9 Hydraulic oil temperature
SYM155
120%
100%
90%
50%
0%
51
Load display (optional)
The bar display shows the current pressure generated in the main cylinders
by the load (display as a percentage of the maximum permissible load pres-
sure). If 90% of the permissible load pressure is exceeded, the color of the
bar will change from green to yellow, and the message "OVERLOAD" will
appear on a yellow background in the main control display. At the same time,
the warning buzzer will sound in the cab.
If 100% of the permissible load pressure is exceeded, the bar color will
change from yellow to red. If the "Overload cut-off" special equipment is se-
lected, the "OVERLOAD" message appears on the main control display
against a red background. Depending on the various dynamic parameters,
work functions that increase load may be disabled.
