7 CARE AND MAINTENANCE
7.46 MHL380 D
7.9.2.5 Replacing the fuel prefilter with
integrated filter cartridge
h Replace as described in Chapter 7.8.3
Maintenance and inspection plan.
j WARNING
Danger of injury due to escaping
diesel fuel
• All maintenance work on the fuel
pre-filter must be carried out with
the engine switched off.
In an emergency: Administer first
aid, seek treatment from a doctor
ATTENTION
Function of drain valve: press the control knob
toward the valve body, then turn.
►
Switch off the diesel engine.
►
Open the filter cover vent plug (193/1).
►
Open the drain valve (193/2), collect any
dirt and water in an appropriate container
and dispose of in compliance with envi-
ronmental regulations. The volume of flu-
id to be disposed of should not exceed
0.5 – 1.0 liters.
►
Close the drain valve (193/2).
►
Unscrew and clean the lower part of the
housing (194/3). Unscrew the filter car-
tridge (194/4) from the filter head (194/6).
Dispose of the filter cartridge in compliance
with environmental regulations.
►
Oil the threads and the sealing surfaces on
the lower part of the housing (194/3), the
filter head (194/6) and the sealing rings
(194/5) with hydraulic oil.
►
Carefully push the new filter cartridge
(194/4) onto the holding lug. Make sure it is
seated correctly! Screw the filter cartridge
(194/4) onto the filter head (194/6).
►
Screw on the lower part of the housing
(194/3) by hand as far as the stop and then
turn it back one quarter of a turn.
►
Vent the fuel prefilter.
h Chapter 7.9.2.7 Venting the fuel system
5
4
3
6
380-101-103

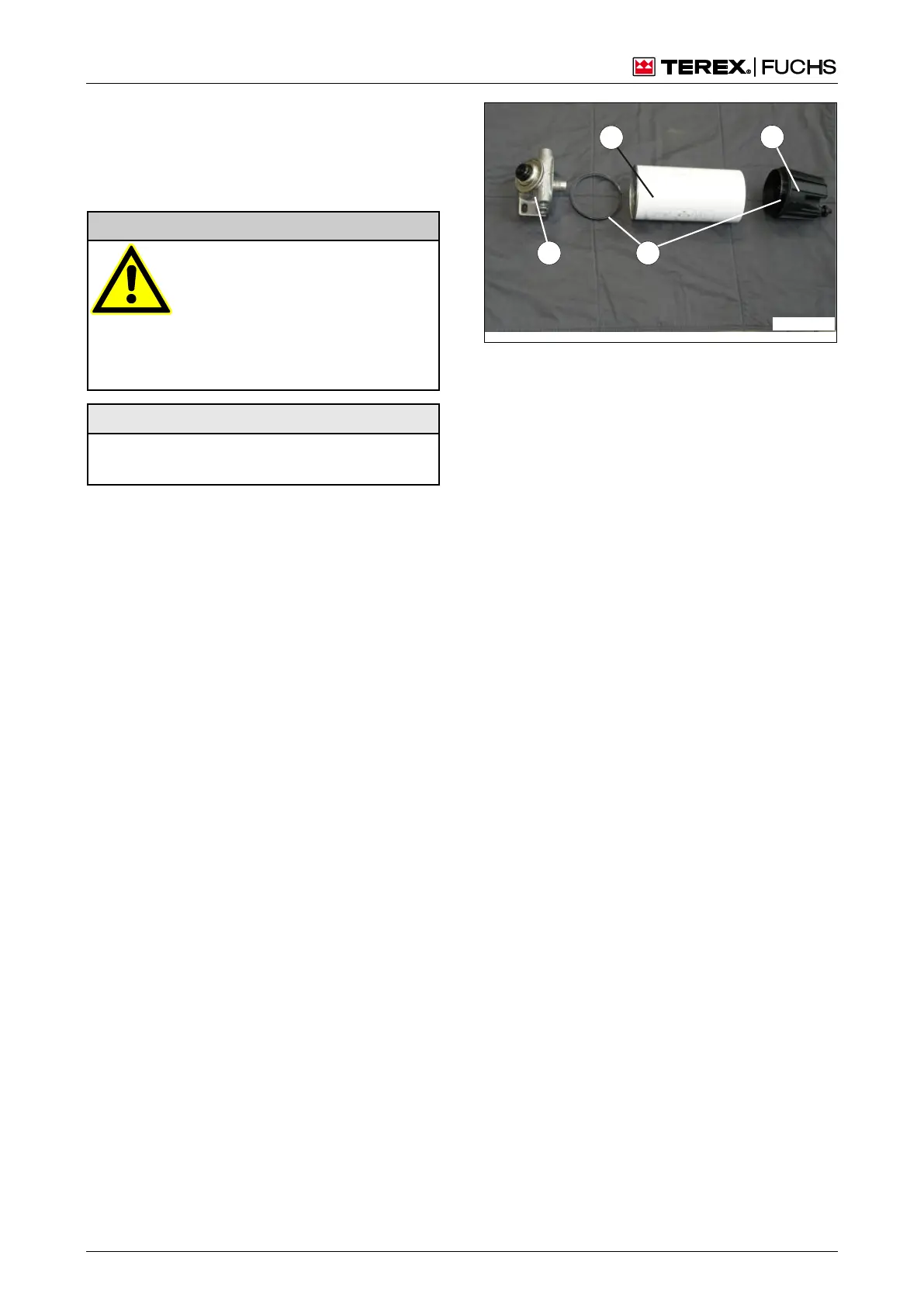

Fig. 194 Fuel pre-filter cartridge
