4.14 Parking the machine
Danger of injury due to uncon-
trolled machine movements
• Park the machine only on a level
and solid surface.
• When parking the machine, the
uppercarriage must be longitudi-
nal to the undercarriage, and the
cab must be in the home position.
The dipperstick must be posi-
tioned vertically and the open
grab must be placed on the
ground. The stabilizer should be
retracted in the standard version
with stabilizer plates, if using en-
larged stabilizer plates (optional),
place these on the floor (see fig.
122).
• Plates should be pushed under
the grab tips to stop them digging
into the ground.
In an emergency: Administer first
aid, seek treatment from a doctor
When switching off the machine, the work at-
tachment must be lowered carefully, as the
ground could be damaged by the weight of the
loading equipment.
â–º
Lower the loading equipment to the
ground.
â–º
Switch the parking brake pushbutton
(123/65) on and open the service brake
(123/16).
â–º
Switch the swing brake pushbutton
(123/66) on or, alternatively, press the
pushbutton on the left-hand four-way con-
trol lever (123/5).
The swing brake is not a dynamic
brake. Activate the "Swing brake"
pushbutton only with the swing as-
sembly at standstill!

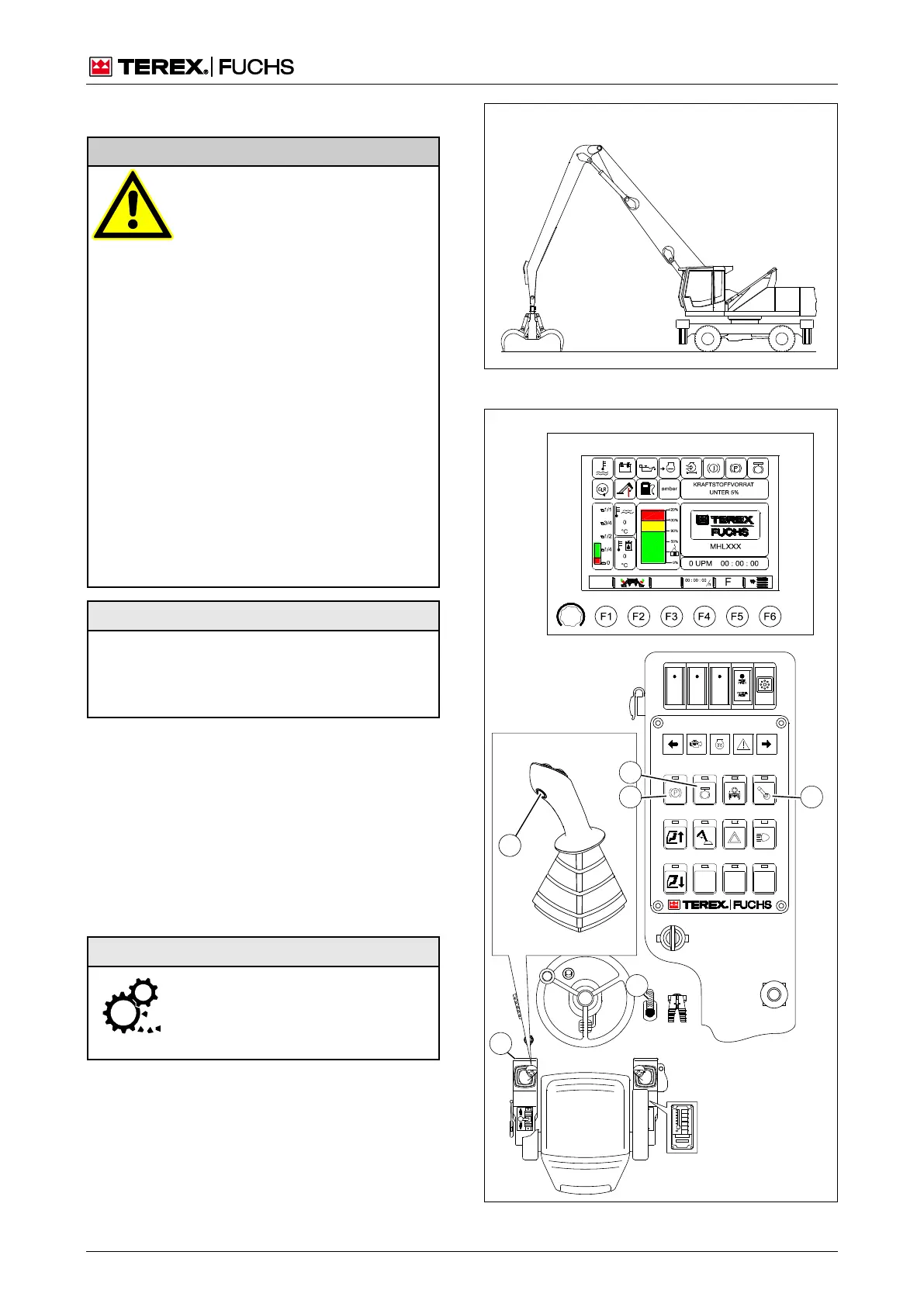

Fig. 122 Proper parking of the machine
