DISPLAY AND CONTROL ELEMENTS 4
MHL380 D 4.7
4.2 Multifunction display
When the machine is switched on (see Fig. 26), the main control display appears on the multifunc-
tion display.

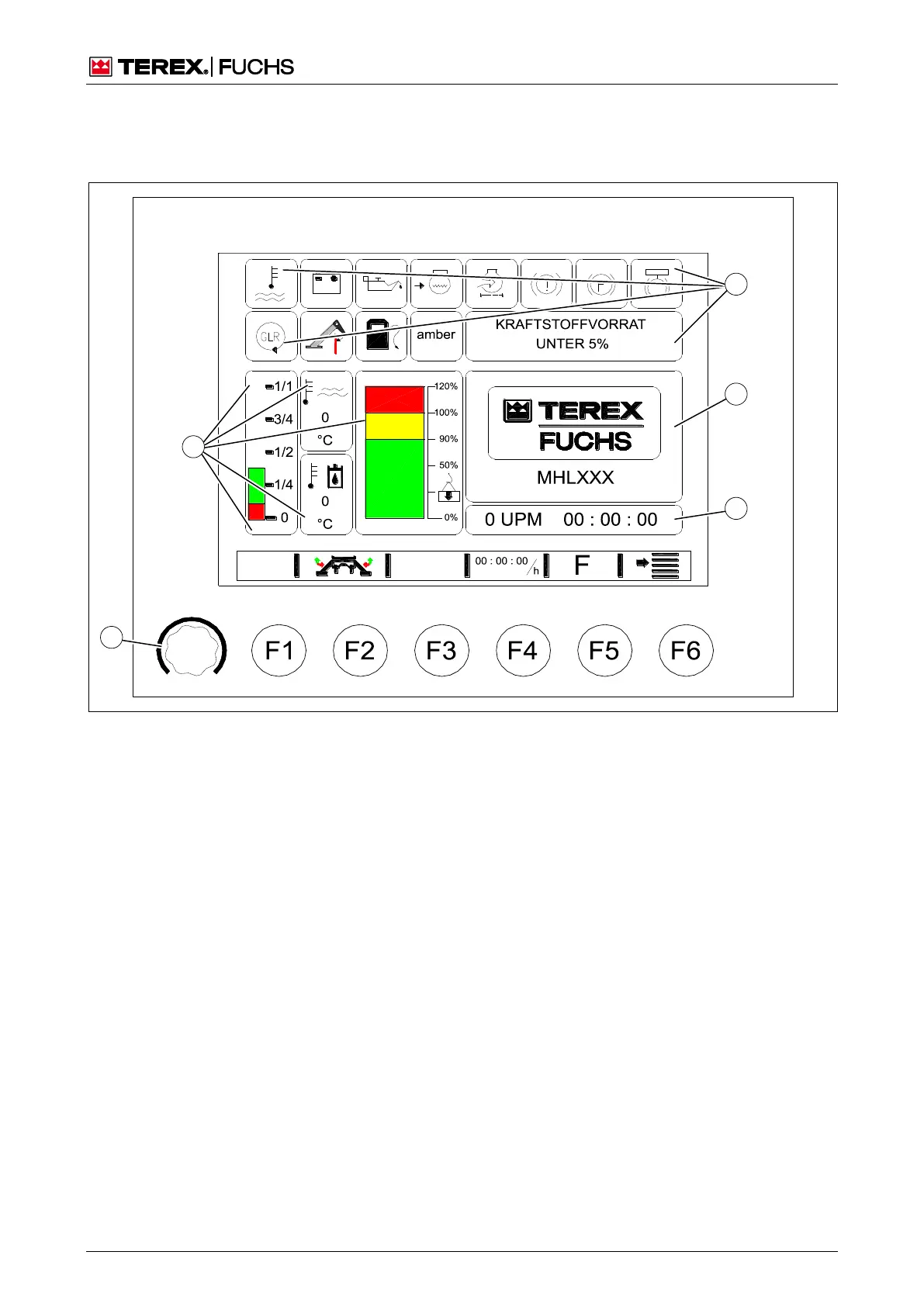

Fig. 26 Multifunction display
SYM field (symbols) see (26/3)
"Indicators" with the associated message text are displayed in the upper part of the main control
display.
h Symbols in this field: Pages 4.9 – 4.11.
MESS field (measured value displays) see (26/2)
The MESS field displays fuel level, coolant temperature, hydraulic oil temperature, and the load
(optional) in graphic/numeric form.
h Displays: Pages 4.11 and 4.12.
BA field (time/operating hours and current engine speed as an option) see (26/5)
Time of day/operating hours appear in this field, as well as (optionally) the current speed of the
diesel engine.
