Terex Fuchs MHL380 D User Manual

CARE AND MAINTENANCE 7
MHL380 D 7.17
7.6.7 Oil level check
j WARNING
Burns due to hot fluids and sur-
faces
• Oil is hot when the machine is at
operating temperature. Avoid
touching hot oil or parts carrying
oil.
In an emergency: Administer first
aid, seek treatment from a doctor
Check the oil level as follows:
►
Park the machine on level ground.
►
Turn the wheel until the drain plug (168/2)
is at the bottom.
►
Switch off the engine.
►
Remove checking plugs, check and top up
oil if required.
h Filling quantities, oil specification and
change intervals:
Chapter
66H3.15 67HFuels, lubricants and cool-
ants
Chapter 7.8.3 Maintenance and inspection
plan
7.6.7.1 Checking positions
Axles and wheel hubs
►
the rear axle (166/1)
►
the front axle (167/1)
►
the wheel hub (168/1)
h Oil change procedure:
Chapter 7.9.14 Changing axle and trans-
mission oil
1
380-101-084b

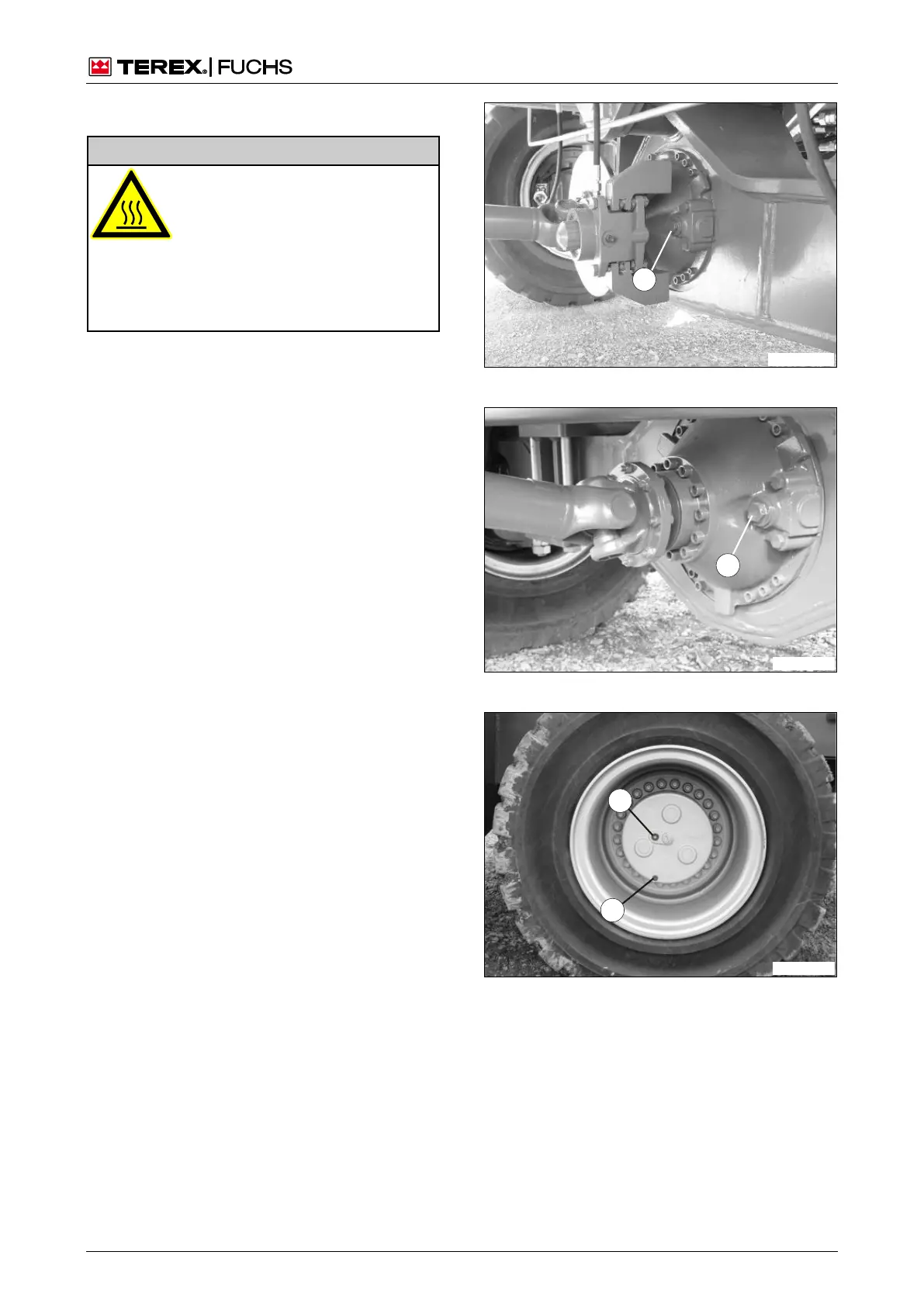

Fig. 166 Rear axle
1
380-101-085
Fig. 167 Front axle
2
1
380-101-086
Fig. 168 Wheel hub
