TECHNICAL DATA 3

MHL380 D 3.3

3.1.3 Loading equipment 21 m and 22 m cranked

B C

BSB51106

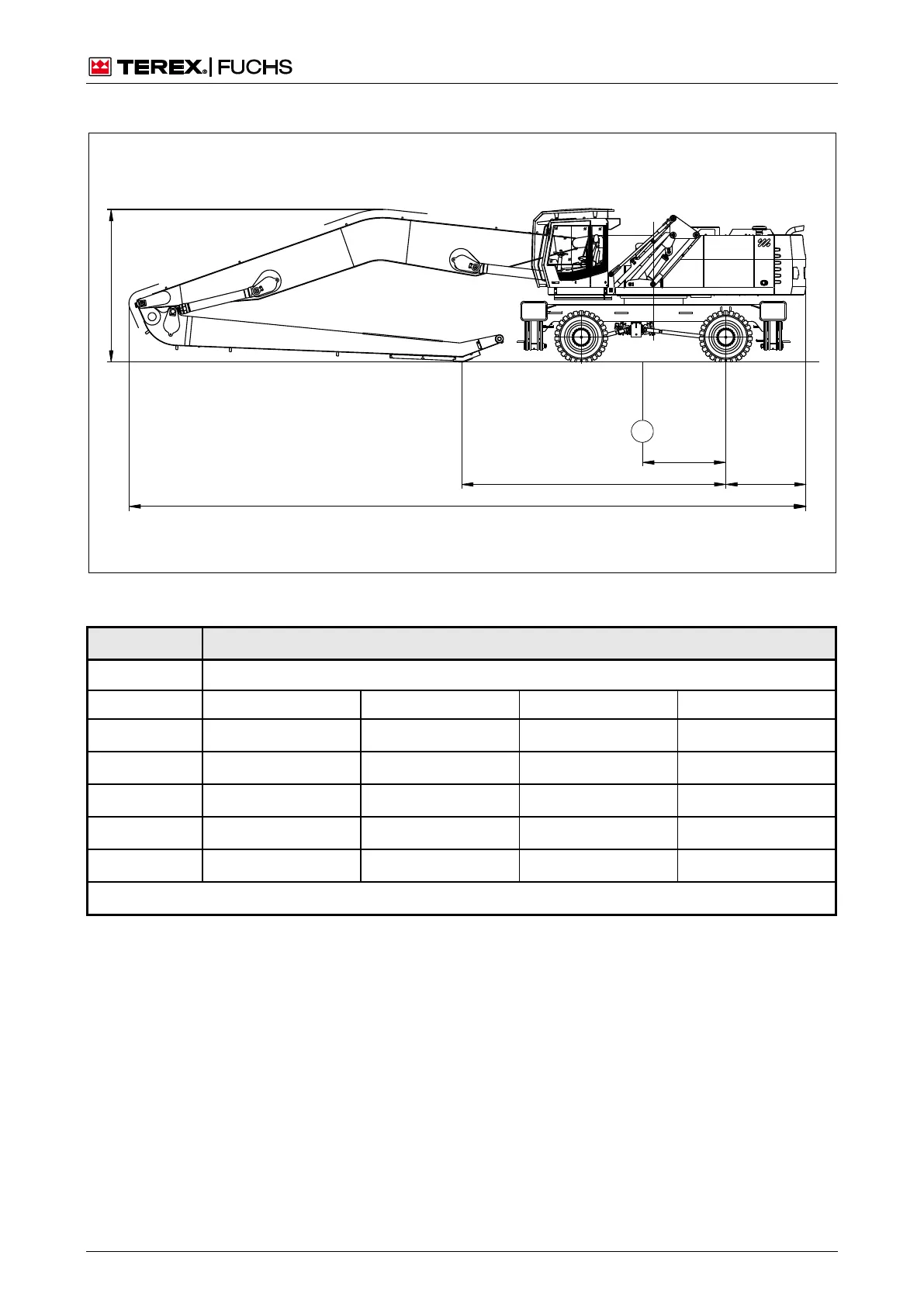

Fig. 7 Transport dimensions

1 Average center of gravity in transport position

TRANSPORT DIMENSIONS

Loading equipment

21 m

22 m

16860

16980

6580

6210

2000

2070

3800

4700

Measurements in mm
