WORK OPERATION 5
MHL380 D 5.5
5.1.4 Liebherr control system
 Current machine control unit (if yes, please tick)
MHL-XXXX-804
4
5
9
6
7
10
11
1216
13
17
14
18
15
19
20
21
22
23
8
2
1
3

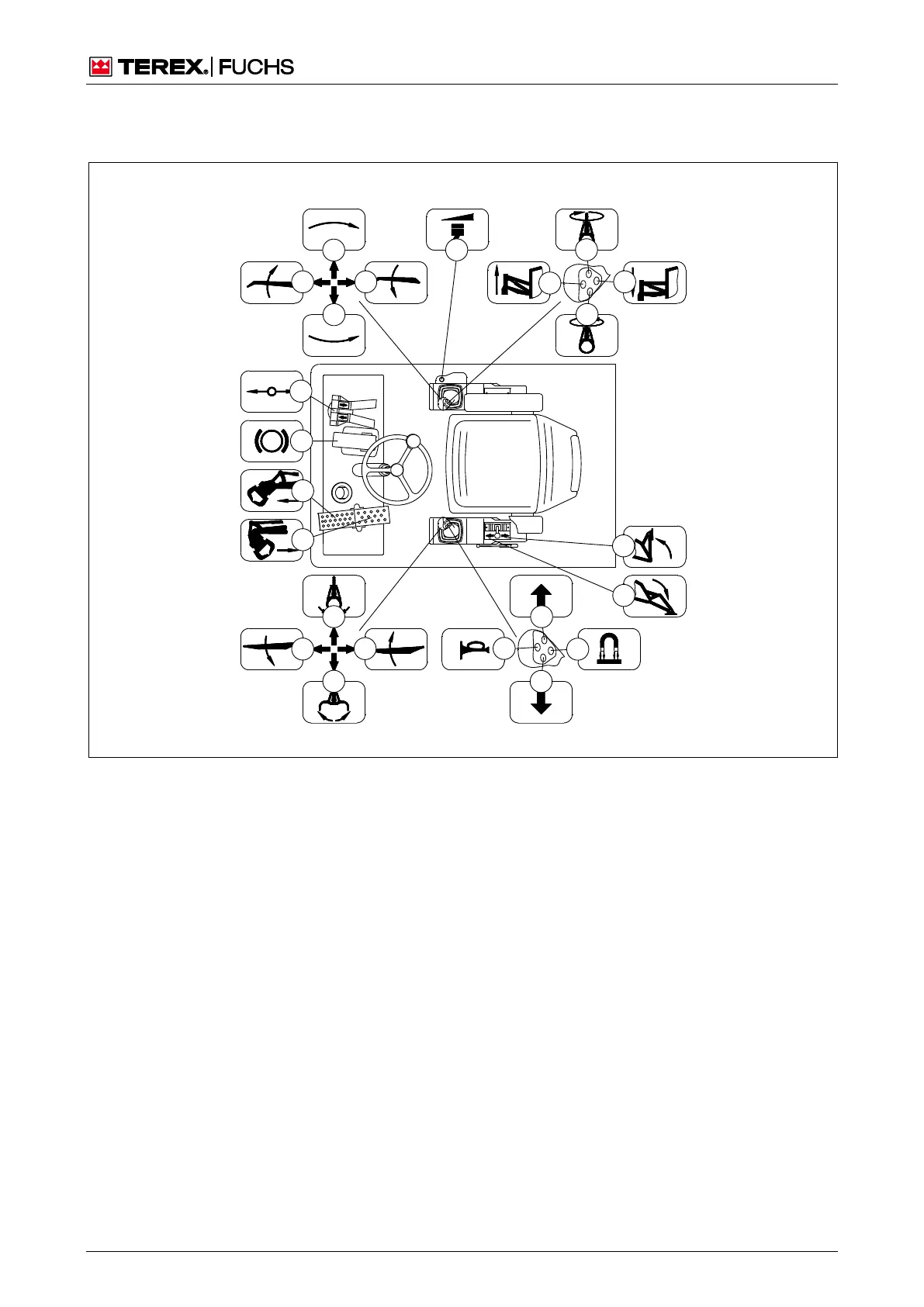

Fig. 129 Assignment with Liebherr control system
1 Swing uppercarriage clockwise
2
Retract dipperstick
3
Swing uppercarriage anticlockwise
4
Extend dipperstick
5
Engine speed
6
Clockwise grab rotation
7
Extend dozer blade
1)
8
Rotate grab counterclockwise
9
Retract dozer blade
1)
1
0 Retract outrigger
1
1 Extend outrigger
1
2 Right indicator
13 Switch magnet system on/off
1)
1
4 Left indicator
1
5 Horn
1
6 Close grab
1
7 Raise boom
1
8 Open grab
1
9 Lower boom
2
0 Extend tilting cylinder
1)
2
1 Retract tilting cylinder
1)
2
2 Service brake
2
3 Travel direction FWD/REV
1)
Optional
