7 CARE AND MAINTENANCE
7.50 MHL380 D
7.9.3.1 Changing cartridges
j WARNING
Danger of injury due to falling
• Before replacing the filter, make
sure that suitable equipment for
this purpose (e.g. a pedestal) is
at hand.
In an emergency: Administer first
aid, seek treatment from a doctor
Replacing the main cartridge
►
Open the support brackets (198/1) and
remove the cover (198/2) with the dust
emptying valve (198/5).
►
Carefully turn and tip the dirty main car-
tridge (199/1) to remove it, then dispose of
the cartridge.
►
Record the maintenance job performed on
the safety cartridge (199/2).
►
Clean the inside of the air filter body and
the sealing surface in the housing with
damp cloths. Do not blow off the housing
with compressed air.
►
Check the new main cartridge for damage.
ATTENTION
Do not install damaged main car-
tridges. The diesel engine can be
damaged if dust is able to get into
it.
►
Install the main cartridge by turning it
slightly into the filter body. Check to make
sure it is seated correctly.
►
Install the cover with the dust emptying
valve below and fasten the support brack-
ets (198/1).
5
3
4
2
1
380-101-107

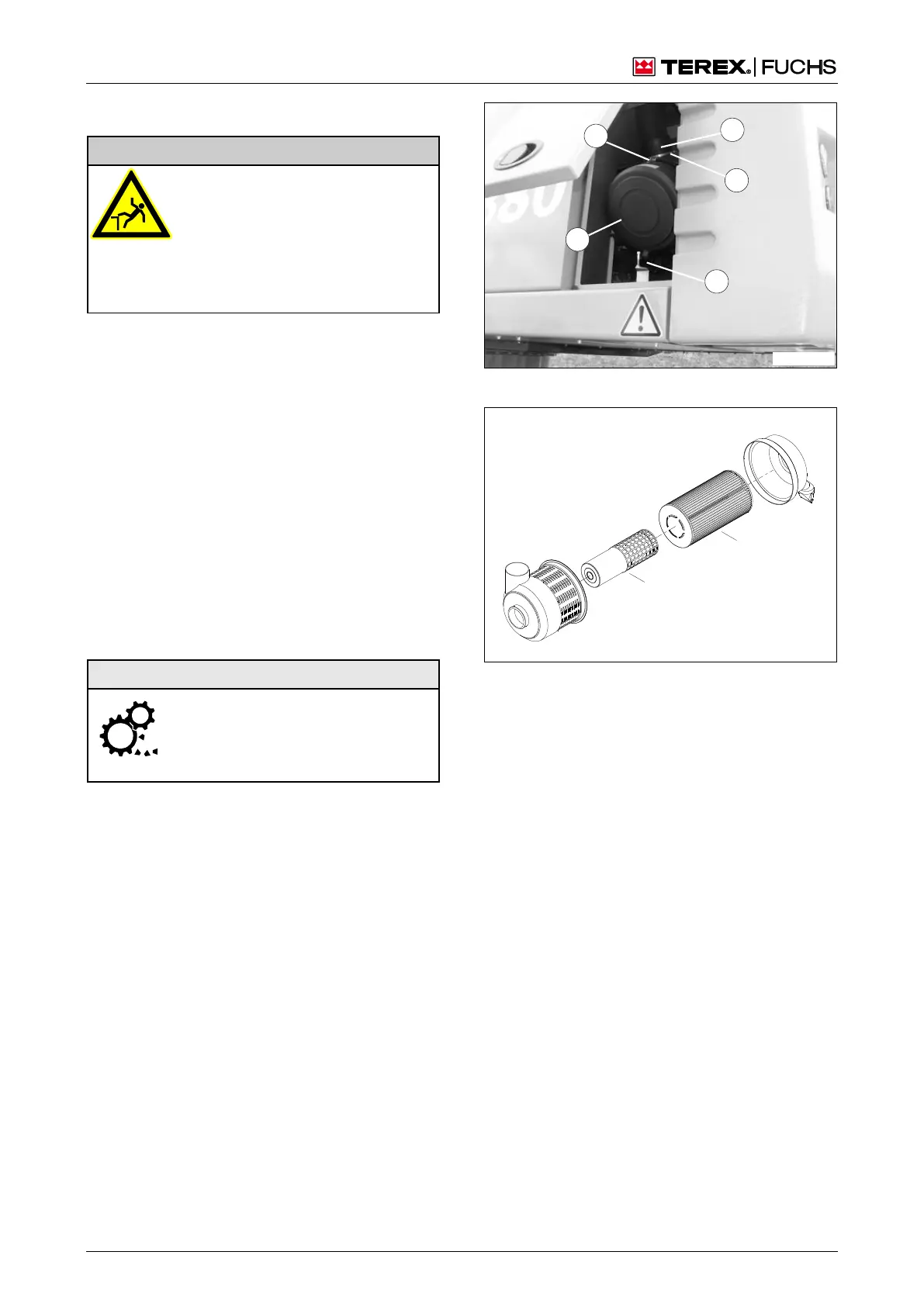

Fig. 198 Dust collector
2
1
380-0101-068
Fig. 199 Filter replacement
