Terex Fuchs MHL380 D User Manual

4 DISPLAY AND CONTROL ELEMENTS
4.58 MHL380 D
4.10.3 Opening/closing the windscreen
The windscreen can only be opened com-
pletely. It is not possible to open it in stages.
The cab is available with reinforced glass or
Lexan glazing (windshield and skylight) as an
option. The windshield and skylight cannot be
opened if they are made of reinforced glass.
j
CAUTION
Injuries due to sagging wind-
shield
• It must be ensured that the wind-
shield is locked in the end posi-
tions
In an emergency: Administer first
aid, seek treatment from a doctor
Opening the windshield
►
Swing in both locking levers (89/1)
The windshield is unlocked.
►
Use the two unlocking levers to slide the
windshield up (89/2) and back (89/3) under
the cab roof as far as the two locking de-
vices (89/4).
►
Unfold both unlocking levers (90/1) such
that the locking bolts (90/2) snap into the
holders (90/3).
The windshield is locked.
Closing the windshield
►
Swing in both unlocking levers (89/1).
The windshield is unlocked.
►
Use the two unlocking levers to move the
windshield forward and lower it into the end
position.
►
Unfold both unlocking levers (91/1) such
that the locking bolts (91/2) snap into the
holders (91/3).
The windshield is locked.
MHL-NBXX-332
2
3
3
2
1
1
4

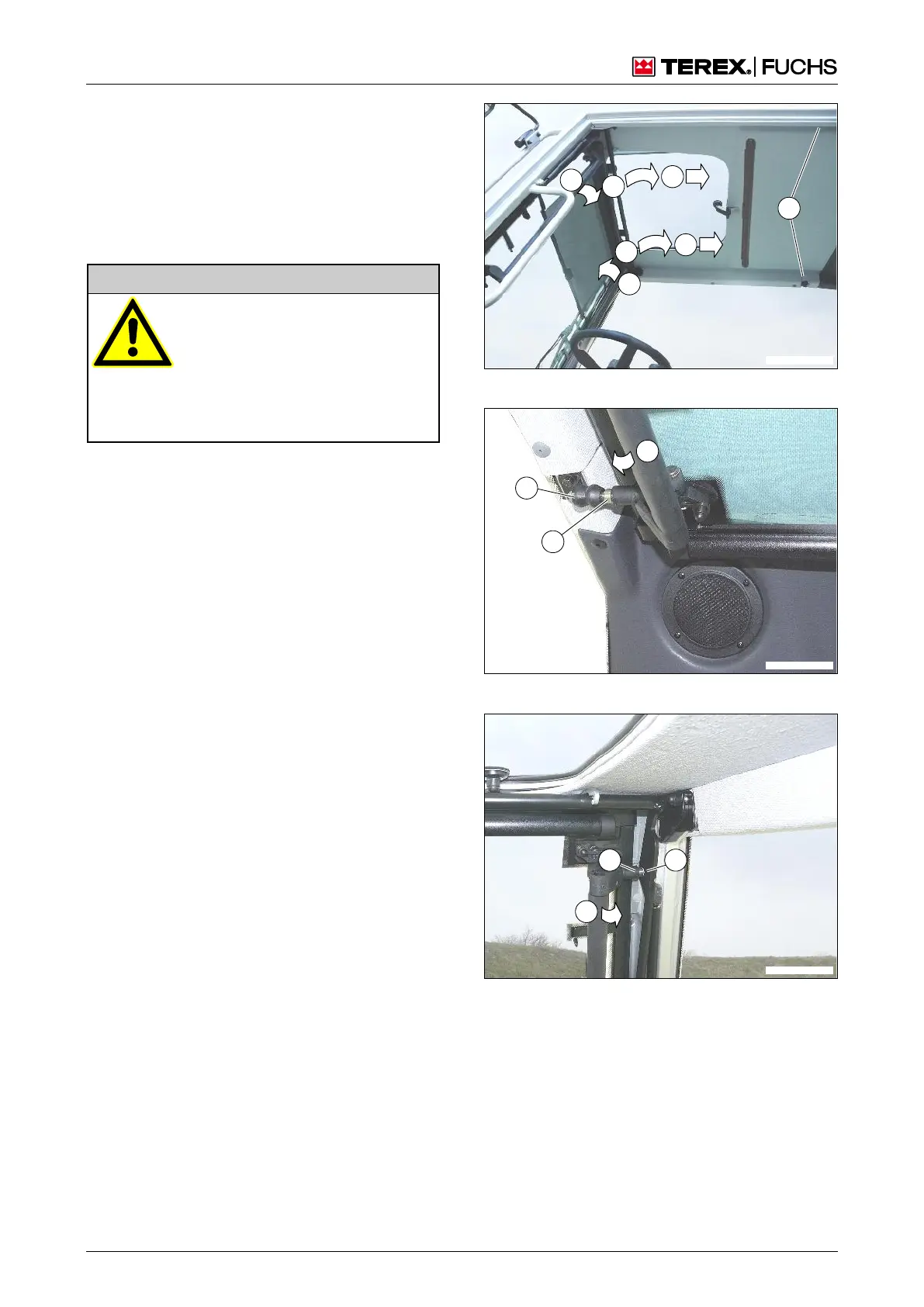

Fig. 89 Opening the windshield
MHL-XXXX-302
2
3
1
Fig. 90 Windshield swung up
MHL-XXXX-303
2 3
1
Fig. 91 Windshield swung down
