CARE AND MAINTENANCE 7
MHL380 D 7.57
7.9.5.2 Replacing the belts alternator on
the generator
►
Switch off the diesel engine and remove
the ignition key.
►
Switch the battery isolator switch off.
►
Unscrew the nuts (207/1) on the fan and
remove the fan in front of the cooler.
►
Loosen the screws (207/1) and fastening
screws (207/2), but do not screw them out
completely.
►
Loosen counter nut (207/3) of adjusting
bolt (207/4). Unscrew adjusting bolt (207/4)
until the V-belt (207/5) can be lifted above
the pulley (207/6) and removed.
►
Fit and tension the new V-belt.
►
Chapter 7.9.5.1 Tensioning V-belts of gen-
erator
►
Tighten the screw (207/1) and fastening
screws (207/2), as well as the lock nut
(207/3) of the adjusting bolt.
►
Install the fan impeller.
►
Check the correct function of the fan blade.
►
j For the test run, close all openings to
the engine compartment!
►
Switch the battery isolator switch on.
►
Perform a trial run.
►
Check the tension of the new V-belt after
15 minutes with the battery isolator switch
turned off, and adjust if necessary.
1
380-101-115

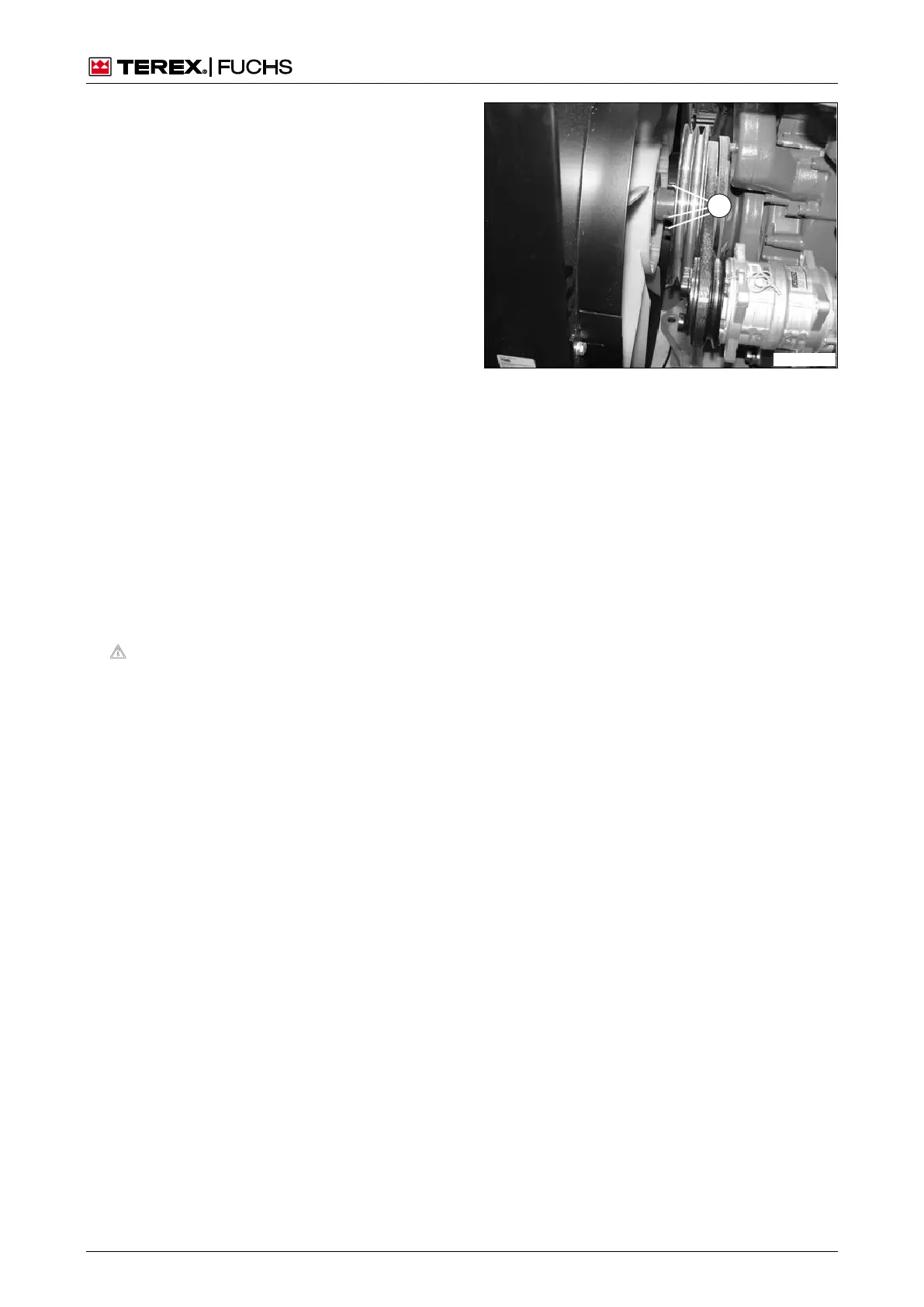

Fig. 207 Unscrewing the fan impeller
