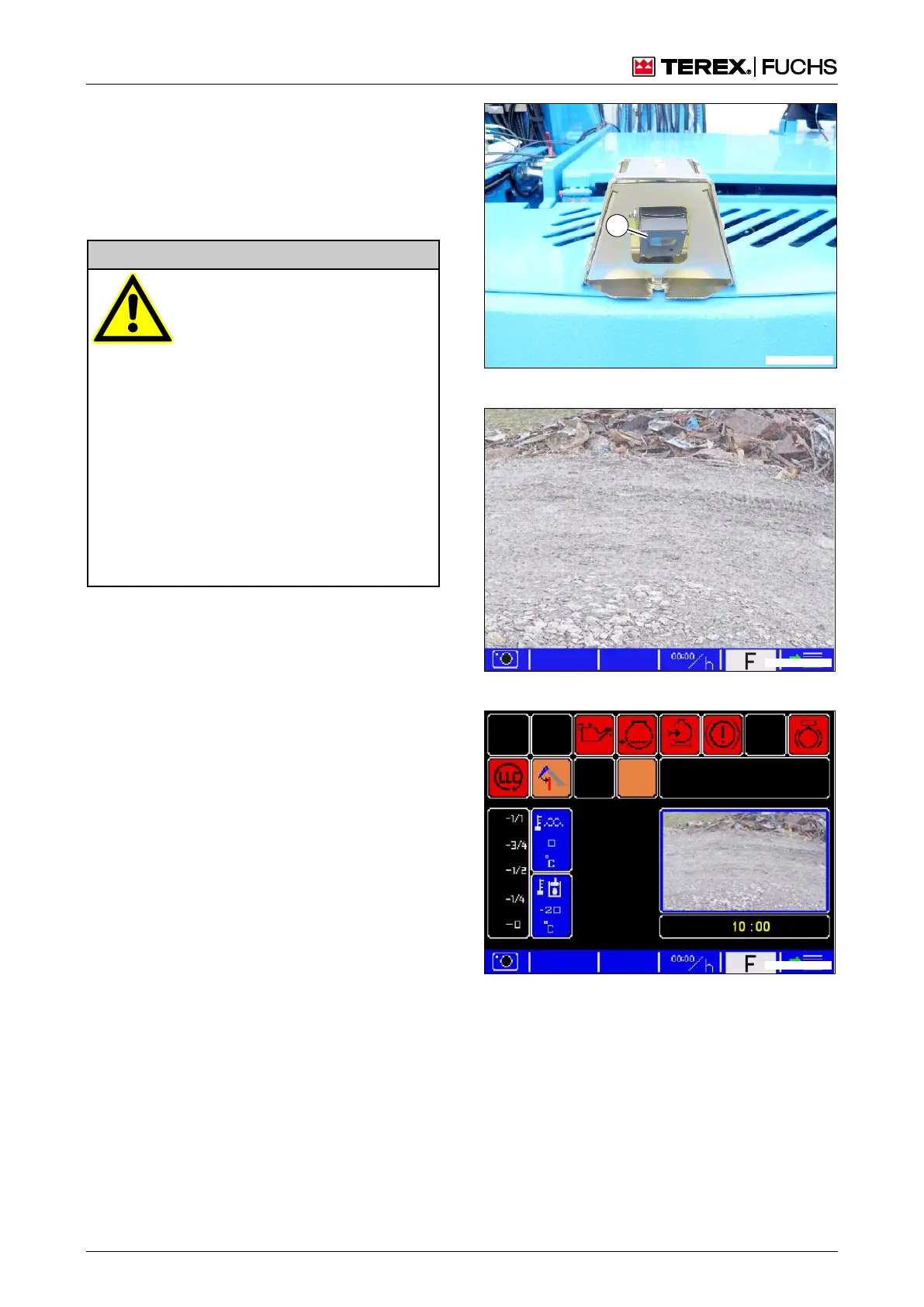

4 DISPLAY AND CONTROL ELEMENTS
4.78 MHL380 D
4.13.1 Rear view camera (optional)
The rear view camera (
X115X/1) allows the driv-
er to see the area at the rear which is not visi-
ble in the rear view mirror.
h Chapter 7.10.1 Rear view camera
j WARNING
Danger of injury due to restricted
visibility
• The rear view camera is set to
the area behind the counter-
weight in the factory. The setting
must not be changed.
• The rear view camera is intended
as an aid only. Note all other
safety information. In the case of
missing images or poor quality of
the display, the backup must be
stopped immediately.
In an emergency: Administer first
aid, seek treatment from a doctor
h Chapter : 2.2.3 Safe operation
despite obscured view
4.13.1.1 Camera image display
The camera image appears in the multifunc-
tion display when the main control display is
selected. It is displayed in mirrored form so is
like looking in a rear mirror. Possible displays
are:
 Full screen display (
X116X) for driving the ma-
chine.
 Minimized display (
X117X) for loading opera-
tions.
 No camera image (
X118X). Details relating to
the machine, options or fault messages are
displayed.
Automatic display change
In normal mode, the display changes auto-
matically depending on the position of the
accelerator pedals:
 Accelerator pedal depressed: Full screen
display
 Accelerator pedal not depressed: Minimized
display
 Minimized display. Automatic display
changes are only reactivated when the ac-
celerator pedals are depressed.
MHL-XXXX-003
11
Figure 115 Rear view camera
MHL-NBXX-751
Figure 116 Full screen display
MHL-NBXX-752
Figure 117 Minimized display
X
4.13.1
Rear
view
camera
(option
al)
