Terex Fuchs MHL380 D User Manual

3 TECHNICAL DATA
3.10 MHL380 D
3.13 Working range of the machine

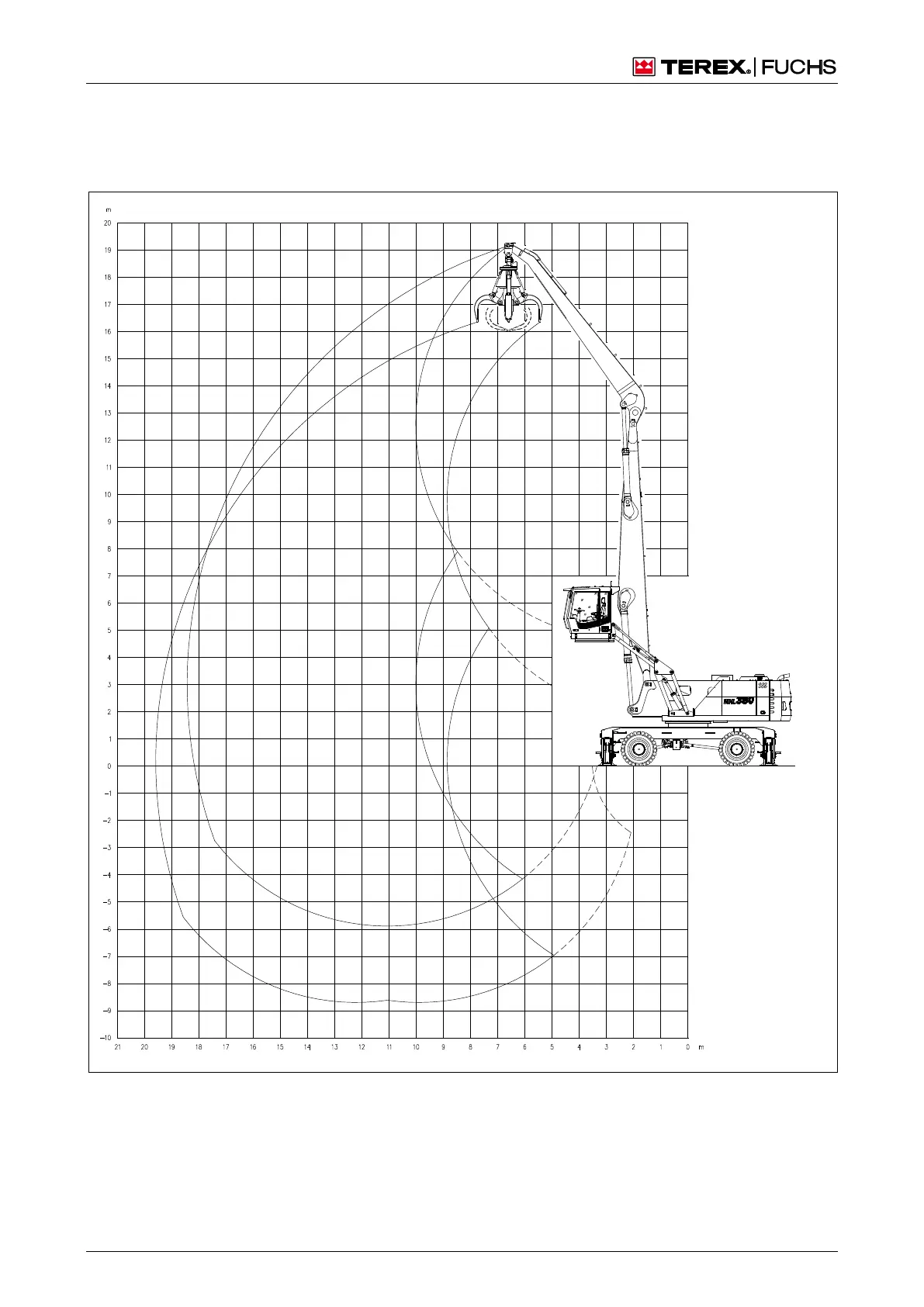

3.13.1 Working range diagram (18.5 m loading equipment)
Work equipment: boom 9.6 m, dipperstick 8.0 m and cactus grab
380-0101-510380-18,5 m
Fig. 9 Working range diagram (18.5 m work equipment)
64H
3.13
65HWorkin
g range
of the
machin
e
