TECHNICAL DATA 3

MHL380 D 3.1

3 Technical data

3.1 Dimensions

3.1.1 Uppercarriage and undercarriage

BSB51104

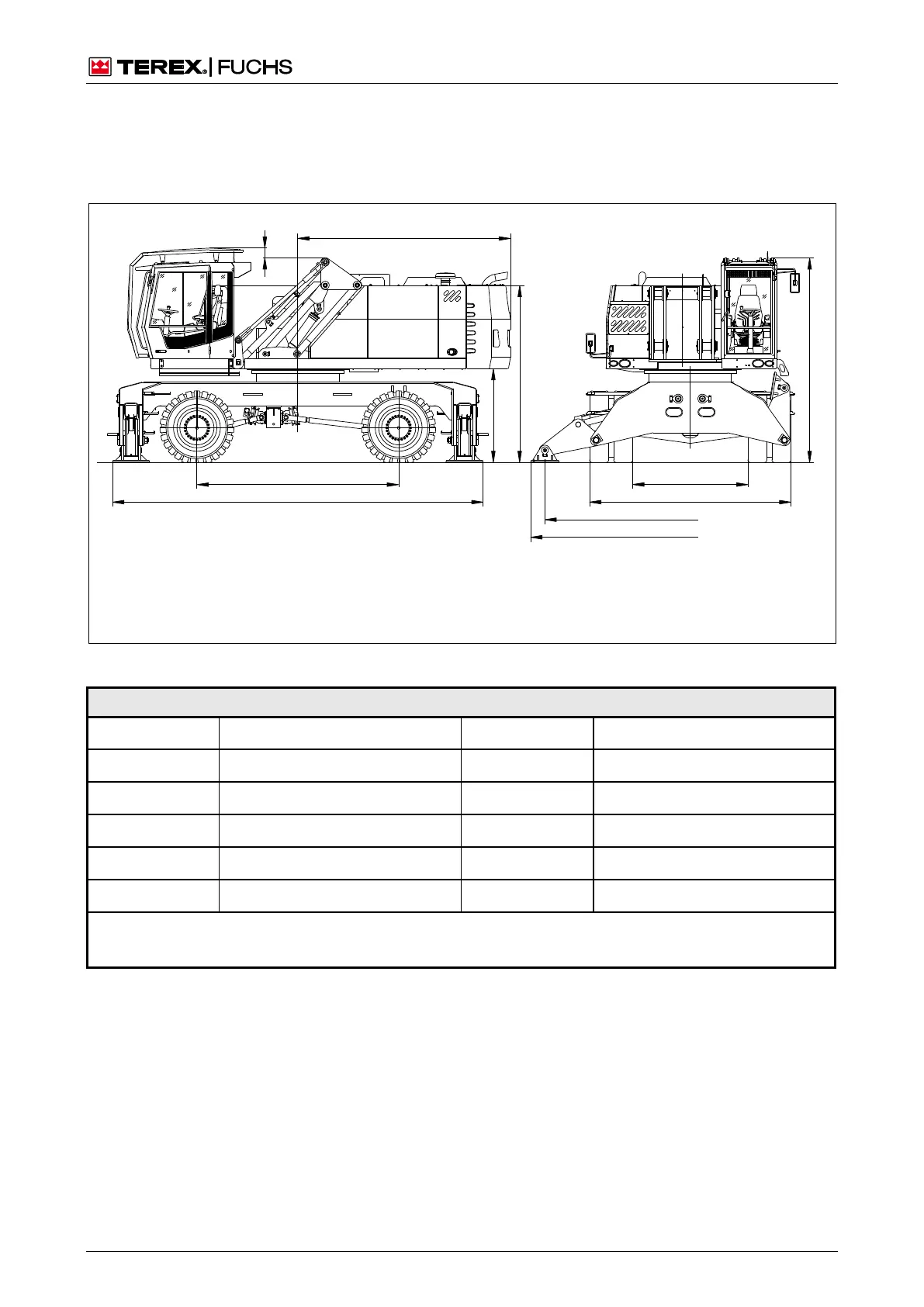

Fig. 5 Dimensions with tires 14.00-24

Uppercarriage and undercarriage

A 6620 G 5700

B 3600 H 5190

C 1680 I 3590

D 3160 J 2050

E 3800 K 3650

F 170*

Measurements in mm

* Protective grating (optional)
