MALFUNCTION 8
MHL380 D 8.3

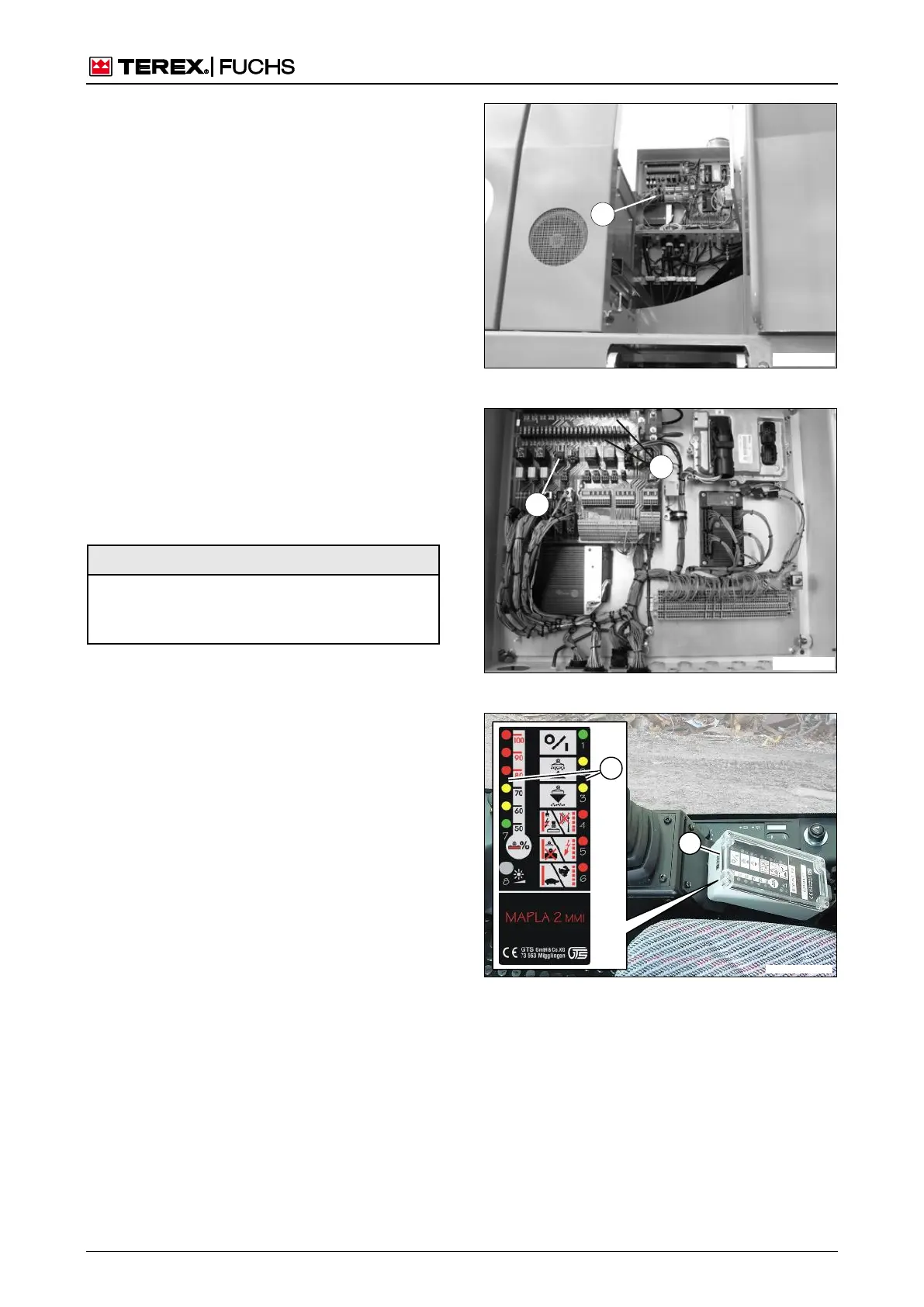

8.5 Malfunctions in the central electrical
system
The fuses for the individual electrical circuits
and various relays are located in the central
electrical system (231/1) on the uppercar-
riage.
In the event of a malfunction, check the fuses.
If they do not exhibit any defects, contact your
dealer or a service engineer.
h Fuses: Chapter 9 Appendix.
8.5.1 Fuse test
The central electrical system includes a
pushbutton (232/1) that can be activated to
perform a fuse test when the ignition is turned
on.
Faulty fuses are indicated by LEDs (232/2)
lighting up red.
8.6 Malfunctions in the magnet system
ATTENTION
The malfunction display is only active when the
diesel engine is running and the generator is
turning.
►
Check which malfunction is displayed in the
operator device (233/1).
►
Monitor the operating status using the
LEDs (233/2).
►
Switch off the machine and restart it to
eliminate the error by means of a "RESET"
if required.
If the malfunction occurs repeatedly, contact
your dealer or a TEREX | Fuchs service engi-
neer and tell them what you can see on the
display.
1
380-101-138
Fig. 231 Central electrical system
2
1
380-101-139
Fig. 232 Fuse test
MHL-XXXX-024
1
2
Fig. 233 Magnet system control device
