DISPLAY AND CONTROL ELEMENTS 4
MHL380 D 4.59
4.10.4 Adjusting the sunblind
The cab is equipped with two sunblinds, one
on the windscreen and one on the glass pane
on the roof of the cab.
Windscreen
►
Pull the sunblind down using the handle
(92/2) and hook it into the brackets (92/1)
in the desired position.
Skylight
►
Pull the sunblind forward using handle
(92/4) and hook it onto the brackets (92/3)
in the desired position.
The springs will pull the sunblind back up.
When rolling the sunblind up, take hold of it by
the handle (92/2) or (92/4) and guide it back.
4.10.5 Skylight
►
To ventilate the cab, open or close the sky-
light by slewing the handle (93/1).
MHL-NBXX-331
4
3
1
2

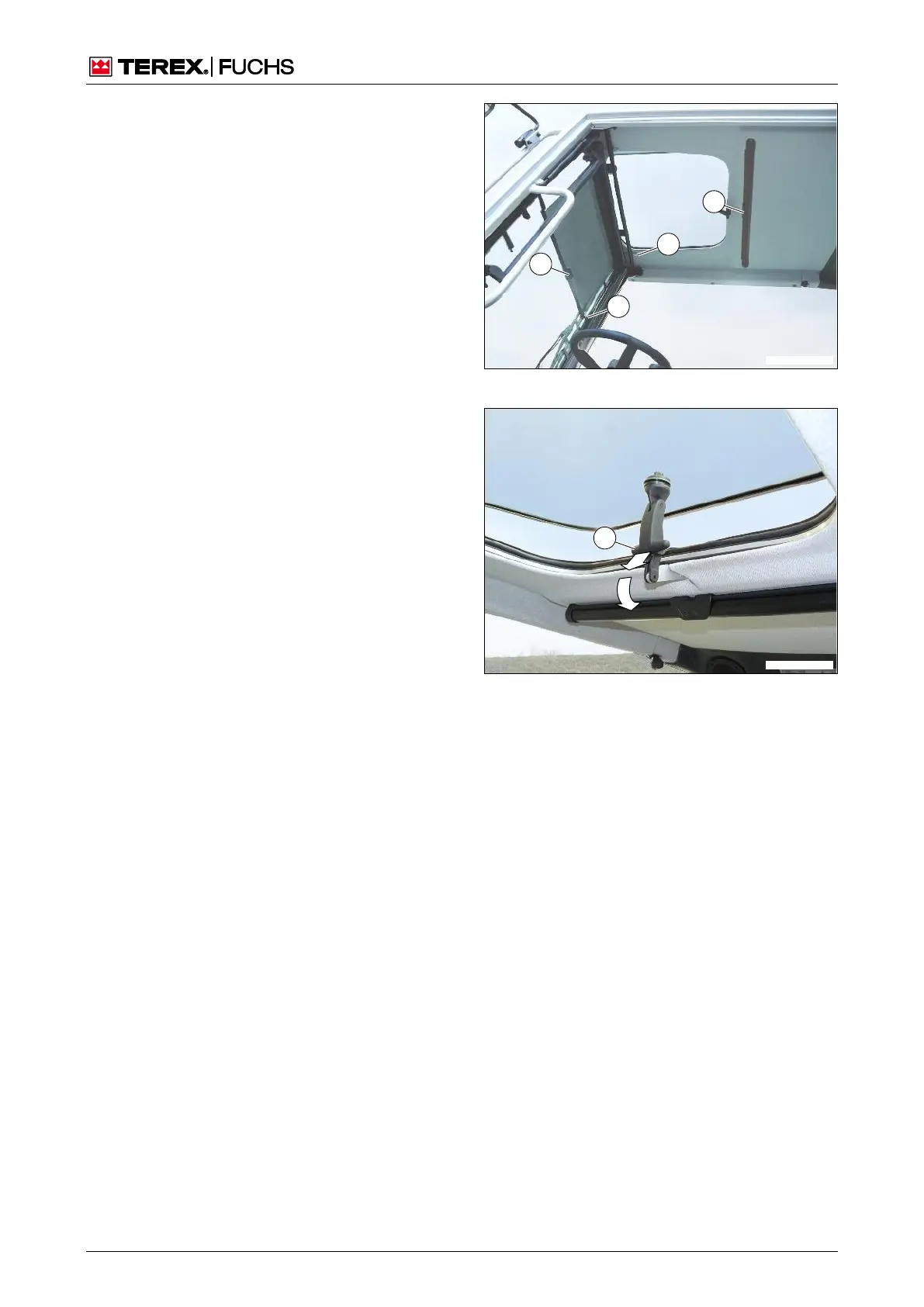

Fig. 92 Adjusting the sunblind
MHL-XXXX-306
1
Fig. 93 Closing the skylight
