5 WORK OPERATION
5.12 MHL380 D
5.1.11 Range limit deactivation (dipper-
stick) (optional)
As an option, the machine can be equipped
with a function to limit the "Extend dipperstick"
movement. Cut-off is triggered by an inductive
proximity switch on the dipperstick joint.
In the multifunction display, the indicator
(135/44.1) appears on an orange-colored
background whenever dipperstick movement
is switched off.
Deactivating the range limit
The range limit can be deactivated in the func-
tion menu using the switch (136/115). When
the cut-off function is deactivated, the switch
is displayed inside a red border.
On the main control display, the indicator
(135/44.2) will appear flashing on a red back-
ground when the dipperstick is in the limited,
permissible area. The indicator will appear
constant on a red background when the dip-
perstick is outside the limits in the impermis-
sible area.
Range limitation is always activated automati-
cally when the ignition is switched on.

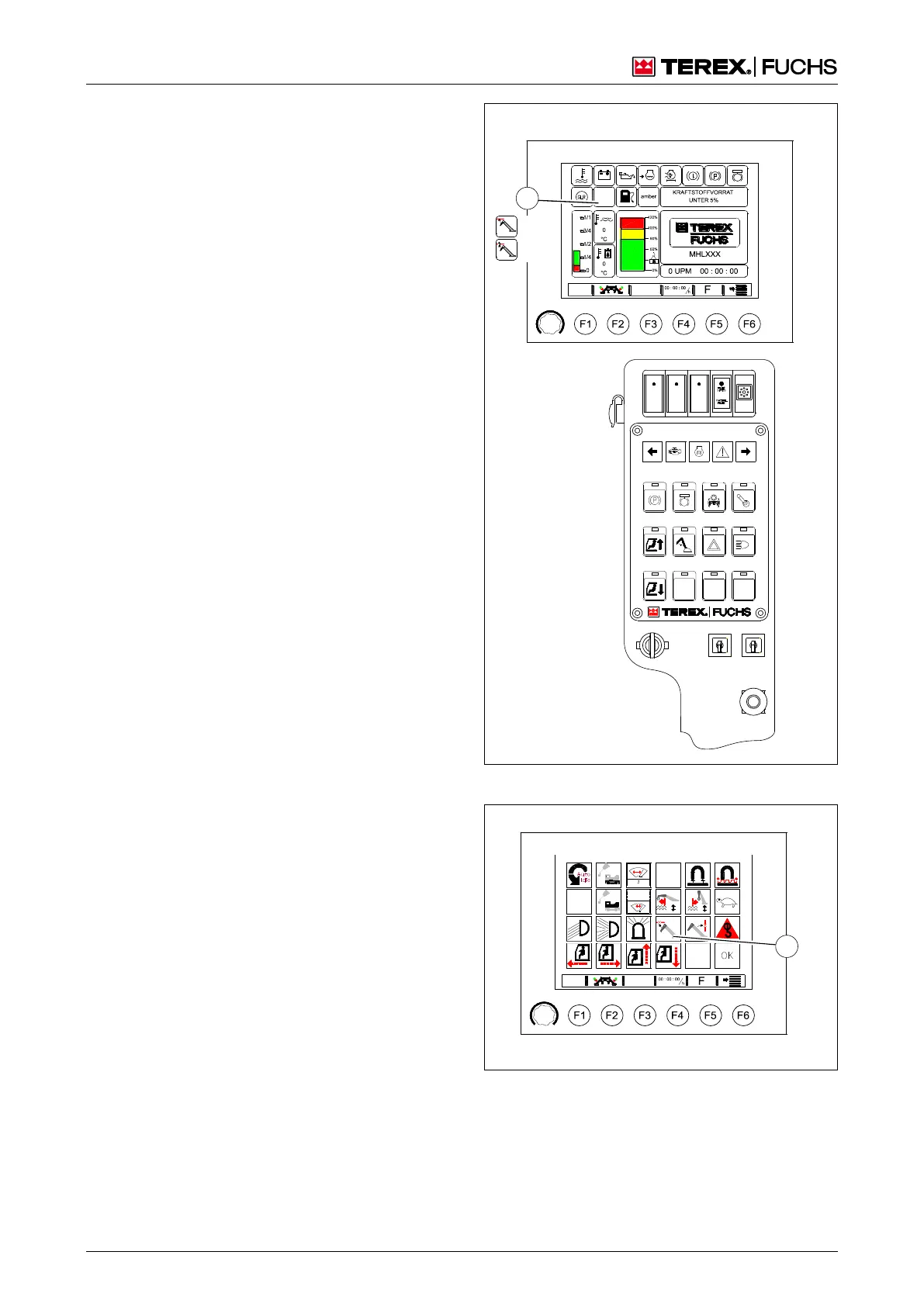

Fig. 135 Deactivating the range limit
