5 WORK OPERATION
5.22 MHL380 D
5.4 Magnet system (optional)
A magnet system can be used to operate
special equipment, for example magnets for
handling scrap metal.
5.4.1 Operation of magnet system
ATTENTION
The magnet system should only be switched on
after the magnetic plate has been attached.
►
In the "Speed and FINE MODE" menu, set
the speed of the diesel engine to full throt-
tle by turning the multifunction button
(144/21) clockwise. Insufficient speed re-
sults in the generator not being ready for
operation. LED 6 (see Fig. 145) in the con-
trol device for the magnet system (144/22)
lights up.
Normal operation of the magnet system
(used for loading):
►
The magnet system is activated in the
function menu using the switch (144/104).
►
Move the magnetic plate to the material to
be picked up.
►
Activate the magnet using the pushbutton
(144/1) on the left-hand four-way control
lever. LED 2 (see Fig. 145) in the magnet
system (144/22) control device is lit up.
In order to achieve optimum take-up of mate-
rial with the magnetic plate, do not magnetize
the plate by pressing the pushbutton (144/1)
on the left-hand four-way control lever until
immediately before positioning the magnet on
the material to be picked up. Lift the magnetic
plate up out of the material after max.
5 seconds
►
Withdraw the magnetic plate with the mate-
rial attached.
►
To drop the material, deactivate the mag-
net with the pushbutton (144/1). LED 3
(see Fig. 145) in the magnet system con-
trol device (144/22) lights up briefly.
MHL-NBXX-610
22
21
1
104 105

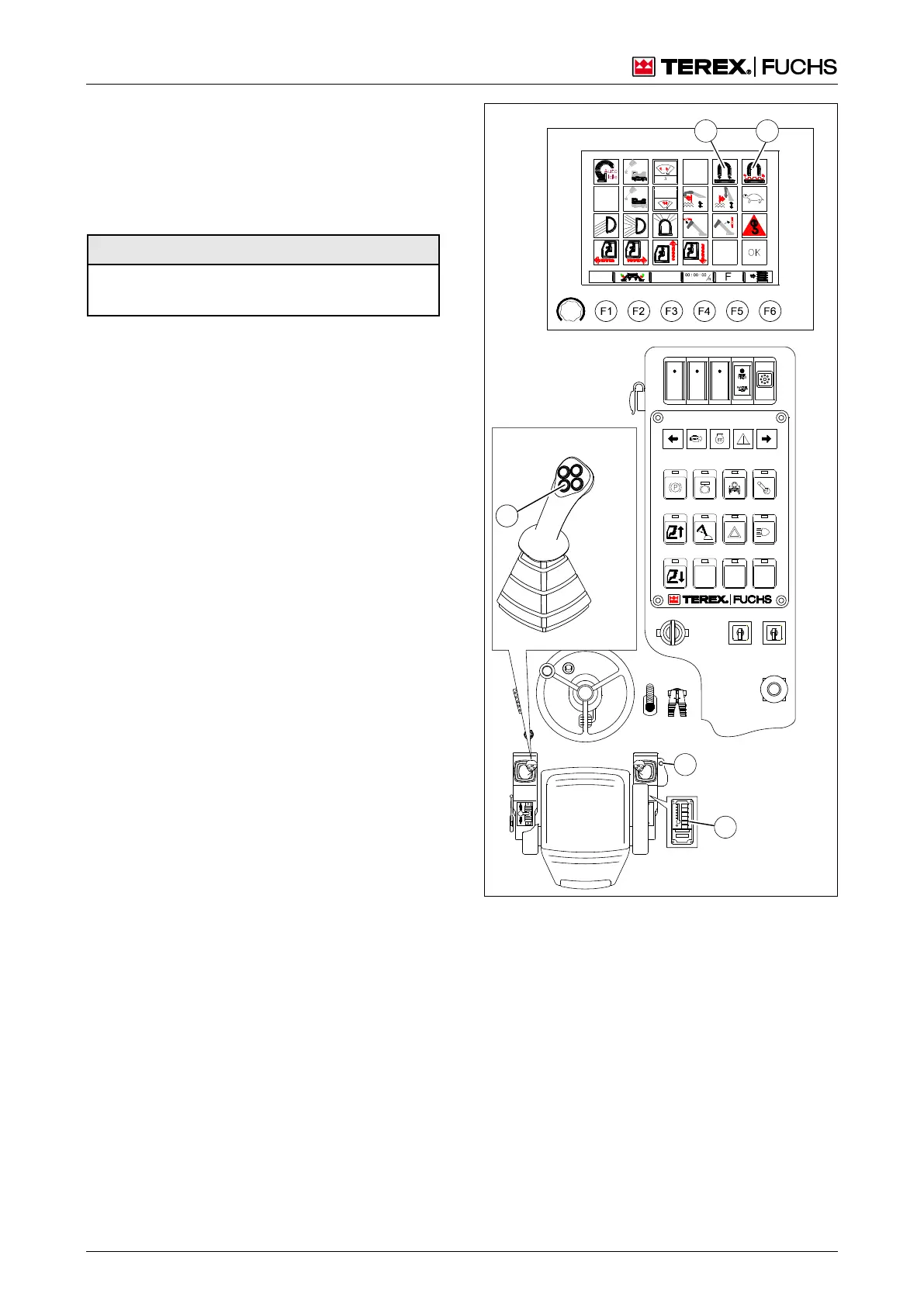

Fig. 144 Magnet system
