DISPLAY AND CONTROL ELEMENTS 4
MHL380 D 4.49
4.8.2 Steering Wheel
4.8.2.1 Adjusting the steering column
j WARNING
Serious injury due to uncon-
trolled steering movements
• Only adjust steering column when
the loading machine is stationery.
In an emergency: Administer first
aid, seek treatment from a doctor
The steering column can be adjusted to
change the position of the steering wheel rela-
tive to the body.
Adjusting the height:
►
Hold the steering wheel firmly.
►
Unscrew the locking device (76/1) and lift
the steering wheel to the desired height.
►
Screw the locking device (76/1) tight once
the desired height is reached.
Adjusting the inclination:
►
Hold the steering wheel firmly.
►
Depress the pedal (76/19) with your foot
and adjust the inclination angle as desired.
►
When you let go of the pedal (76/19) and
the steering wheel the steering column
should snap into position.
MHL-NBXX-588
1
19

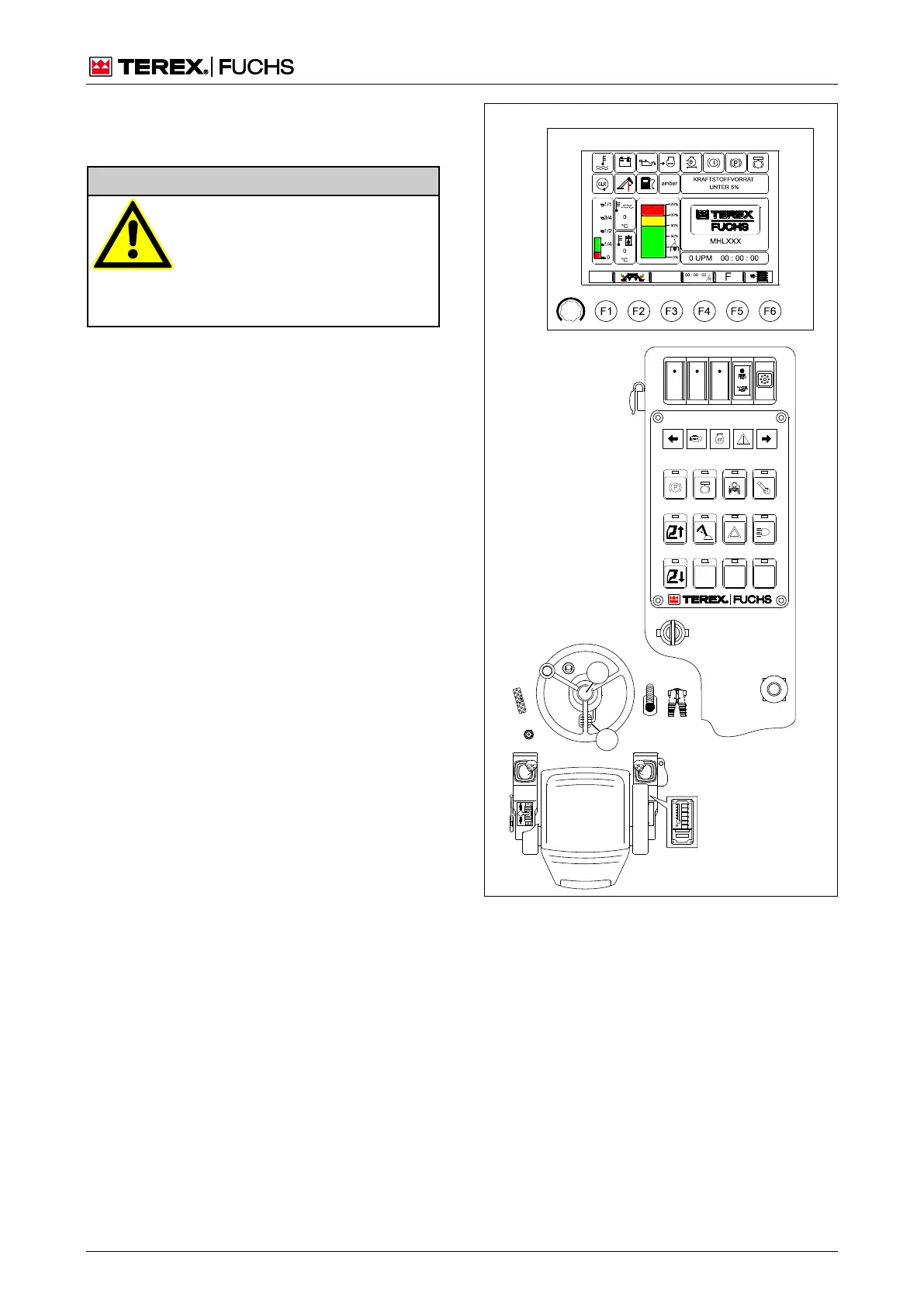

Fig. 76 Adjusting the steering column
