DISPLAY AND CONTROL ELEMENTS 4
MHL380 D 4.61
4.10.8 Interior lighting
The interior lamp (97/2) can be used to light
the cab. An adjustable reading lamp (97/1) is
available for reading the operating instruc-
tions.
â–º
Switch the desired light on or off with the
button toggle (97/3).
4.10.9 Emergency hammer
The emergency hammer (97/4) is located in
the operator’s cab on the right window pillar.
The rear windshield acts as an emergency
exit. In case of an emergency:
â–º
If possible, move the loading machine into
the parking position and switch off.
â–º
Move the seat as far forward as possible.
â–º
Fold in the backrest.
â–º
Completely remove the rear windshield
with the emergency hammer.
â–º
Exit.
4.10.10 Fire extinguisher (optional)
The fire extinguisher (max. 4 kg) is located in
the driver’s cab on the left window pillar.
ATTENTION
Note the manufacturer's information on the fire
extinguisher.
In case of an emergency:
â–º
Open holder (98/1).
â–º
Press in safety button (98/2).
â–º
Press thrust button (983).
MHL-XXXX-310
1
4
2
3

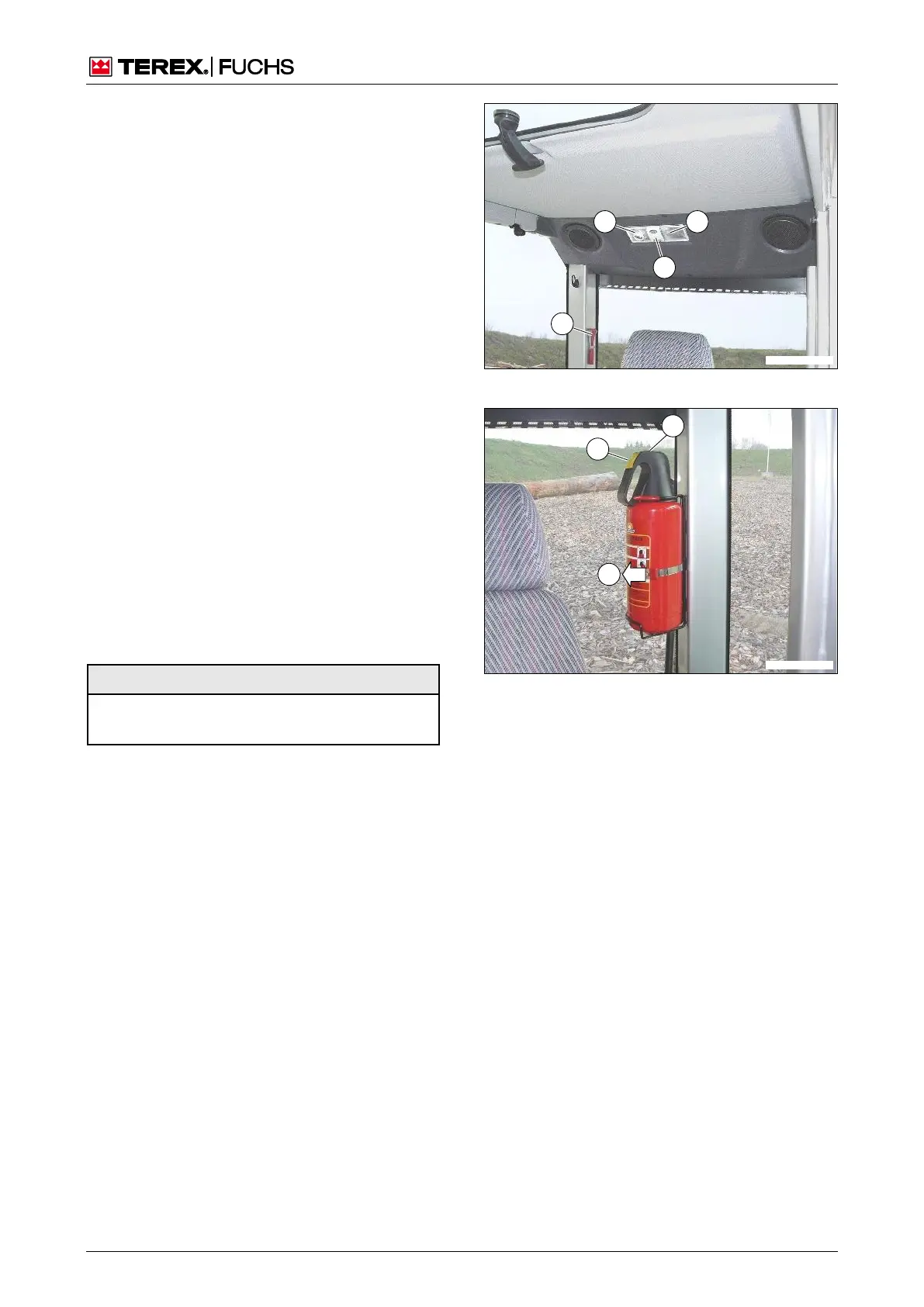

Fig. 97 Emergency hammer/lamp glass
MHL-XXXX-311
2
3
1
Fig. 98 Fire extinguisher
4.10.9
Emerge
ncy
hamme
r
