3 TECHNICAL DATA
3.18 MHL380 D

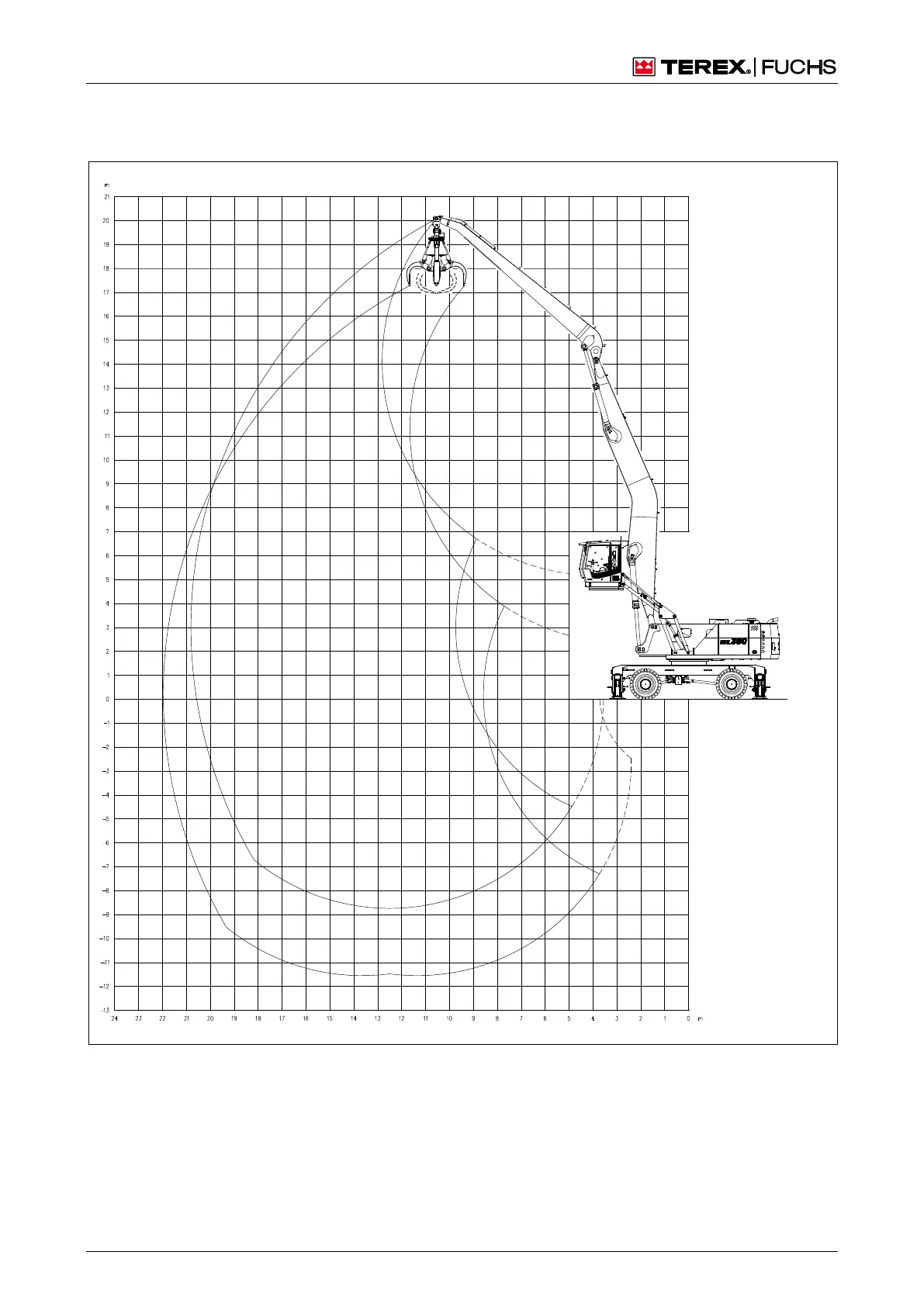

3.13.9 Working range diagram (21 m loading equipment cranked)
Loading equipment: Boom cranked 11.35 m, dipperstick 8.95 m, and cactus grab
340-1680-505380-0101-512380-21 m gekr
Fig. 17 Working range diagram (21 m work equipment offset)
