7 CARE AND MAINTENANCE
7.62 MHL380 D
7.9.11 Adjusting the play of the parking
brake
h Carry out maintenance as described in
chapter 7.8.3 Maintenance and inspection
plan.
►
Release the parking brake (213/65).
►
Remove the screw cap (214/1).
►
Loosen the counter nut (214/3).
►
Screw in the threaded pin (214/2) until re-
sistance is felt (brake pads (215/4) in con-
tact with brake disk (215/5).
►
Screw the threaded pin (214/2) back by
half a turn.
►
Counter with nut (214/3).
►
Screw on the screw cap (214/1) hand-tight.
MHL-XXXX-014
11
12 3

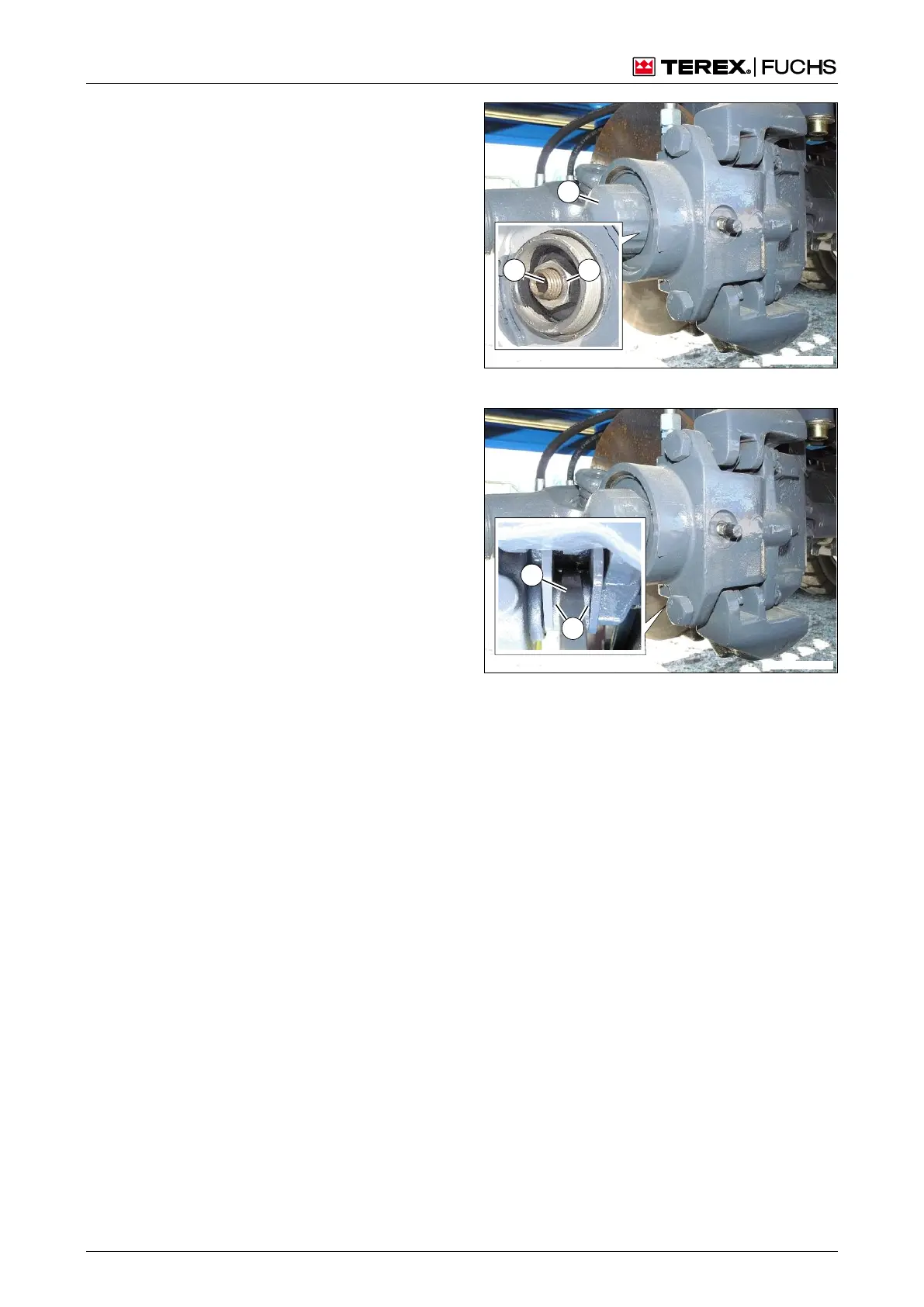

Fig. 214 Adjusting the parking brake
MHL-XXXX-016
5
4
Fig. 215 Brake pads
