FOREWORD 1
MHL380 D 1.7

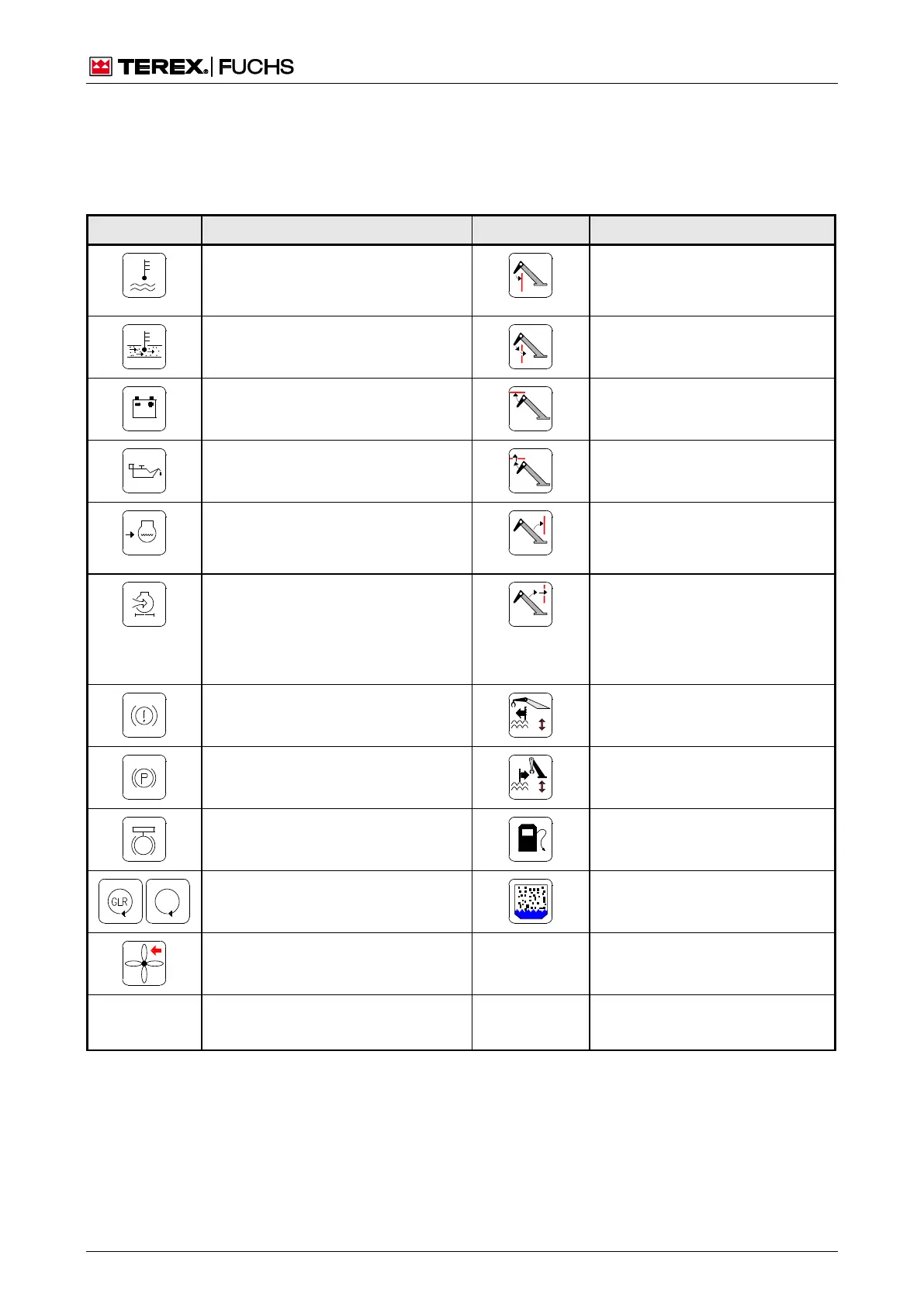

1.7.4 Pictograms
1.7.4.1 Indicators in the multifunction display
The table below explains the meaning of the indicators in the multifunction display. Functions and
displays marked (*) are optional.
Indicator
Description
Indicator
Description
SYM101
Dual assignment:
Coolant temperature
Hydraulic fluid temperature
SYM116
Close range cut-off
active (dipperstick)
SYM102
Charge air temperature
SYM117
Close range cut-off
bypassed (dipperstick)
SYM103
Battery charge control
SYM118
Range limiting
active (dipperstick) *
SYM104
Engine oil pressure
SYM119
Range limiting
bypassed (dipperstick) *
SYM105
Dual assignment:
Coolant level
Hydraulic fluid level
SYM120
Height limitation
active *
SYM106
Dual assignment:
Air filter clogging
Return filter logging
Oil filter clogging in the bypass flow
filters (optional)
SYM121
Height limitation
bypassed *
SYM107
Service brake
SYM122
Boom float function - remote
range *
SYM108
Parking brake
SYM123
Boom float function - close range
*
SYM109
Swing brake
SYM112
Fuel reserve indicator
SYM110
SYM206
LLC
Load limit control –
load limit sensing control *
SYM125
Water in fuel
SYM113
Reversing fan mode *
Not assigned
