4 DISPLAY AND CONTROL ELEMENTS
4.64 MHL380 D
4.10.13 Sockets
A 24 V socket (102/1) is available on the con-
trol panel. A 12 V socket (103/1) is located in
the side lining behind the cab door as an op-
tion.
Devices to be connected must be suited to the
loading machine and be safe and free from
damage. They must be mounted such that the
field of vision is not restricted, all control ele-
ments remain easy to access and they cannot
come loose when the machine is in use.
h Chapter 2.6.2 Additional devices (wireless,
mobile, radio)
4.10.14 Bottle holder and lunchbox
A lunchbox (104/1) and bottle holder (104/2)
are located behind the driver's seat. Both are
connected to the heating and air conditioning
system via a controllable vent. The amount
and temperature of ejected air corresponds to
the setting for cab air on the lever of the heat-
ing/air conditioning system.
The lever (104/3) opens, meters or seals a
vent on the heating and air conditioning sys-
tem.
Temperature control
â–º
Set the heating and air conditioning system
to the desired temperature.
h Chapter 4.9 Heating and air conditioning
â–º
For maximum temperature control, slew
the lever (104/3) as far left as it will go. For
lower temperature control, slew to an in-
termediate point.
No temperature control
â–º
If cooling or heating is not wanted, slew the
lever (104/3) as far right as it will go.

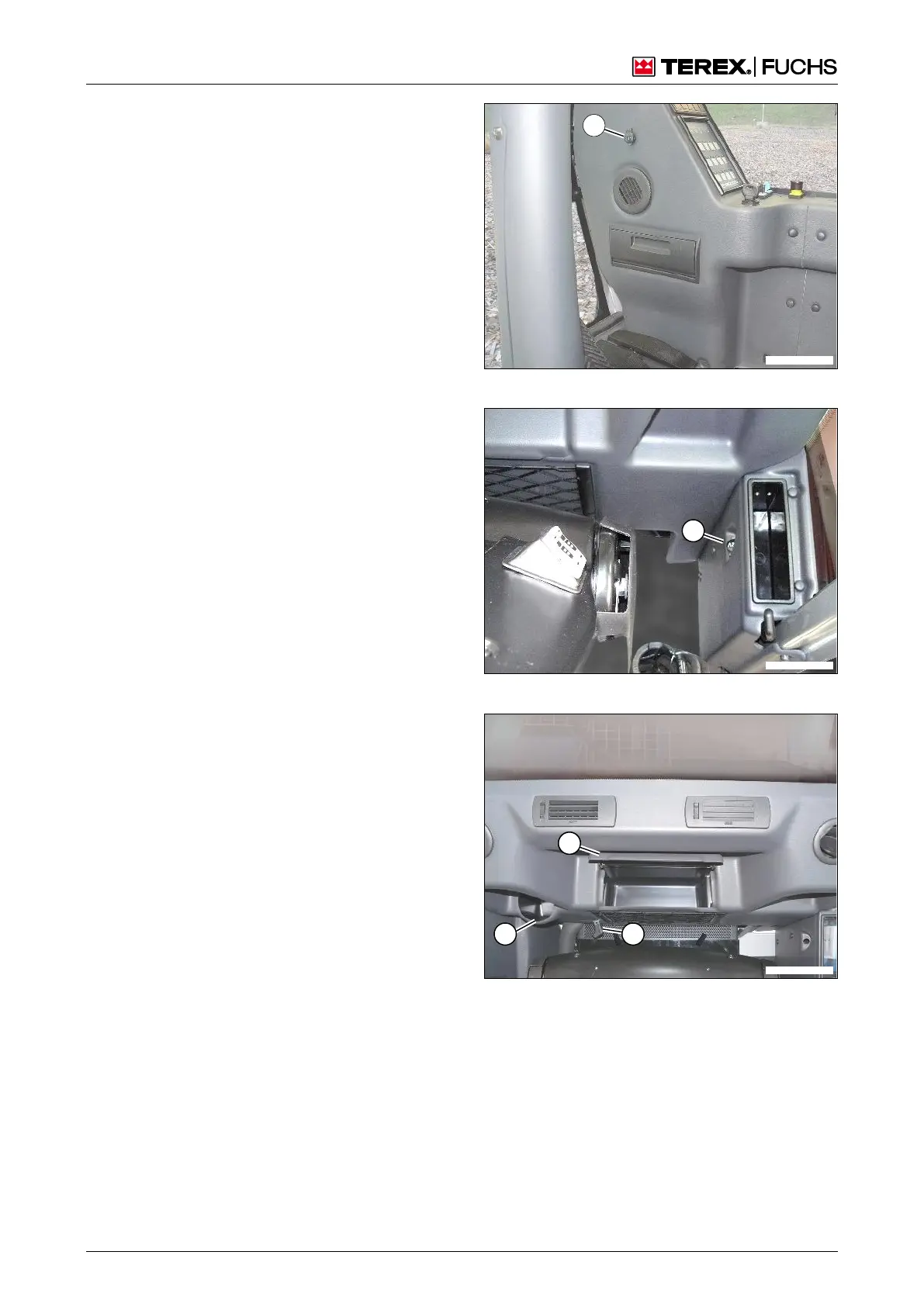

Fig. 102 24 V socket
Fig. 103 12 V socket (optional)
Fig. 104 Bottle holder and lunchbox
