FOREWORD 1
MHL380 D 1.13

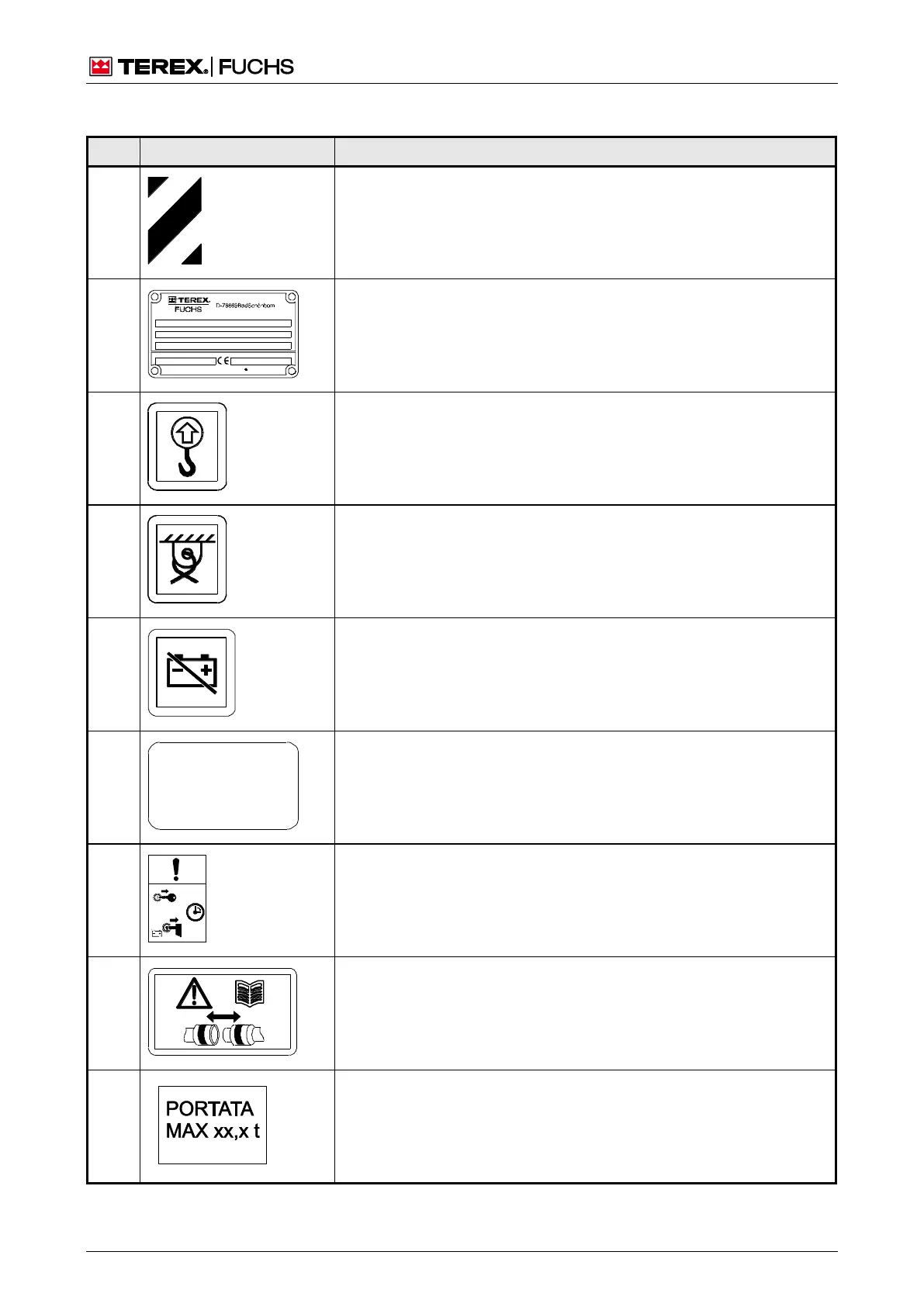

1.8.2 Description
Item
View
Description
1
B SB509 31
Danger symbol
Indicates the counterweight as a danger area when the uppercarriage
is turning (only for Russia).
2
B SB509 49
MADE IN GERMANY
5 300 655 001
FAHRZEUGTYP UND S ERIENBEZEICHNUNG FZ.-IDENT.NR.
MIN. EINSATZGEW ICHT [kg]
ZUL. VORDERACH SLAST [kg]
MAX. EINSATZGEWI CH T [kg]
ZUL. HINTE RACHSLAST [ kg ]
MOTORLEISTU NG [kW] BAUJAHR
Ter ex Deu tsch land G mbH
Type plate
Contains selected information to identify the machine and its technical
data.
h Chapter 1.5 Type plate and vehicle identity number
3
BSB 50929
Information sign for loading by crane
Indicates the lifting points on the outrigger feet for lifting the machine
to load by crane.
h Chapter 6 Recovery, Loading, and Transporting
4
B SB509 30
Information sign for lashing
Indicates the lashing points for transport on the front and rear.
h Chapter 6 Recovery, Loading, and Transporting
5
B SB509 37
Information sign for battery cut-off
Indicates the battery isolator switch. Note information in the operating
instructions.
h Chapter 4.6.1 Battery isolator switch
6
B SB509 50
Vor Betaetigen des
Batterie Trennschalters
Heizgeraet abschalten
und Nachlauf abwarten
Warning plate for supplementary heating (optional)
Information on the relationship between the supplementary heating
and the battery: "Before operating the battery isolator switch, switch off
the heater and wait for the overrun period to end".
h
Chapter 4.9.2 Supplementary heating (optional)
7
1.
2.
3.
>15 se c
BSB 50924
Risk of machine damage
If the battery isolator switch is switched off while the machine is run-
ning, this can cause damage to the machine.
1. Run down and then switch off the diesel engine. Remove ignition
key. 2. Wait at least 15 seconds. 3. Switch off the battery isolator
switch and remove the key.
8
BSB 50932
Warning plate for quick couplings
Release hydraulic pressure before disconnecting. Note information in
the operating instructions.
h Chapter 7.3 Discharging residual pressure in the hydraulic circuit
Tool manufacturer's documentation
9
Schild009
Carrying capacity sign (only for Italy)
Information about the maximum right and left carrying capacity on the
dipperstick.
h Chapter
64H3.13 65HWorking range of the machine
