1 FOREWORD

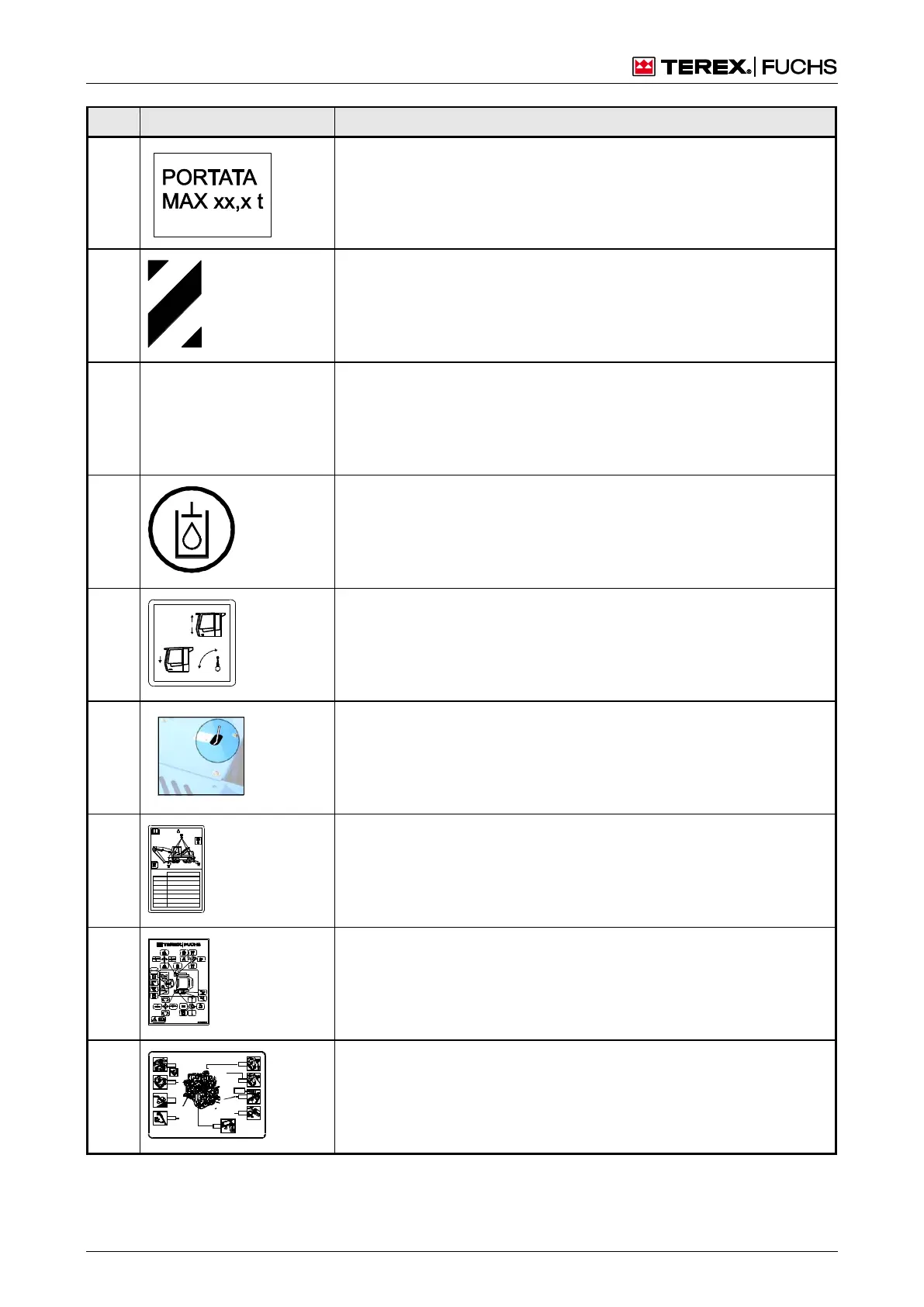

1.14 MHL380 D
Item
View
Description
10
Schild009
Carrying capacity sign (only for Italy and FQC)
Indication of the maximum right and left carrying capacity on the
boom.
h Additional operating instructions
11
B SB509 31
Danger symbol
Indicates the cab - cab lift mechanism - uppercarriage danger area.
h Chapter 4.11 Cab which can be raised and moved forward hydrau-
lically
12
Not available.
13
B SB509 41
Information sign for hydraulic oil
Indicates the filler opening for the hydraulic oil.
h Chapter 7.9.13 Hydraulic system
14
B SB509 40
Information sign for emergency lowering
Indicates effect of emergency lowering valve lever on cab movement.
h Chapter 4.11 Cab which can be raised and moved forward hydrau-
lically
15
Schild024
Emergency lowering valve on uppercarriage
Indicates the emergency lowering valve's adjustment handle with red
paint.
h Chapter 4.11 Cab which can be raised and moved forward hydrau-
lically
16
B SB509 42
(103 ,1 70 )46 800MH L 360
(147 ,7 00 )
67 000MH L 380
MH L 350 35 500 (78, 26 0)
MH L 340 29 000
(63, 93 0)
MH L 335 25 000 (55, 11 0)
MH L 331 23 500 (51, 80 0)
(41, 88 0)
(lb)kg
19 000MH L 320
5 358 60 9 86 0
kg (lb)
Information sign for loading by crane
Using symbols, shows the crane loading and lists the weight of loading
machines by type. Indicates details in the operating instructions.
30
BSB 50943
Information sign for control unit
Indicates the most important control elements in the cab.
h Chapter 4 Display and control elements
Chapter 5 Work operation
31
B SB509 45
Information sign for diesel engine
Lists the key maintenance work specified by the engine manufacturer.
h Chapter 7 Care and Maintenance
