FOREWORD 1
MHL380 D 1.15

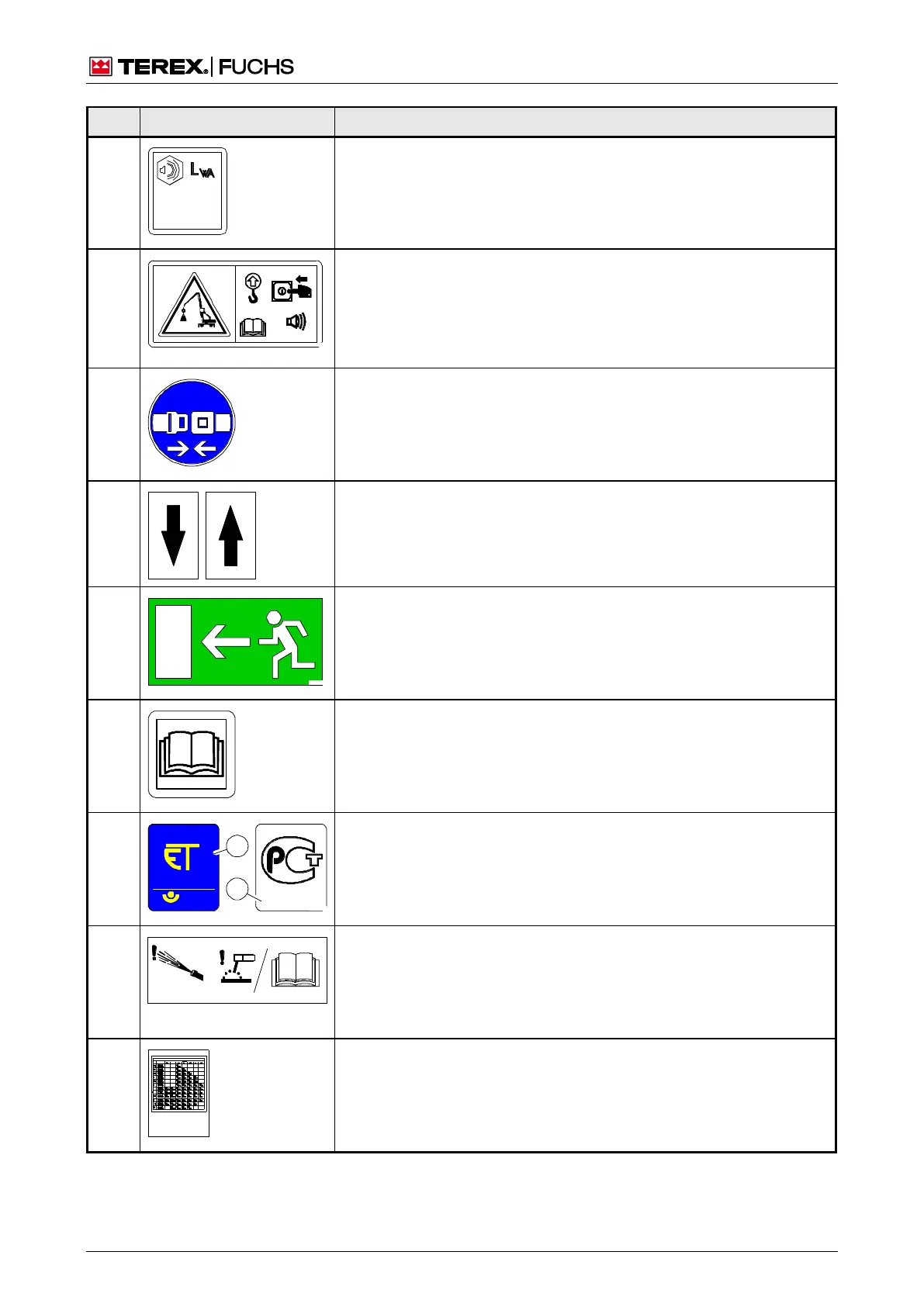

Item
View
Description
32
B SB509 44
Information sign for sound power level
Indicates the machine's sound power level.
h Chapter 3.12 Noise level values
33
0 I
B SB510 21
Information sign for the overload warning device
Refers to the black key switch.
Position 0: Overload warning device deactivated
Position I: Overload warning device activated
h
Chapter 5.1.14 Overload warning device for hoisting (optional)
34
B SB509 33
Mandatory sign for safety belt
Indicates that the safety belt must be worn in the cab.
h Chapter 4.8 Operator’s stand
35
B SB509 36
Information sign for accelerator pedal
Indicates the direction of travel for the accelerator pedals. Note the
effect on the position of the uppercarriage!
h Chapter 4.1 Overview of the display and control elements
36
B SB509 34
Escape sign for emergency exit
Indicates the rear window as the emergency exit.
h Chapter 4.10.9 Emergency hammer
37
B SB509 35
Location of operating instructions
Indicates the storage location of the operating instructions.
38
1
BSB 50947
2
Certification labels
1 All loading machines except Russia
2 For Russia only
39
B SB509 09
Risk of machine damage
Cleaning using high-pressure water, or welding on the machine, may
lead to damage of the electrical components.
h Chapter 2.3.5 Welding on the machine
Chapter 7.10 Care and cleaning
40
B SB509 46
Information sign for carrying capacity table (depending on order)
Lists the SWLs (safe working loads). The sign may or may not be pre-
sent depending on the country of delivery.
h Chapter
64H3.13 65HWorking range of the machine
