4 DISPLAY AND CONTROL ELEMENTS
4.48 MHL380 D
Control elements for driver's seat
MHL-XXXX-601
2
1
3
5
9
13
11
12
4
14
4
10
6
8
7

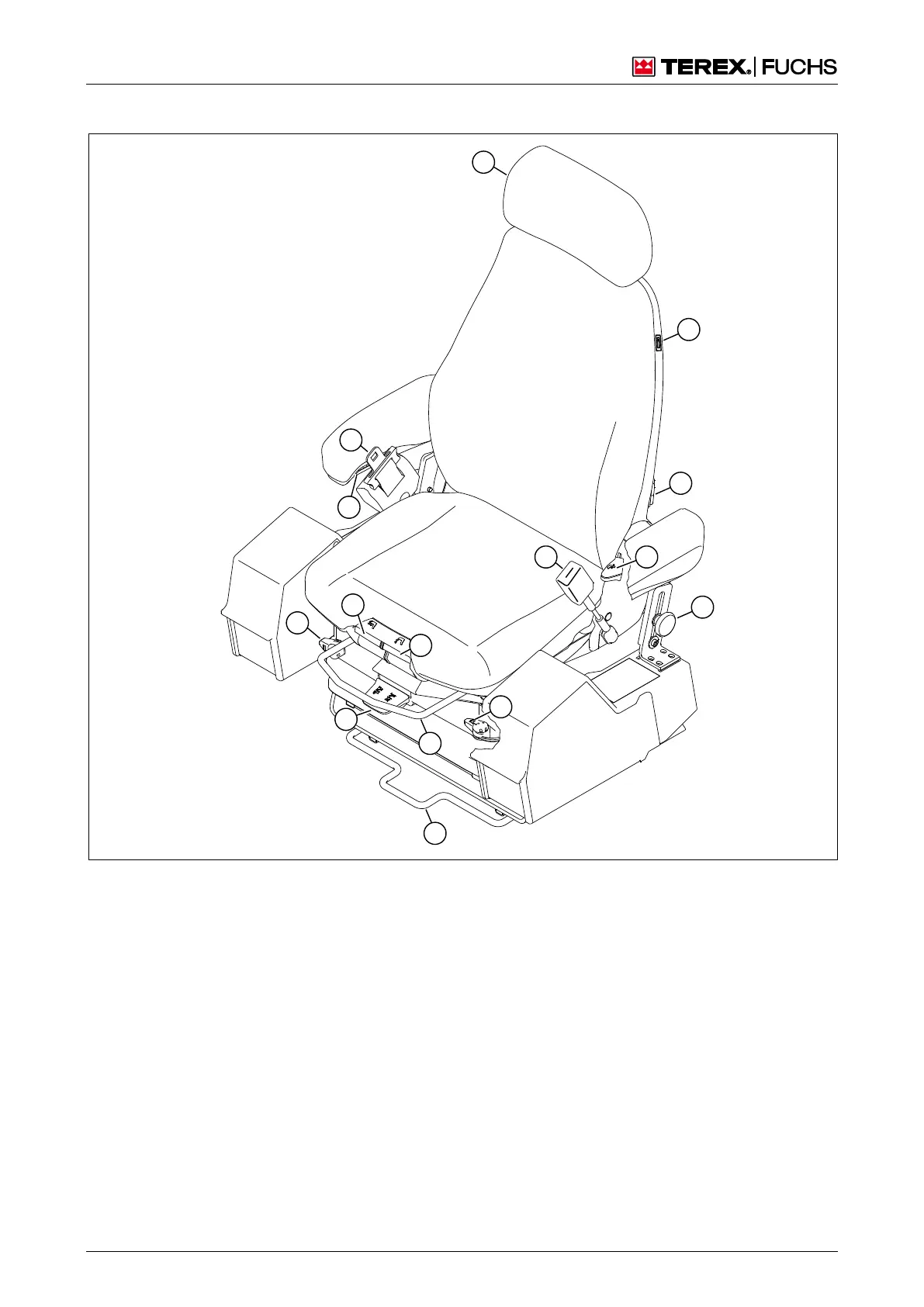

Fig. 75 Comfort driver’s seat
1 Rocker switch for heated seat (optional)
The heated seat switches off automatically when the
temperature is reached.
Rocker switch for upper and lower lumbar support
tilt forward: lumbar part round;
tilt backward: lumbar part straight
Handle for backrest adjustment (tilt)
Two point safety belt
Hand wheel for armrest height
Stop lever for horizontal spring system (reduces hori-
zontal vibrations in direction of travel)
Lever locked in place backward: seat locked in place
Lever set forward: seat not locked in place
Handle for longitudinal adjustment of entire seat
8 Handle for longitudinal adjustment of seat (upper part)
9
Handle for combined height and body weight adjustment
Press handle briefly: weight is adjusted automatically
Raise or press handle: adjust height
0 Handle for seat cushion adjustment (tilt)
1 Handle for seat depth adjustment (leg rest)
2 Handle for shock absorber
Turn lever towards cab door: hard
Turn lever upwards: medium
Turn lever away from seat: soft
3 Armrest tilt
4 Headrest
