Quadra 4 Operator Manual
Tomtec
105

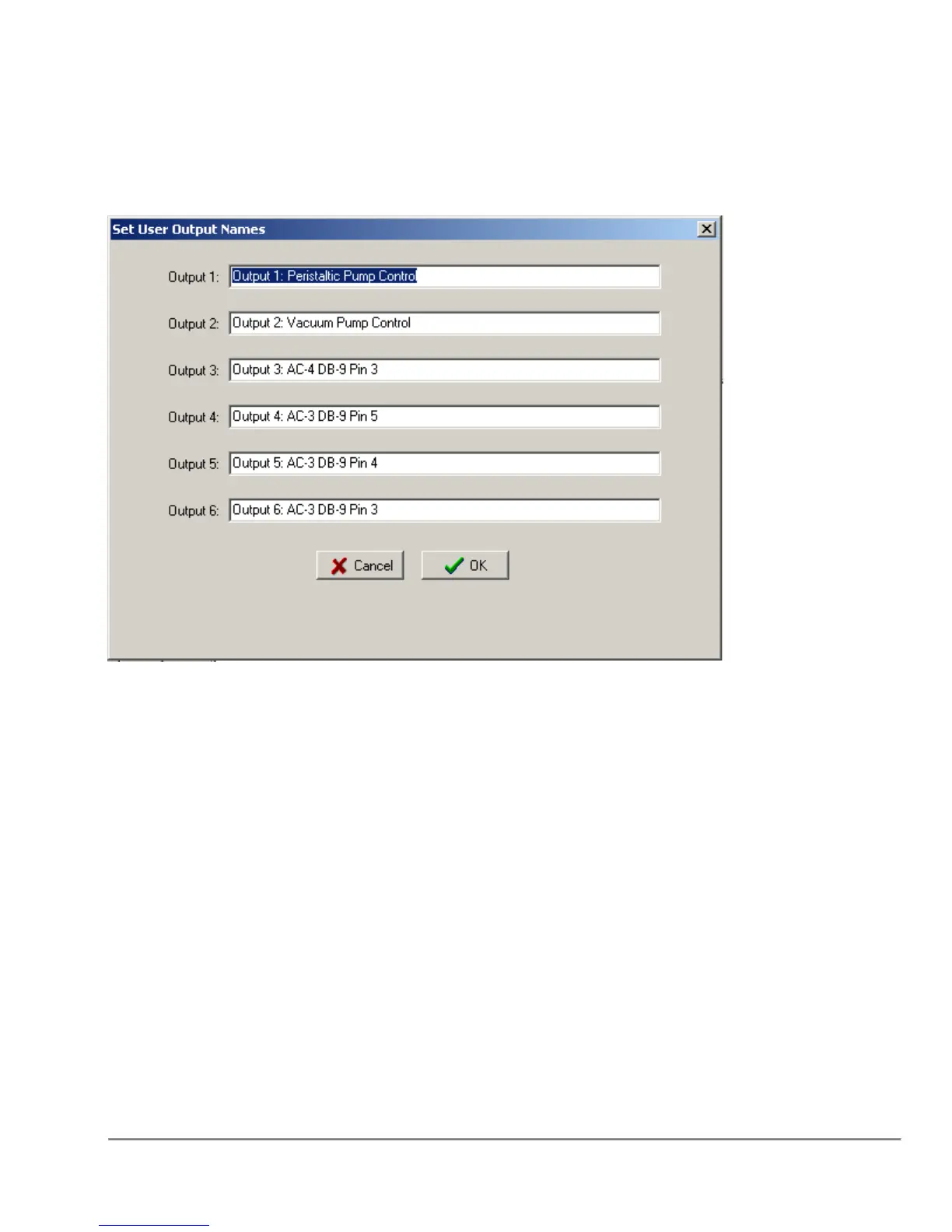

5.6 Set User Defined Output Names
This utility allows the user to assign a name to outputs 1 to 6.
The names can be up to 50 characters in length. Default names are shown.
Note if the Quadra AC Control Interface Module is used, right output 1 will control the
vacuum pump, and right output 2 will control the ultra sonic tip wash pump. Outputs
three(3) and six(6) are used by the External Device program operation.
