Quadra 4 Operator Manual
Tomtec
114

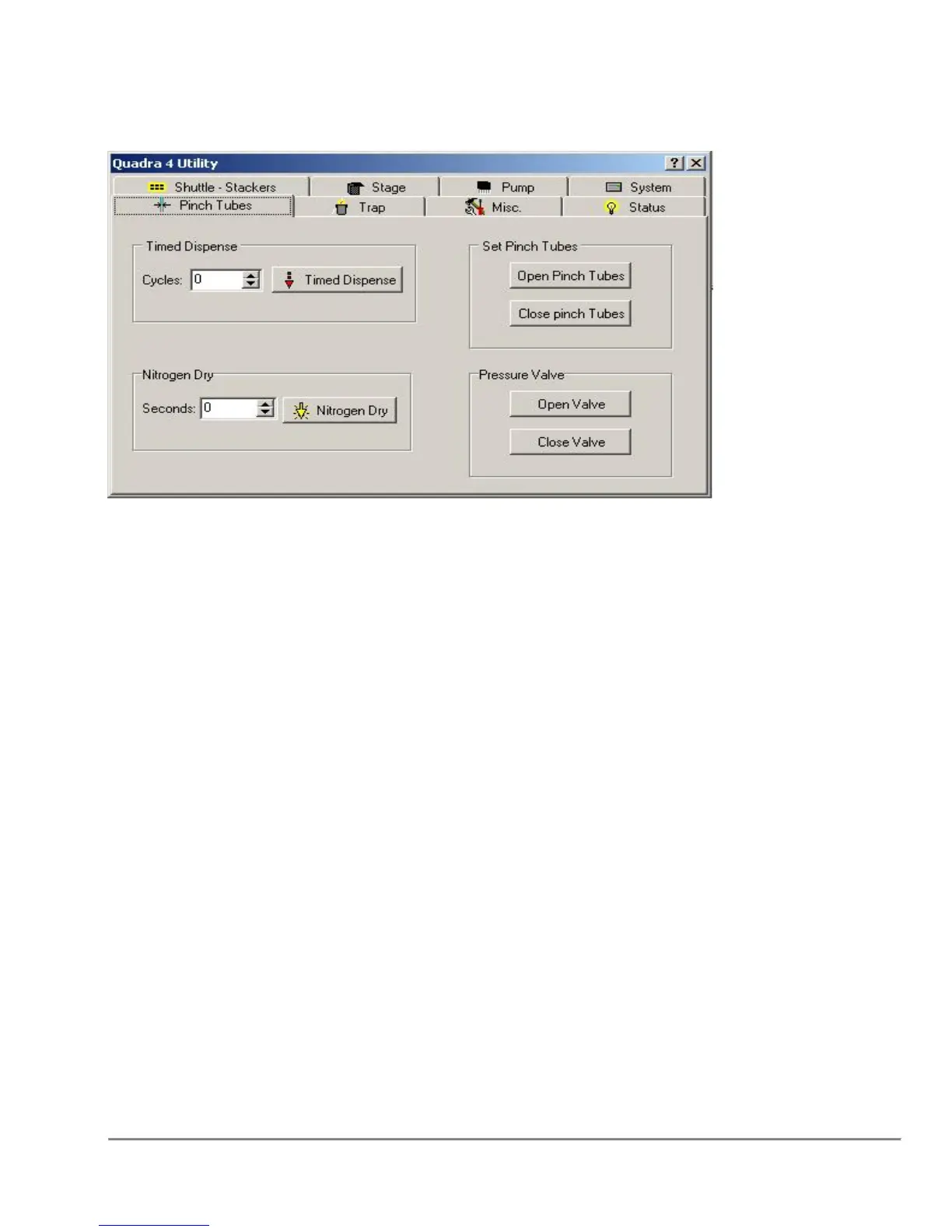

6.3 Pinch Tubes
Timed Dispense
Timed Dispense will dispense air or reagent for the specified number of cycles
in the adjacent edit box. Note: The amount of volume dispensed per cycle is
controlled by the pressure in the system air tank.
Set Pinch Tubes
Open Pinch Tubes will open the inch tubes.
Close Pinch Tubes will close the pinch tubes.
Pressure Valve
The pressure valve can be closed to keep the compressor from constantly running.
