9.6 System Parameters - Shuttle Alignment Utility
Remarks
Shuttle Alignment is performed at the factory on each machine before it is shipped out.
However, it some cases it may be necessary to adjust this alignment.

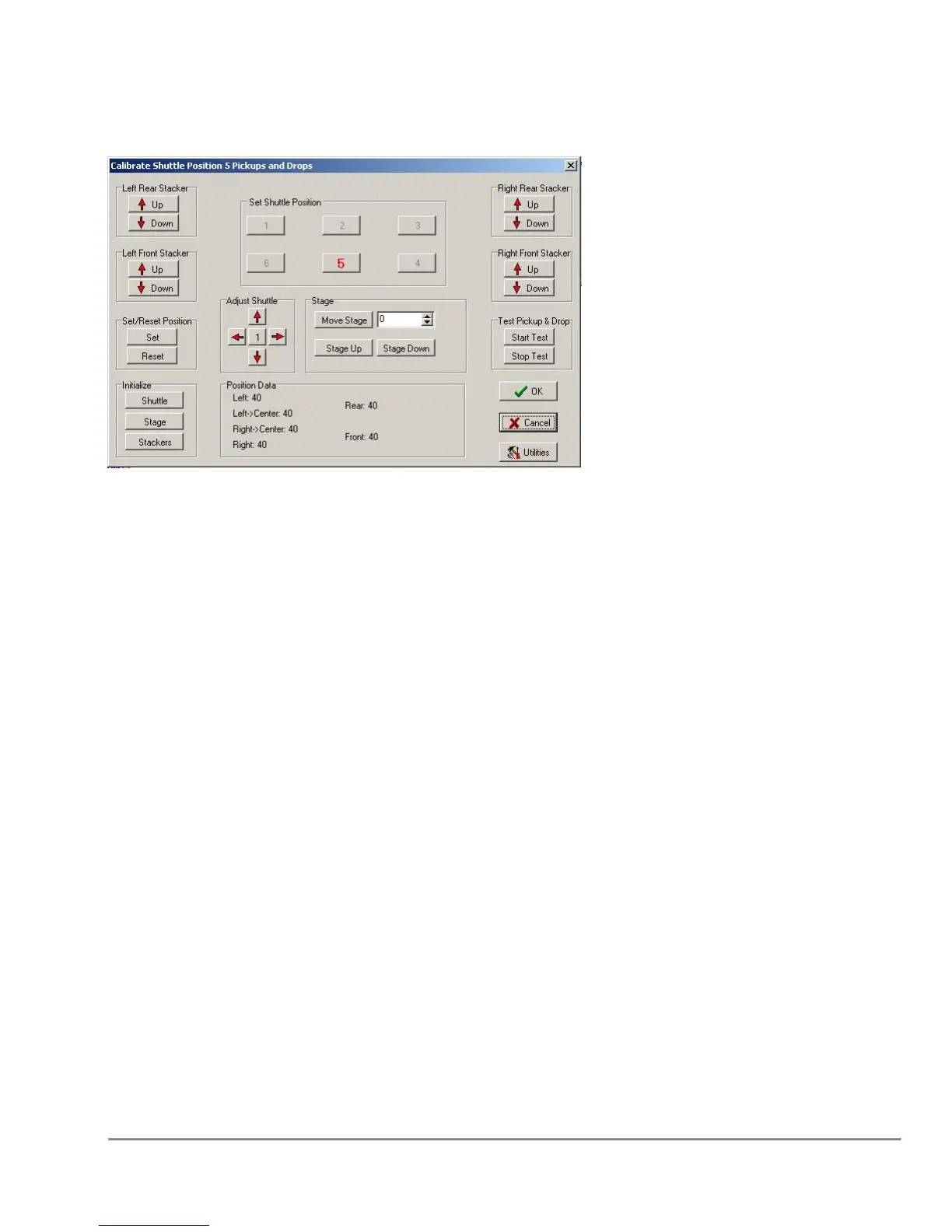

The Shuttle Alignment Utility allows the user to set the stage/shuttle/pump
alignment. The "Adjust Shuttle" buttons will jog the shuttle by the number of
steps shown in the center button. Clicking on the center button will increase the
jog step rate. The Set/Reset buttons will save or recall the position data. The test
program will go through shuttle positions 1 to 6 continuously until aborted by the stop
button.
Note: that once the end positions, Front, Rear, Left and Right, are set. They
should be the same for all shuttle positions
