Quadra 4 Operator Manual
Tomtec
206
a 384 well plate that correspond to a single well in a 96 well plate. For a 384 head,
move the head laterally to align the tips to the centers of the wells.
Confirm that the head will still index 96 to 384 without the tips hitting the plate.
Insure that straight tips are used on the 450µL head.
Tighten the hold down bolts then recheck the alignment and indexing.
Secure the B Q96 control board mounting plate, if necessary, and install the top
cover.
NOTE: The software will configure to the head installed.

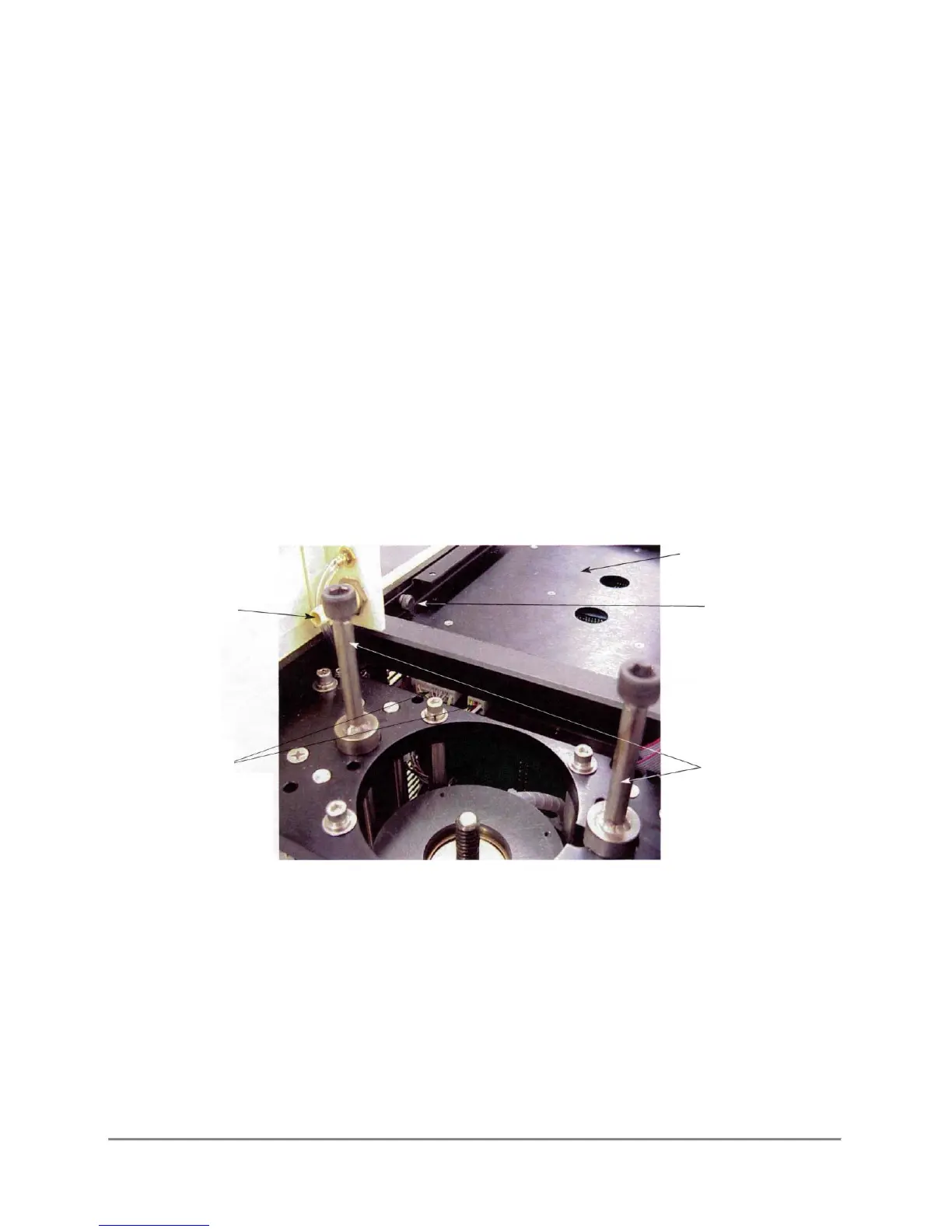

3.0 Head Installation
Q96 “B” board
mounting plate
3/8” allen
wrench head
Electrical
Connectors (2)
Hose Fitting
To Next Page
