Quadra 4 Operator Manual
Tomtec
126
The Sample Volume is the initial volume aspirated from the Source plate and
transferred to the Destination plate to achieve a serial dilution.
The Dilution Volume is the pre-existing volume in each well of the Destination plate.
The Dilution Factor is calculated from the Sample and Dilution volumes.
Serial Dilution Tip Arrangement
The tip arrangement group box allows for the selection of either a custom or preset tip
arrangement. The preset arrangements set the number of dilutions and initial row or
column offset. The custom tip arrangement allows the operator to set the number of
dilutions and initial row and column offset.
Next
The "Next >" button moves the wizard to the next page.

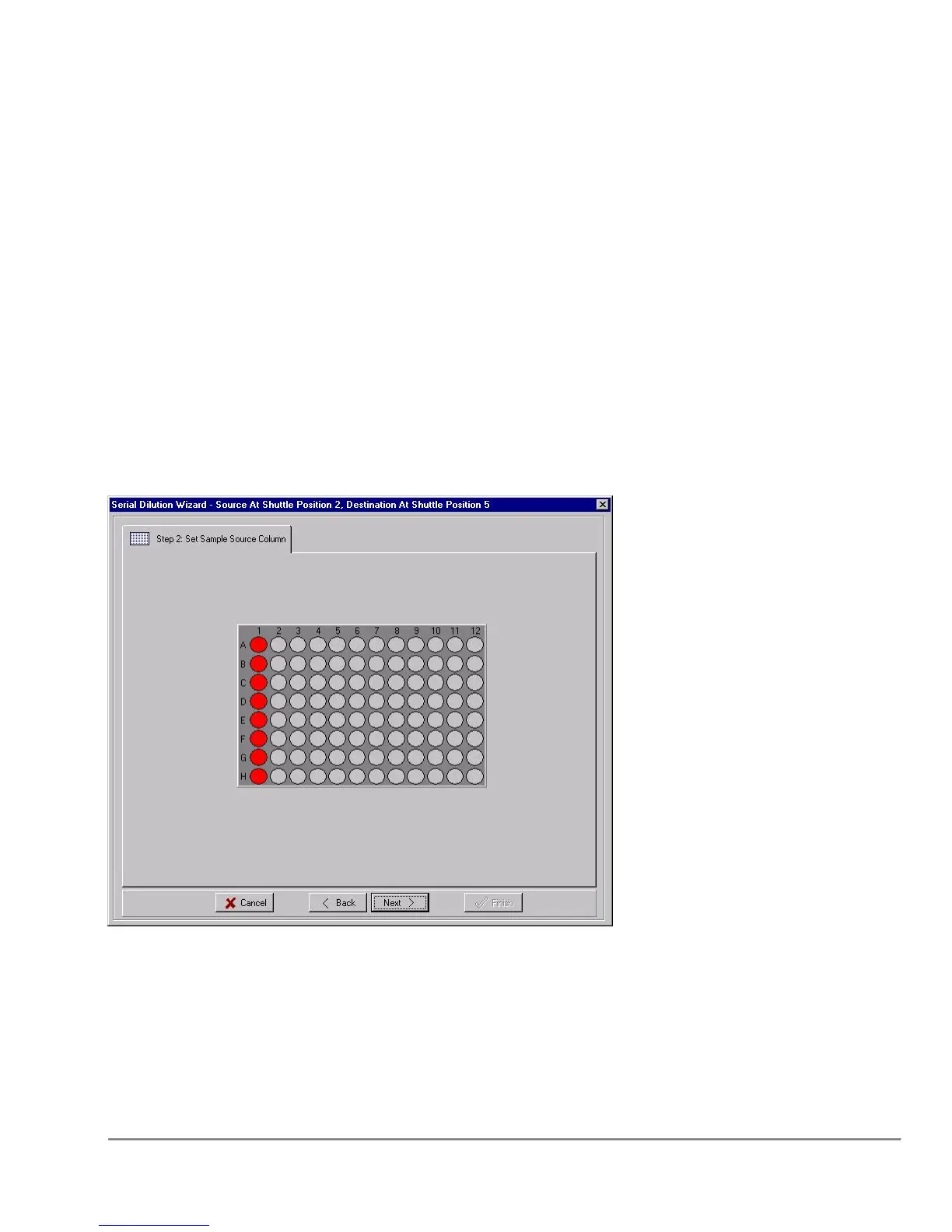

7.1.2 Set Source Row/Column
If the source plate is a 96 well plate, and a preset tip arrangement is selected, the row
or column for the initial Sample Volume aspirate can be selected by clicking on the plate
graphic.
Back
The "< Back" button moves the wizard back to the previous page
