Quadra 4 Operator Manual
Tomtec
49
When the time has expired the shuttle will flash.
Note that once the shuttle warns and alerts, the timer can be canceled by the cancel
button, or double clicking on the shuttle.

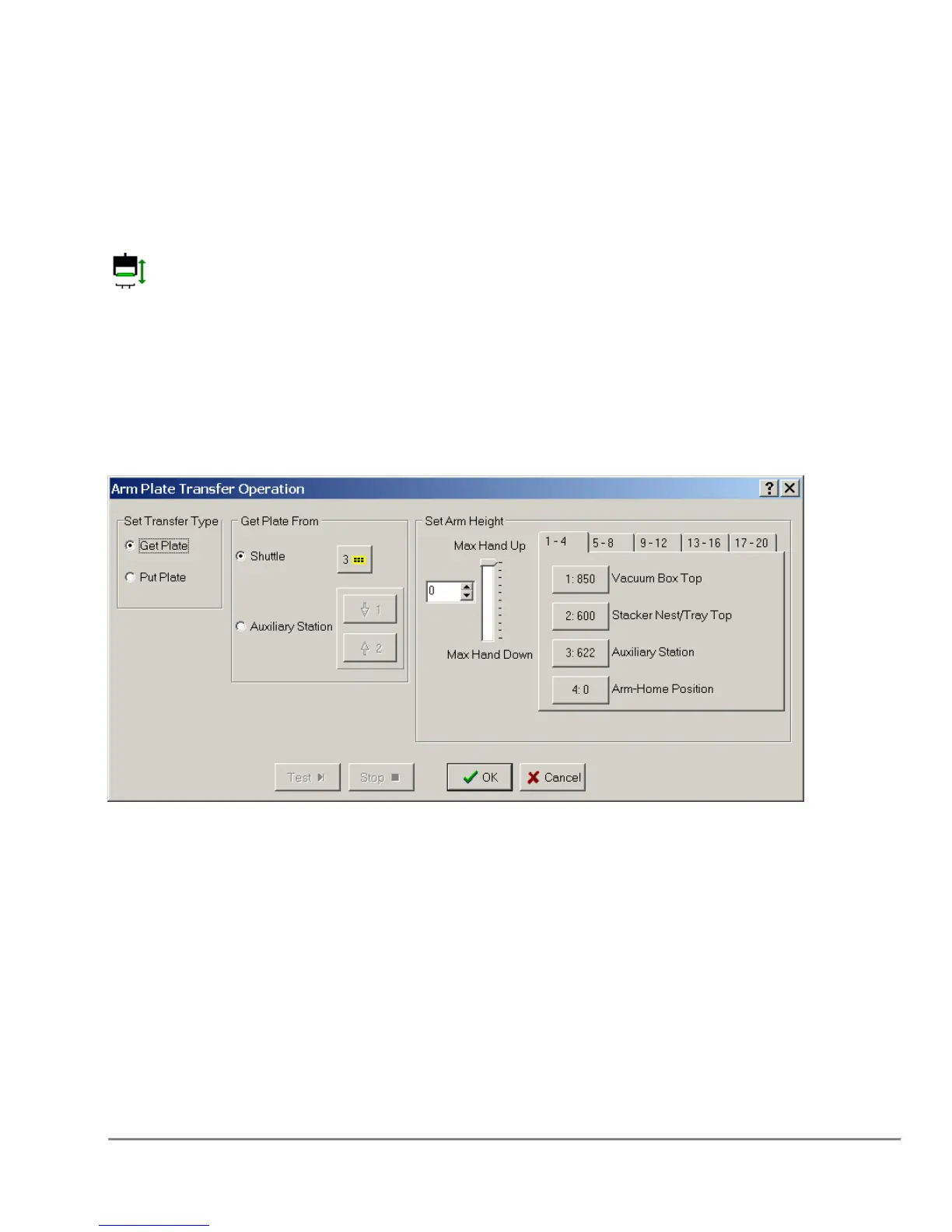

3.2 Arm Plate Transfer Operation
The arm plate transfer operation is used to get plates from and put plates to a stacker
nest, vacuum box, or auxiliary station.
Conditions
Requires a plate/reservoir nest Only shuttle positions 3 & 4 are valid for the Quadra 4
Remarks
Set Transfer Type
Indicates whether the hand is getting or putting the plate.
Get Plate From / Put Plate To
Indicates whether the plate is being transfer from/to the shuttle or auxiliary station.
Shuttle
Used to change the shuttle position that should move under the arm. The number on
the button indicates the currently selected position (see Select Shuttle Position ).
