Quadra 4 Operator Manual
Tomtec
111
6.0 Utility
6.1 Shuttle/Stacker

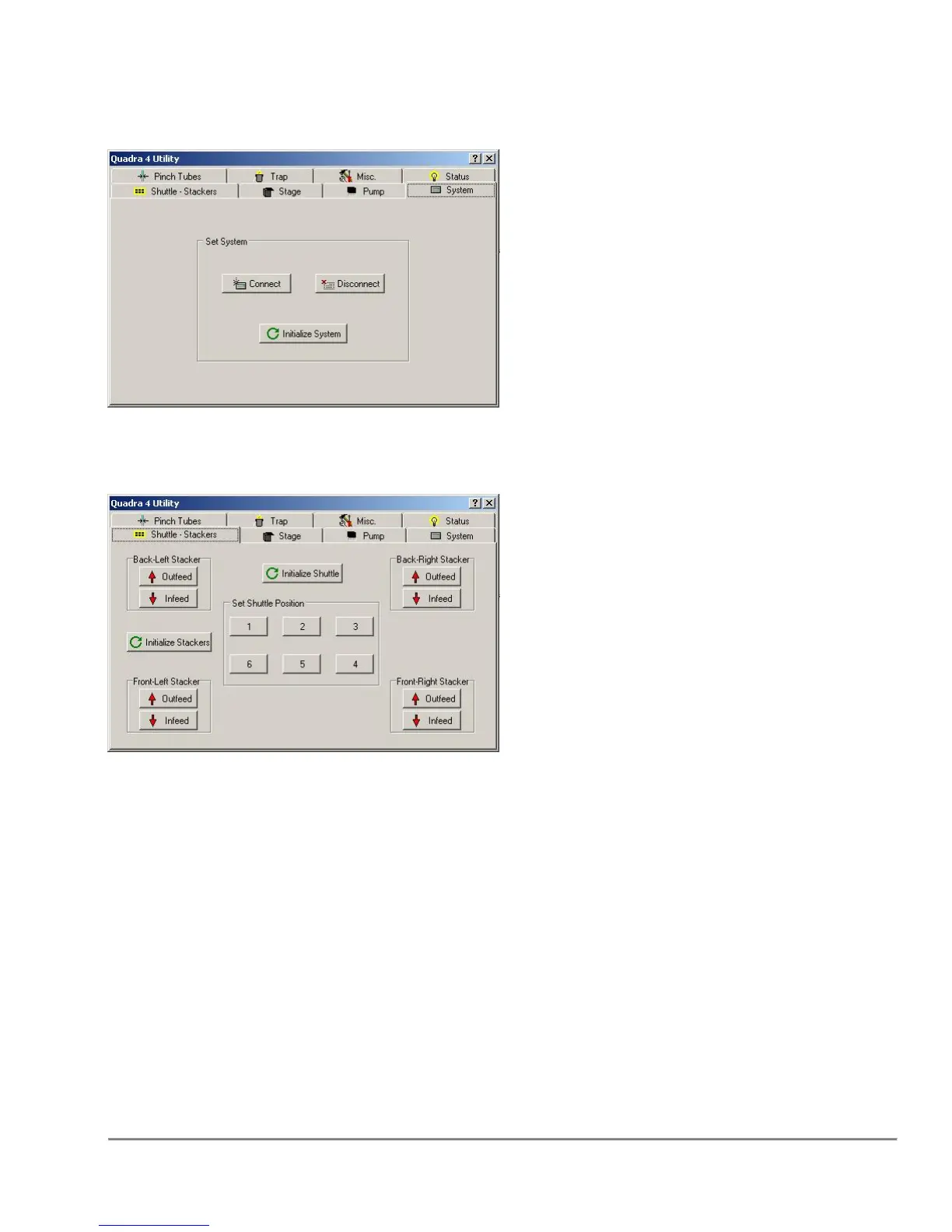

Set Shuttle Position
Select the button to move to the desired shuttle position. Initialize Shuttle will reset the
shuttle and move to position 5. This would be useful in the event that a shuttle position
error has occurred.
Stacker
Outfeed will send a plate from the nest into the selected stacker.
Infeed will send a plate to the nest from the selected stacker. Stackers that are ‘lid
capable’ will have an additional push button that when down will disable the lid handling
capability. This is necessary for thin plates that do not have lids.
Initialize Stackers will reset all stacker elevators to the down position. This
would be useful in the event of a stacker lost or interlock error has occurred.
