Quadra 4 Operator Manual
Tomtec
29
When using the "Displayed and Enabled" option, an error message will be displayed
when an invalid choice is selected.

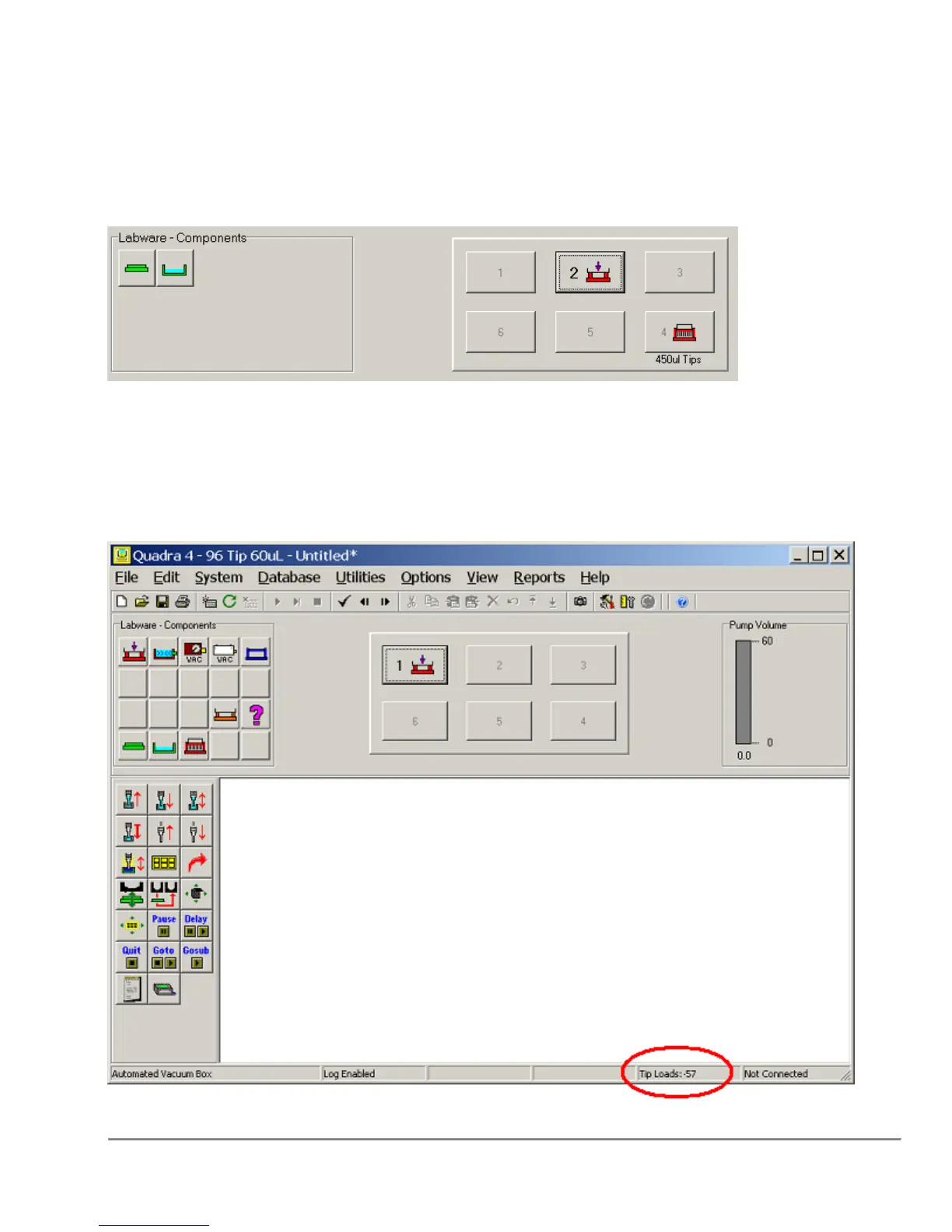

Is the example below, the Labware Icons were chosen to be displayed as "Icons Only"
and the invalid choices are set to be "Not Shown".
Shuttle Position 2 is highlighted (as shown above) which already contains a Stacker
Nest. Therefore, the only valid Labware choices are Microplates and Reservoirs thus
these are the only two icons shown.
1.2.5 Tip Load Counter
