Quadra 4 Operator Manual
Tomtec
79

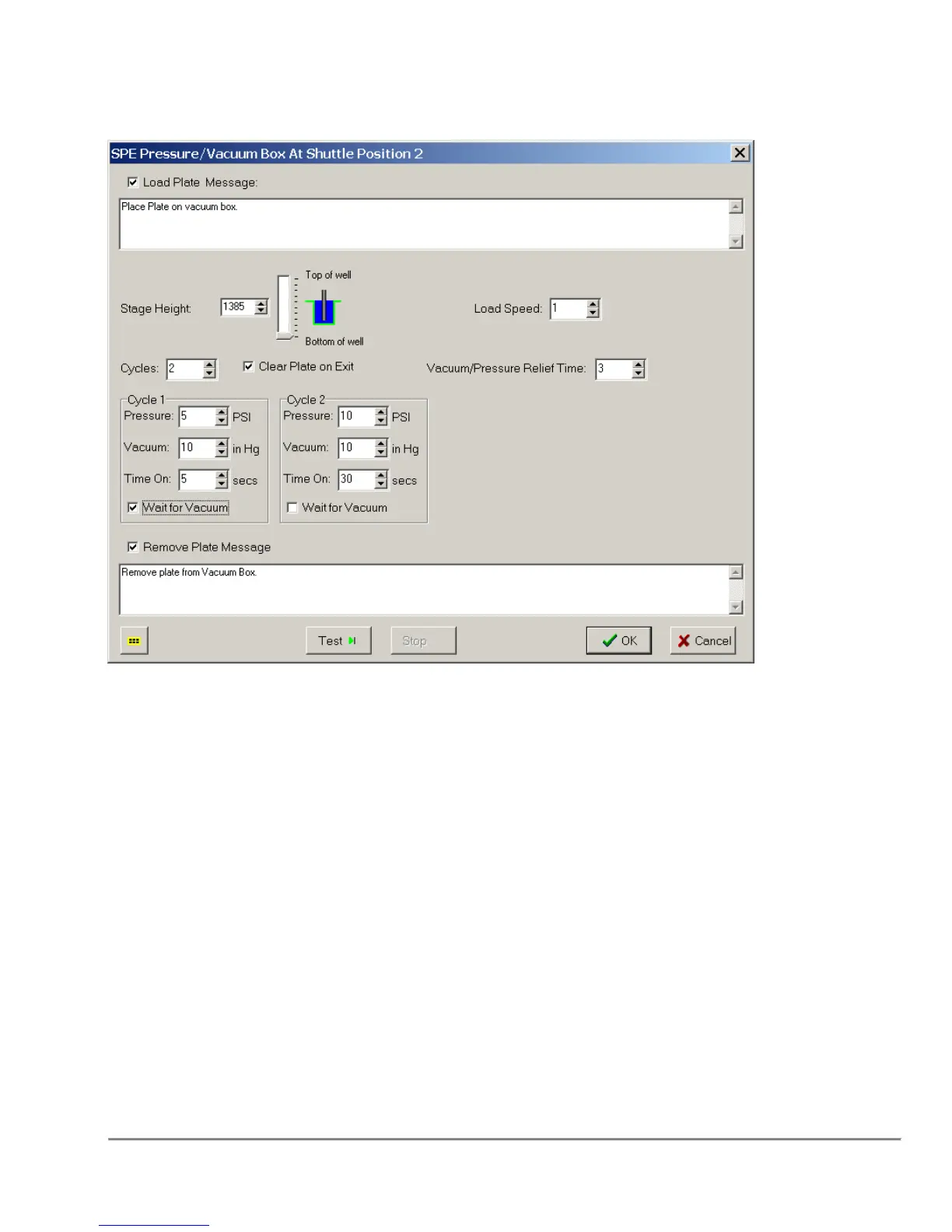

Remarks
Plate Load Message
Message to prompt the operator to prepare for this function.
Stage Height
Height to move the vacuum box/plate to the pump pressure fixture. Note that the stage
will force the vacuum box/plate into the pressure fixture, because of this the STAGE
SAFETY is bypassed.
Cycles
The function can do up to four pressure/vacuum cycles. The cycle can operate both
vacuum and pressure or either. To turn off either set the value to zero.
Clear Plate on Exit
When checked, a puff of air will be cycled to free the plate from the pump pressure
fixture.
Vacuum Pressure Relief Time
Time required to bleed off the vacuum/pressure to free the plate from the vacuum box.
