9. APPENDICES
9. APPENDICES
9.1 LIST OF AUXILIARY LENS AND MOUSE NAVIGATION
AUXILIARY LENS

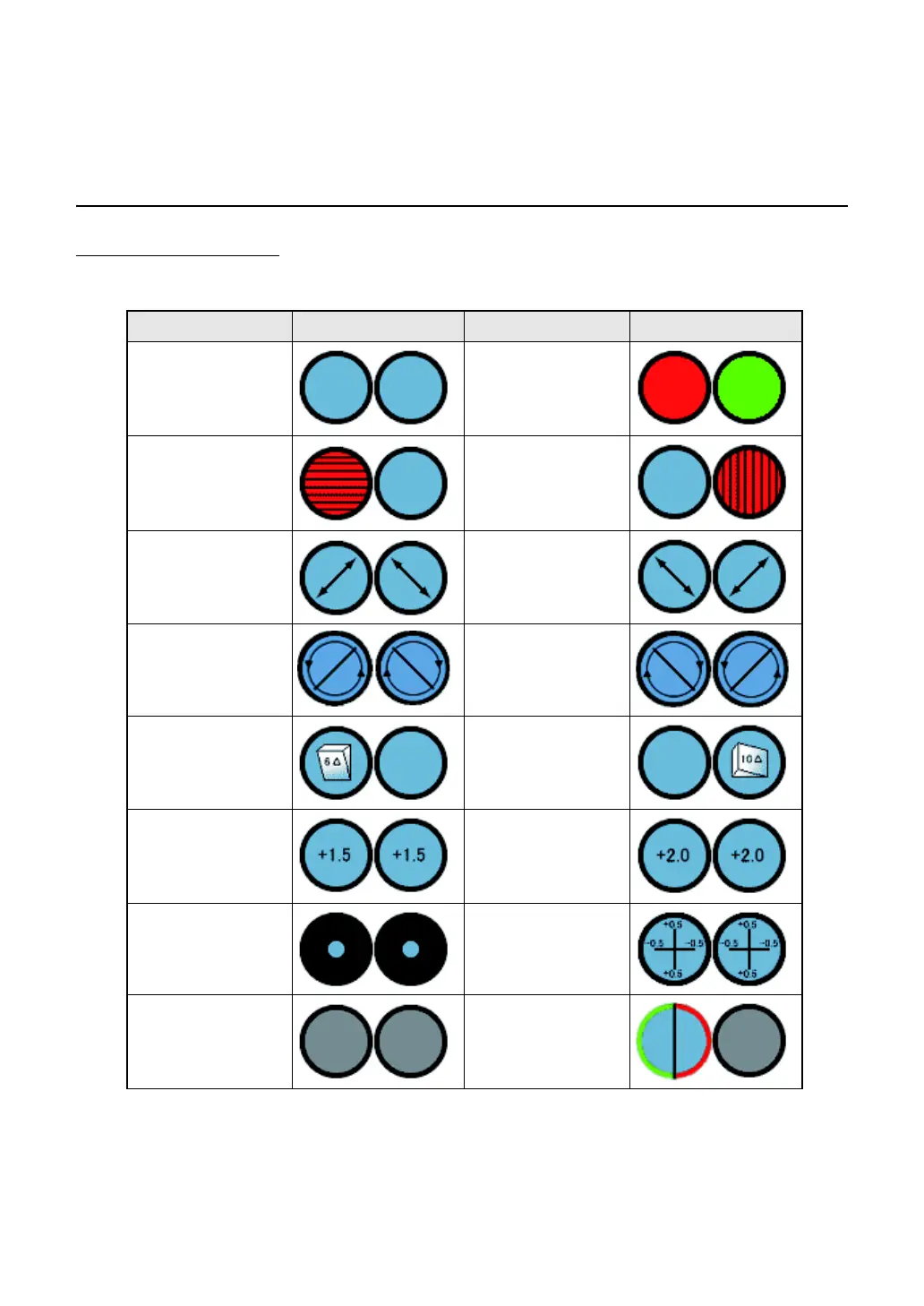

The following table shows the icons of the auxiliary lens that are displayed on the test screen.
Status/lens Image Status/lens Image
Open Red/green filter
Right eye:
Horizontal Mad-
dox
Left eye:
Vertical Maddox
Linearly polarized
filter (Right:45,
Left: 135)
Linearly polar-
ized filter (Right:
135, Left: 45)
Circularly polar-
ized filter (Nor-
mal rotation)
Circularly polar-
ized filter
(Reverse rotation)
Right eye 6-
prism: Base up
Left eye 10-prism:
Base in
Retino: +1.50D Retino: +2.00D
Pinhole (1.5mm)
±0.5D Cross cyl-
inder (for measur-
ing ADD)
Close (Occluding
plate)
TOPCON cross
cylinder lens
