Topcon Compu-Vision CV-5000 User Manual

36
1. BEFORE USE

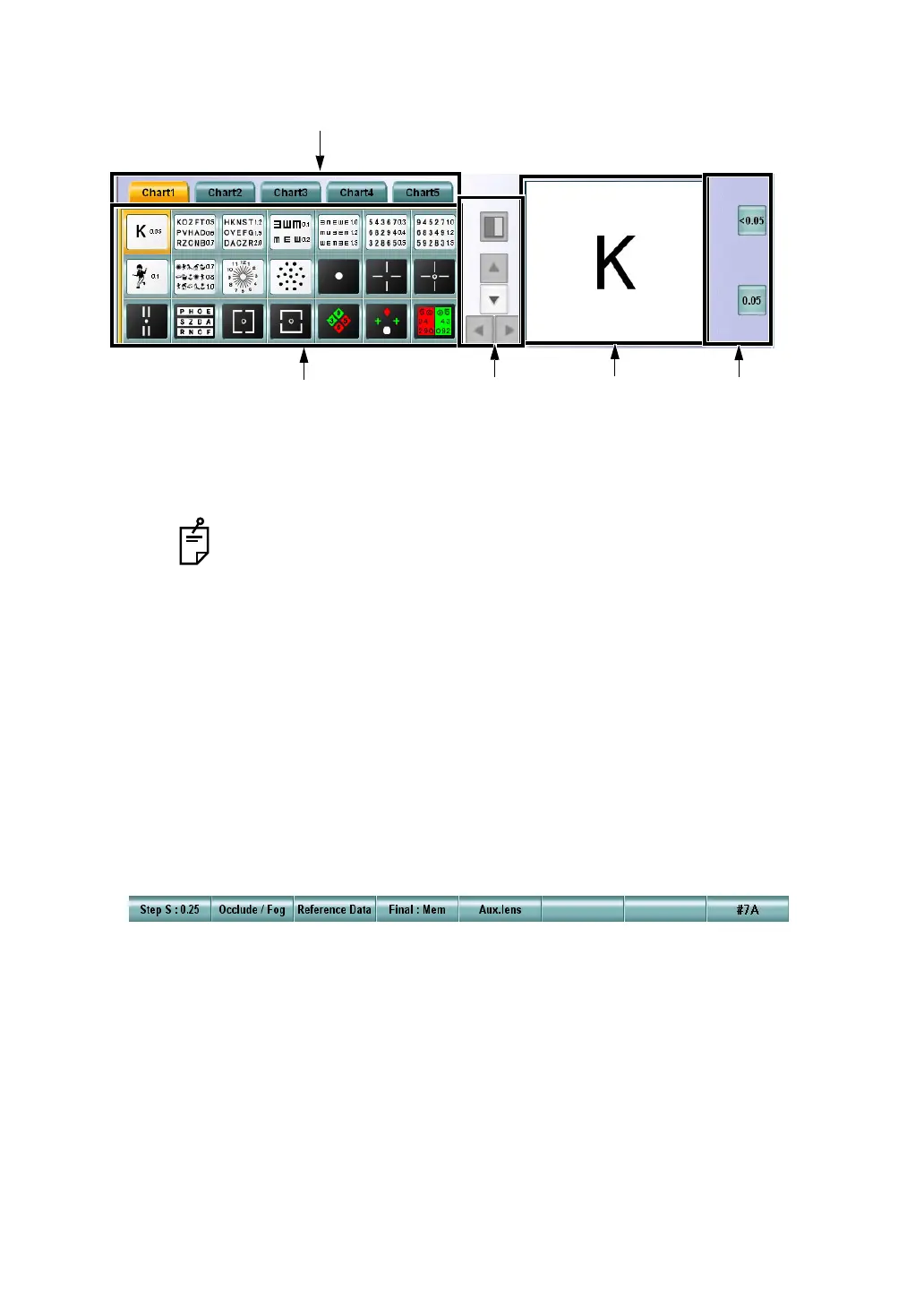

VISUAL ACUITY CHART OPERATION UNIT
(1) Chart page
Click the test chart icon. The selected test chart will be shown on the test chart check
display section and the test relevant to the icon will start.
The mouse operation mode and auxiliary lens used in the test will be set automatically.
Click the right mouse button for the test chart icon. Only the chart is changed
without changing the test.
(2) Chart page selector tab
The test chart icons can be registered for up to five pages. You can change the chart
page by clicking the tab.
(3) Test chart check display
The test chart icon selected on the chart page is also displayed in another larger win-
dow once it has been selected. For the operation of the visual acuity test icon, the
character mask can be enabled by directly clicking the test chart.
(4) Side button
Use these auxiliary buttons, to access the necessary functions for the chart or test.
FUNCTION BUTTON
The displayed buttons are automatically changed depending on the function.
(1)
(2)
(3) (4)(4)
