1. BEFORE USE
(3) Reference data
The objective data and lens data measured by the external devices are displayed for
comparison.

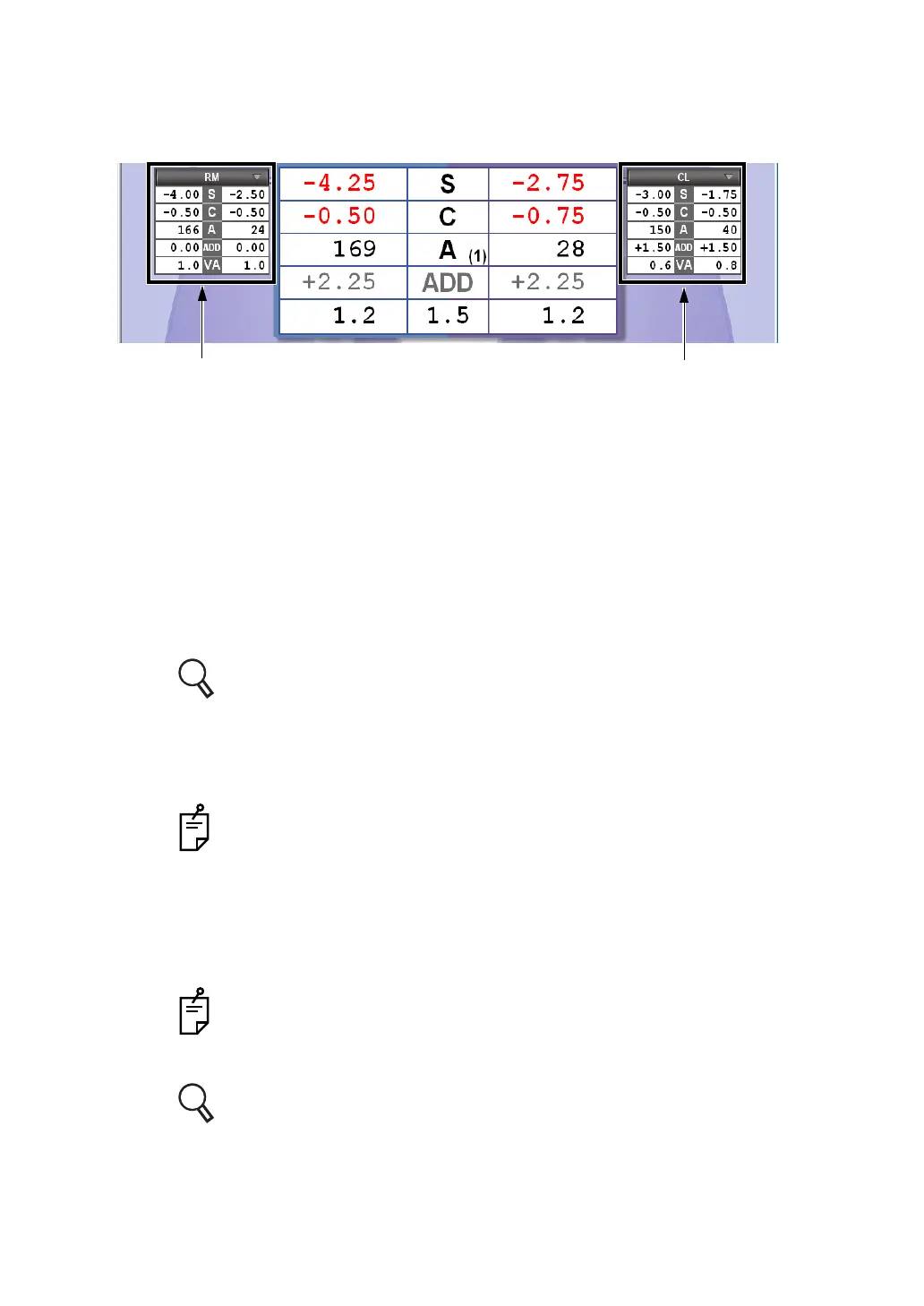

(3)-1 Reference data display area No.1
This data display area is used to compare or refer to data.
Click the title being requested, and the button list for RM Data or CL Data is dis-
played.
Click the item requested and the corresponding data will be displayed accord-
ingly.
(3)-2 Reference data display area No.2
The function is the same as "Reference data display area No.1".
(4) Mini Help
Displays a simple explanation about the current test.
You can select "Displayed" or "Not displayed" by [Settings]. Refer to "8.2.7
Screen settings" on P.192 for details.
(5) PD
Displays the PD value. When you fit the mouse cursor to the PD value on the test
screen, the value is highlighted. You can change the value by operating the mouse.
The status generated by this operation is not the same as when clicking the
[Adjust PD] button. The cornea illumination is not turned on and the cross lens
is not set in the measuring head.
(6) Auxiliary lens
Displays the status of the auxiliary lens set in the measuring head, the cross cylinder
lens or TOPCON cross lens during the cylinder test. In addition, for the lens having
the axis in the open status, you can check the cylinder axis.
Click the auxiliary lens on the test screen, and it is possible to change the
occlusion.
Click the right mouse button, and it is possible to change the occlusion type.
Refer to " CHANGING THE AUXILIARY LENS" on P.130 for changing the
auxiliary lens.
Refer to " SELECTING THE TYPE OF OCCLUSION" on P.131 for changing
the occlusion.
